- 9 -
2. SPECIFICATIONS
2.1 MODEL NUMBER:
Serial Nos. 160,000-189,999:
TT4816BV; TT5216BV;
Serial Nos. 160,000-219,999:
TT3615KC; TT3614KA; TT4814KA
Serial Nos. 160,000 & Higher:
TT4815KC; TT4817KA; TT5217KA
Serial Nos. 190,000 & Higher:
TT4815KA
Serial Nos. 220,000 & Higher:
TT3615KA, TT4817KAE
2.2 ENGINE
2.2.1 Engine Specifications: See your Engine Owner's Manual.
2.2.2 3600 RPM (No Load).
2.3 FUEL SYSTEM
2.3.1 Capacity: 5.0 gal.(18.9 L.)
2.3.2 Type of Fuel: Regular
unleaded
gasoline, 87 octane or higher. In countries
using the research method, it should be a 90 octane minimum.
2.3.3 Fuel Filter: Replaceable in-line
2.3.4 Fuel Shut-Off Valve: 1/4 turn
2.4 ELECTRICAL SYSTEM
(Electric start units only)
2.4.1 Charging System: Flywheel Alternator
2.4.2 Charging Capacity: 15 amps
2.4.3 Battery Type: BCI Group U1
2.4.4 Battery Voltage: 12 Volt; Polarity, negative ground
2.4.5 Fuses: Two 20 amp blade type
2.5 SAFETY INTERLOCK SYSTEM
Operator must have transmission in neutral, blade clutch disengaged, (and
OPC levers depressed for electric start) to start engine. Release of OPC levers
will cause the engine to stop if hydro transmission is
not
in neutral and/or blade
clutch is
engaged
.
2.6 STEERING/BRAKE CONTROL:
Fingertip drive control levers provide independent speed control, braking and
neutral to each drive wheel for moving forward or reverse, stopping and power
turning.

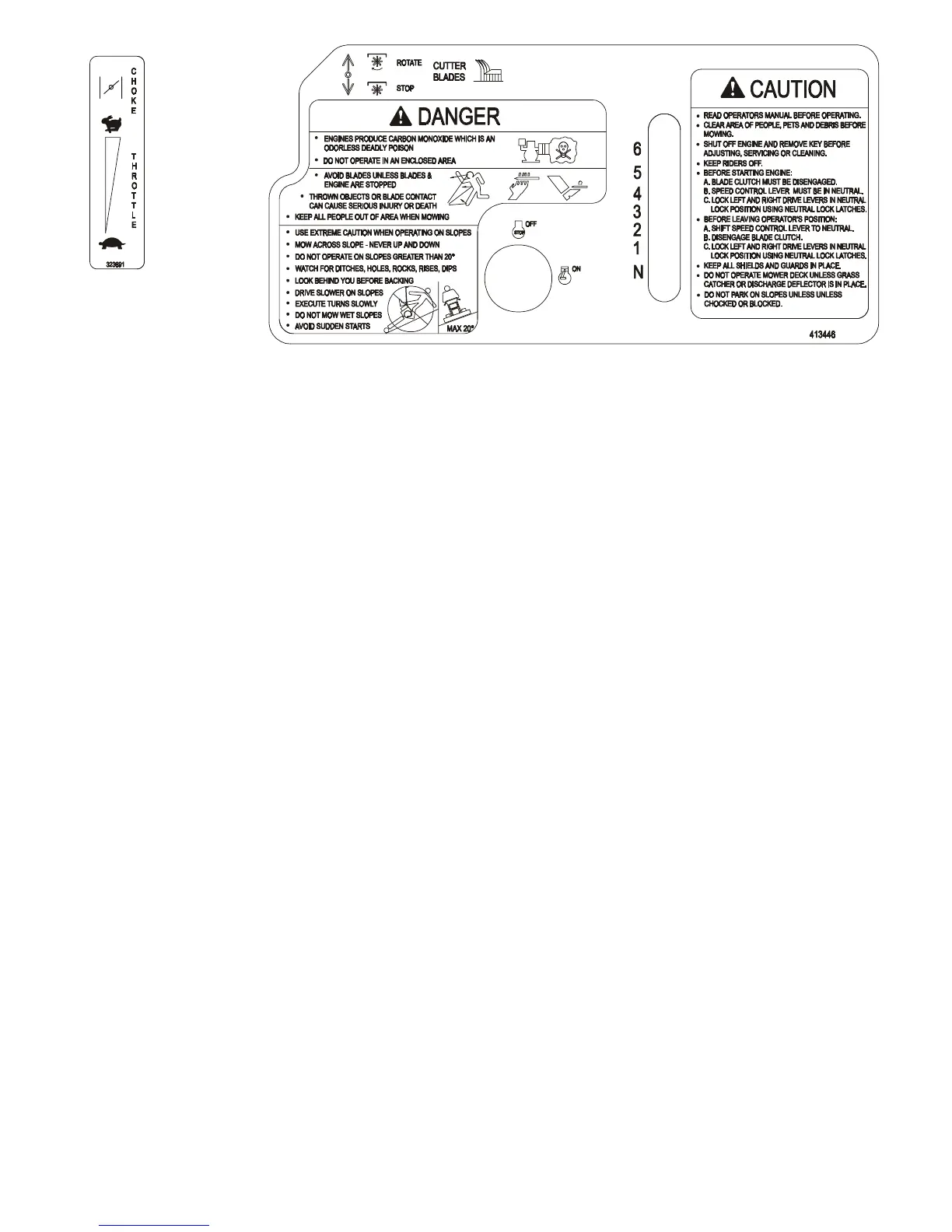

15 & 17 HP Kawasaki
PART NO. 323691
LOCATION: RH Side
Console
Serial Nos. 190,000 & Higher
15 & 17 HP Kawasaki (Manual Start)
PART NO. 413446
LOCATION: Console
