13
MONROC

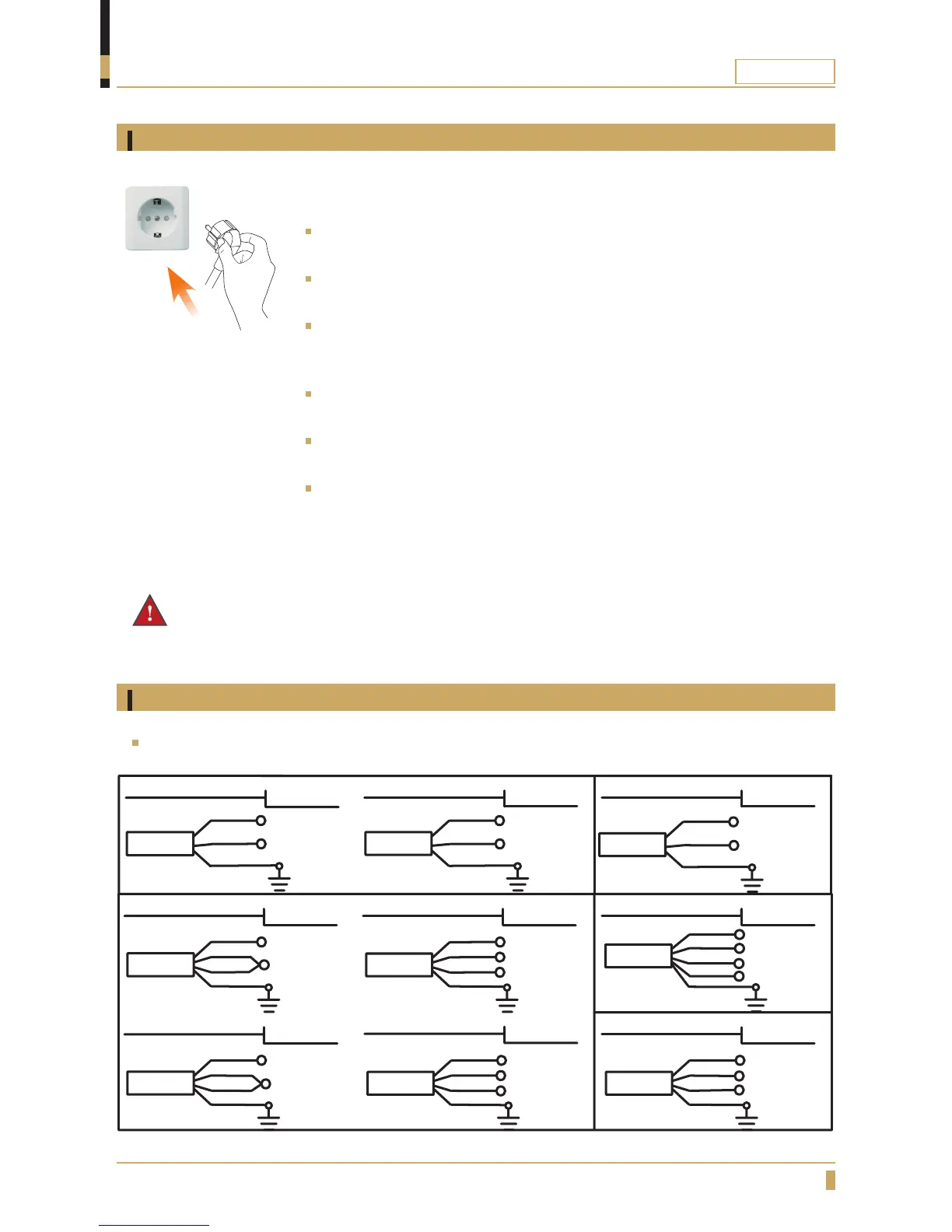

INSTALLATION
Electrical installation
The coffee machine should only be connected to the power supply by qualified
personnel. The following safety instructions should be followed at all times:
Check that the electrical specifications on the ratings plate match the
specifications of the power supply at the point of installation.
The coffee machine must be connected to an earthed socket that complies
with the regulations in force in the country of installation.
You should protect the electric line of the installation with a circuit breaker
switch appropriated for the power consumption of the machine, specified
on its ratings plate.
A residual current circuit breaker must be installed in accordance with the
characteristics of the area of the installation.
Check the characteristics, power rating of the system and that the diameter
of the cables are suitable for the power used by the machine.
Do not connect the coffee machine to the power supply via extension
boards, adapters or shared sockets.
The manufacturer will not be held liable for damage to persons, animals or
property resulting from incorrect installation of the coffee machine.
DANGER!
If the mains cable or plug is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid SERIOUS INJURY OR DEATH!
Connection types
Connect the machine as per the instructions on the ratings plate.
Machine: Supply
230Vac Ph+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
230Vac Ph+N
Machine: Supply
2Ph 230Vac
PHASE
PHASE
Supply hose
Blue
Brown
Yellow/Green
230Vac Ph+N
Machine: Supply
3Ph 230Vac
PHASE
Supply hose
Blue
Brown
Yellow/Green
230Vac 3Ph
Machine: Supply
230Vac Ph+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
2Ph+N
Black
Machine: Supply
2Ph 380Vac+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
2Ph+N
PHASE
Black
Machine: Supply
2Ph 230Vac
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
2Ph+N
Black
Machine: Supply
3Ph 230Vac
PHASE
Supply hose
Blue
Brown
Yellow/Green
2Ph+N
Black
PHASE
PHASE
Machine: Supply
125Vac Ph+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
125Vac Ph+N
Machine: Supply
3Ph 380Vac+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
380Vac 3Ph
Grey
Black
PHASE
PHASE
Black
PHASE
PHASE
