DisplayIconDescriptionsforEX655

1234 5 6
7
8
9
10
11
12 13 14 15 16 17
18



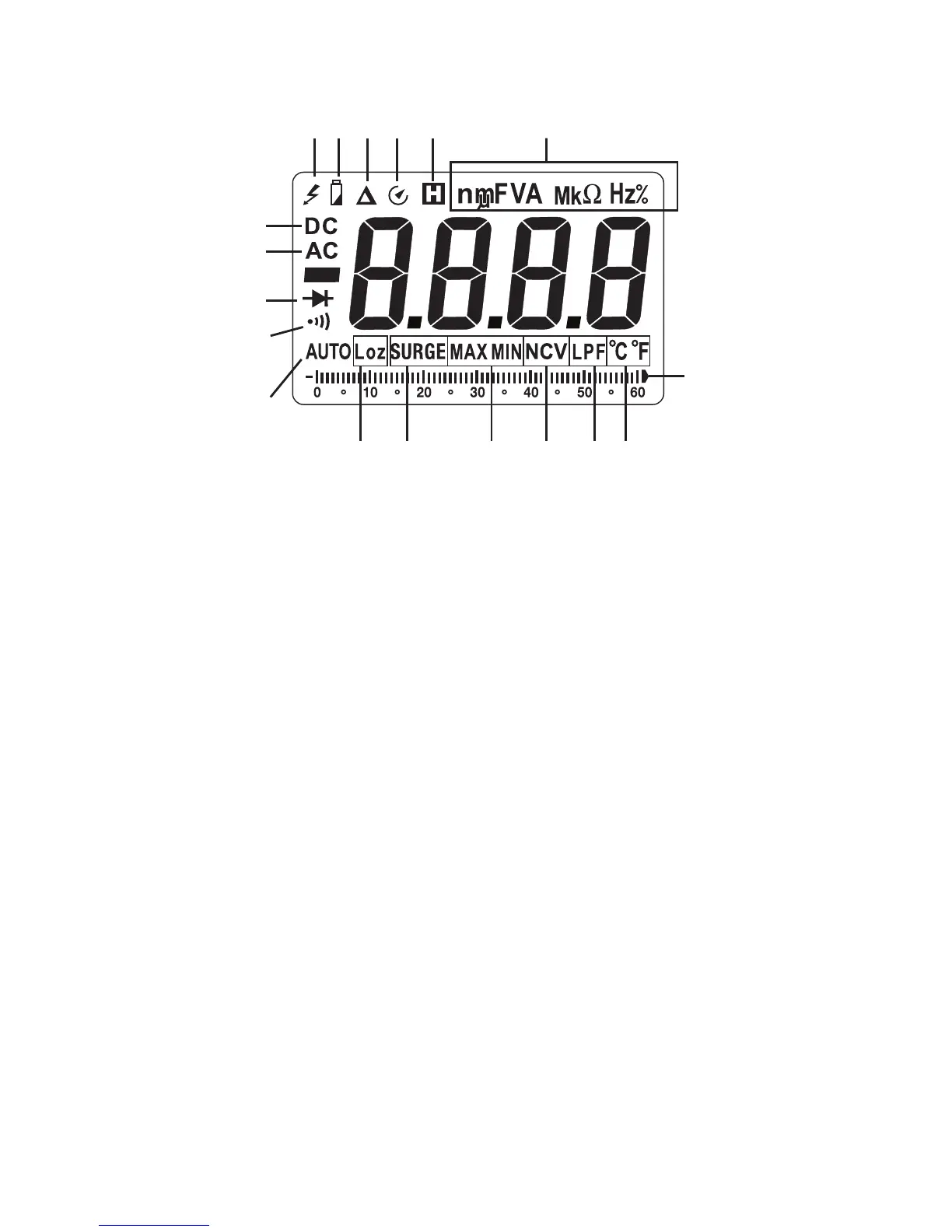

Fig3‐3EX655METERDISPLAY

1. Highvoltage
2. Batterystatus
3. Relativemode
4. Autopoweroff
5. Datahold
6. Unitsofmeasure
7. DirectCurrent
8. AlternatingCurrent
9. Diode
10. Continuity
11. Automaticrange
12. LowImpedancemode(LoZ)
13. InrushCurrent(Surge)
14. MaximumandMinimummemory
15. Non‐Contact
VoltageDetector
16. LowPassFilter(LPF)
17. Temperatureunits
18. Bargraph
