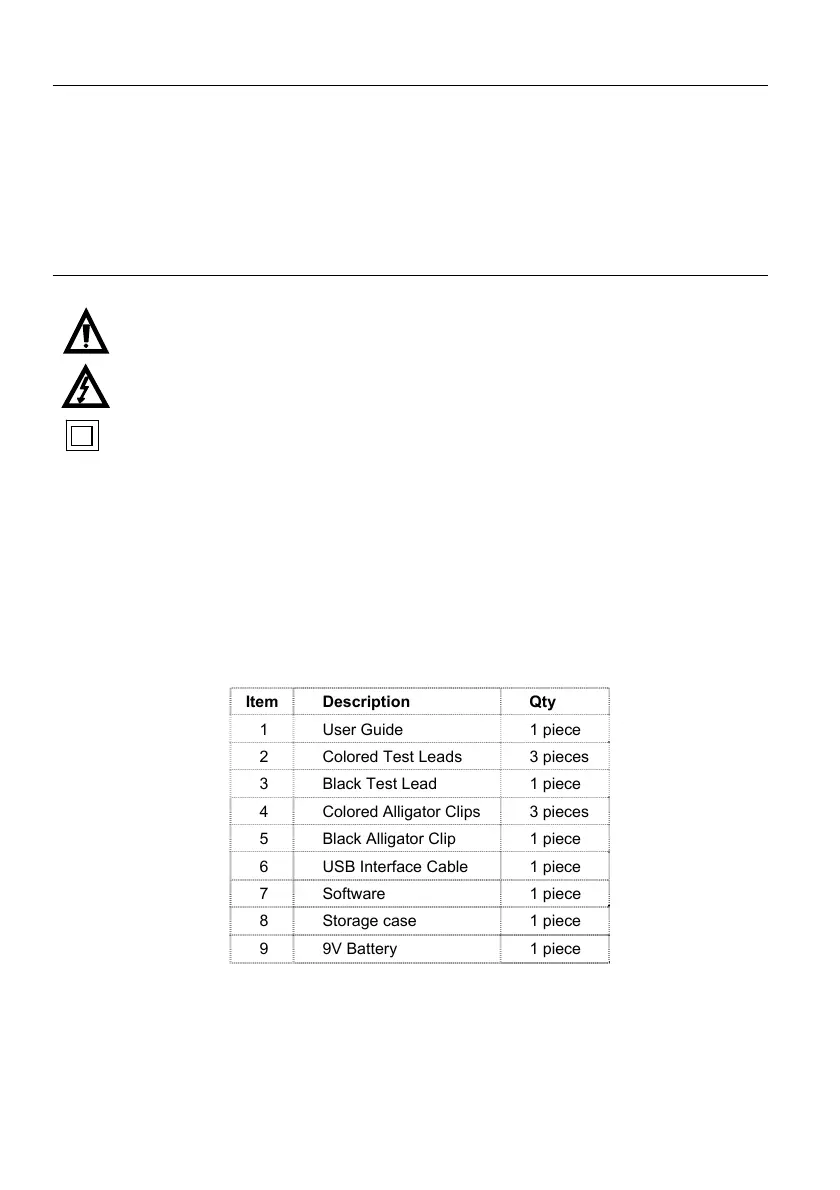

Introduction
Congratulations on your purchase of the Extech PQ2071 1/3-Phase CAT IV True RMS 1000A
Power Clamp Meter. The PQ2071 measures AC Current, Frequency, Temperature (Type K), and
Power (True Power, Apparent Power, Reactive Power, and Active Power). The PQ2071 also
includes a built-in non-contact Voltage Detector with LED alert. The USB PC interface offers storage
and recall (manually) of up to 99 sets of readings data. Proper use and care of this meter will
provide many years of reliable service. Please visit the Extech Instruments website
(www.extech.com) to check for the latest version of this User Guide and for Product Registration.
Safety
International Safety Symbols
This symbol, adjacent to another symbol or terminal, indicates the user must refer to the
manual for further information.
This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages
may be present
Double insulation
This User Guide includes information concerning safety and cautions. Please read the information
carefully and observe all of the Warnings and Notes.
To avoid electric shock or personal injury, read the “Safety Information” and “Rules for Safe
Operation” carefully before using the Meter.
This device is a three phase handheld digital power clamp meter which has both the features of a
digital current meter and also a power measurement meter.
Unpacking Inspection
Check that the following items were included in the packaging. Please report missing or damaged
items to the point of purchase.
Item Description Qty
1 User Guide 1 piece
2 Colored Test Leads 3 pieces
3 Black Test Lead 1 piece
4 Colored Alligator Clips 3 pieces
5 Black Alligator Clip 1 piece
6 USB Interface Cable 1 piece
7 Software 1 piece
8 Storage case 1 piece
9 9V Battery 1 piece
To Next Page
