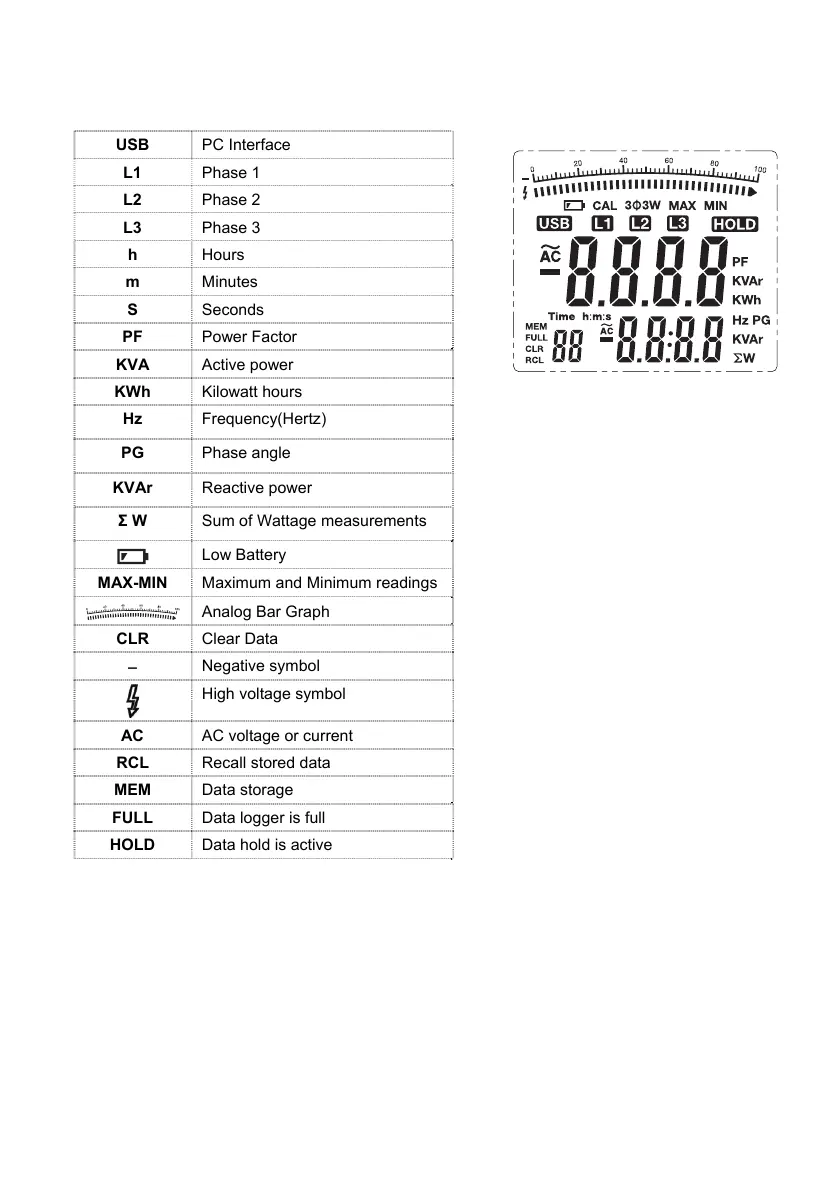

Display icons Description
USB PC Interface
L1 Phase 1
L2 Phase 2
L3 Phase 3
h Hours
m Minutes
S Seconds
PF Power Factor
KVA Active power
KWh Kilowatt hours
Hz Frequency(Hertz)
PG Phase angle
KVAr Reactive power
Σ W Sum of Wattage measurements
Low Battery
MAX-MIN Maximum and Minimum readings
Analog Bar Graph
CLR Clear Data
 Negative symbol
High voltage symbol
AC AC voltage or current
RCL Recall stored data
MEM Data storage
FULL Data logger is full
HOLD Data hold is active
Figure 2
