HOT AIR DUCTING
17
Chapter 5
HOT AIR DUCTING

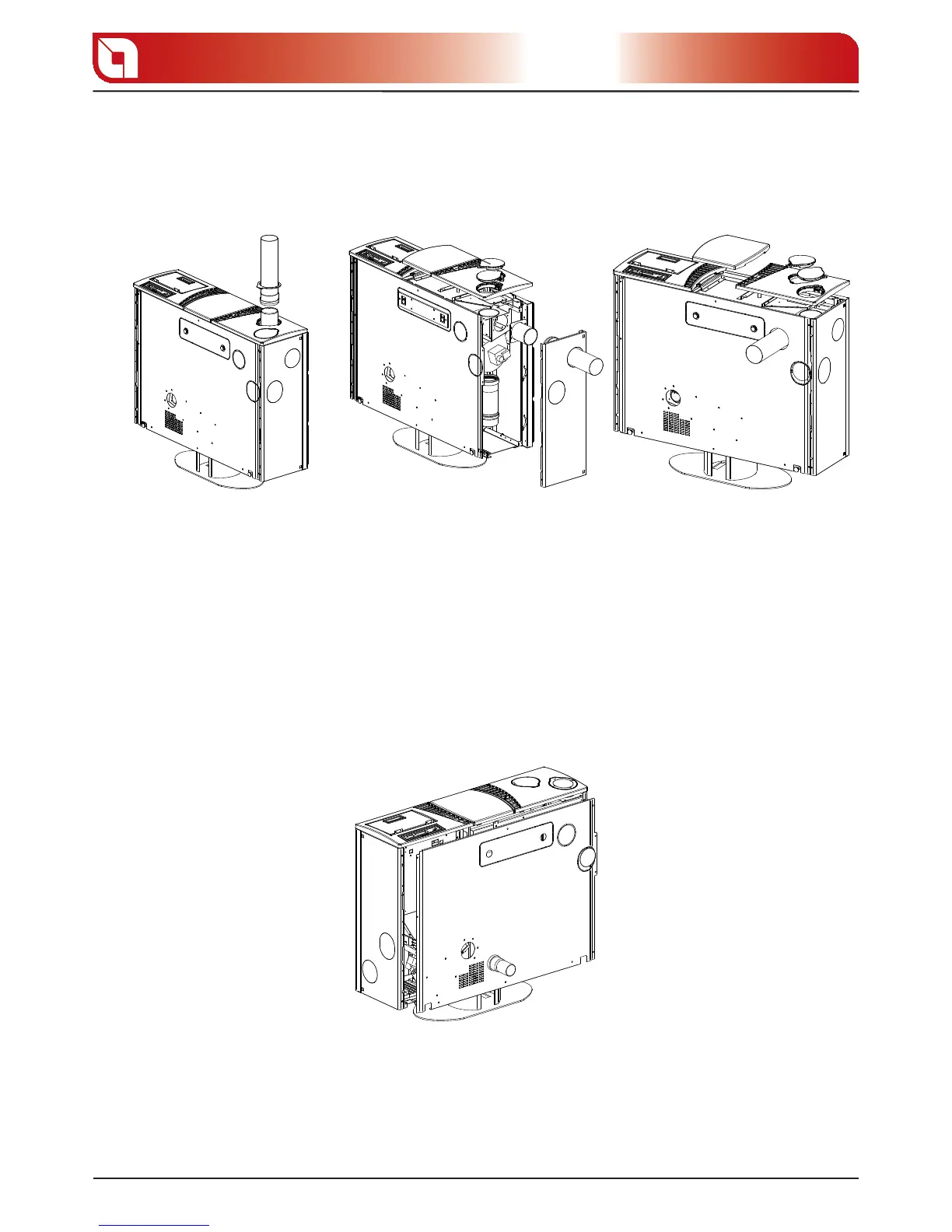

The  gure represents as an example the di erent hot air ducting modalities.
The di erent ducting modalities must be discussed with the technician who will see to the installation.
It is recommended not to exceed the 2 metres in length and to use insulating material to avoid heat
losses.
ELISIR AIR INLET INSTALLATION
To install the air inlet we recommend reading the attached folder.
 gure 5.1
 gure 5.2
 gure 5.3
 gure 5.4
