MAX300-RTG: Installation Manual Hardware Installation
34

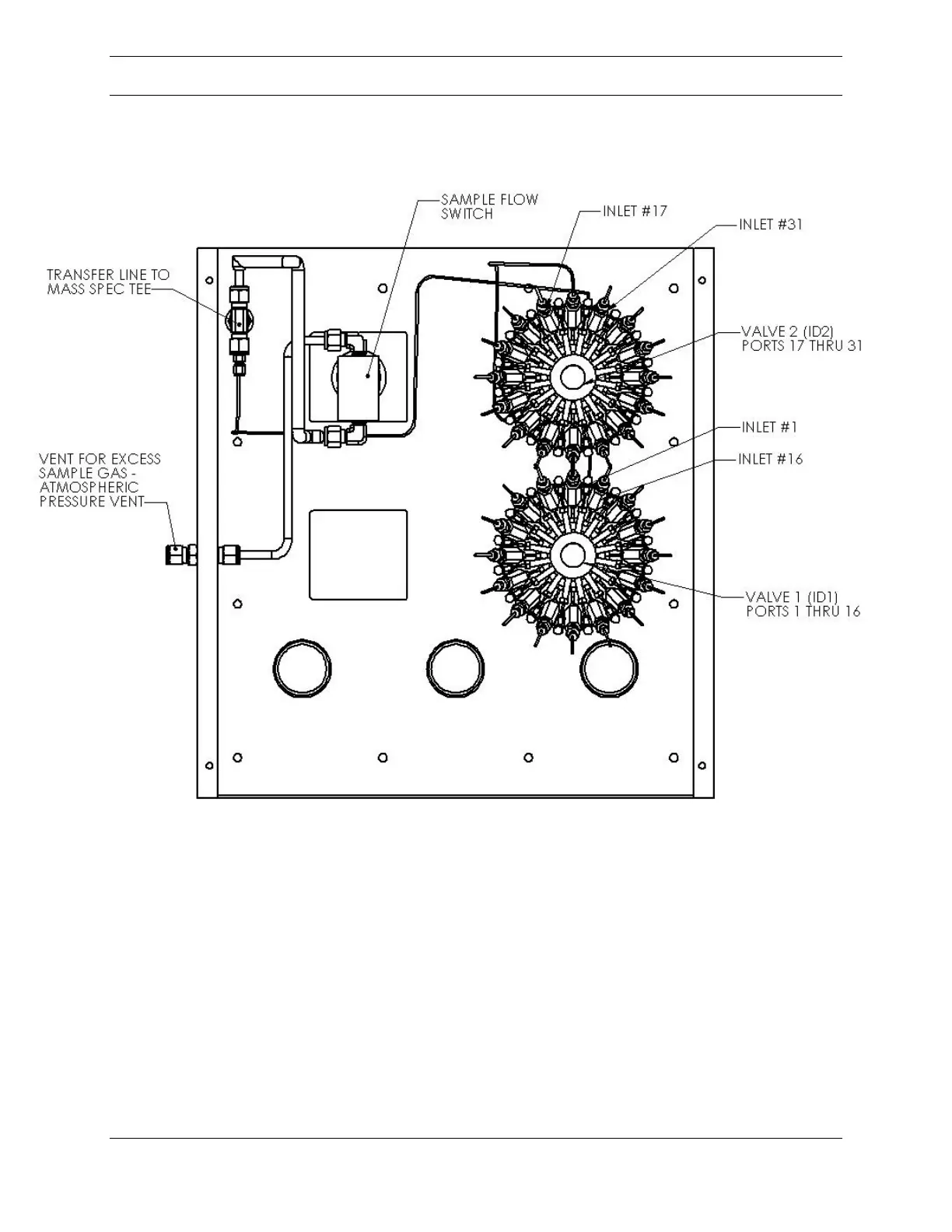

Figure 14: Diagram of 31 port rotary valve inlet
The common outlet of valve 1 is plumbed to the inlet port #1 of valve 2. The common
outlet of valve 2 is plumbed to the transfer line tee.
