MAX300-RTG: Installation Manual Hardware Installation
35

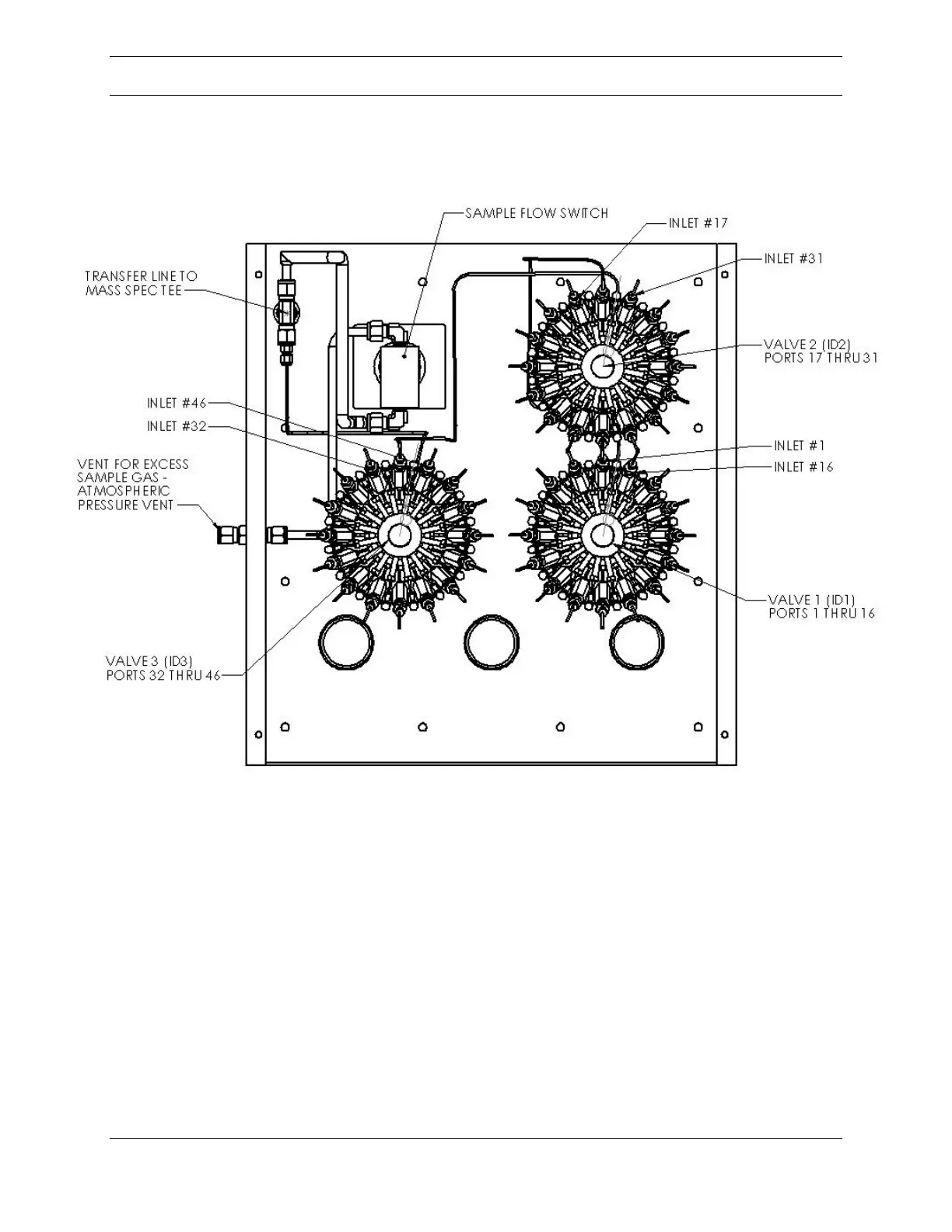

Figure 15: Diagram of 46 port rotary valve inlet
The common outlet of valve 1 is plumbed to inlet port #1 of valve 2. The common outlet
of valve 2 is plumbed to inlet port #1 of valve 3. The common outlet of valve 3 is plumbed
to the transfer line tee.
