260 Summit 200 Series Switch Installation and User Guide
Using ExtremeWare Vista on the Summit 200

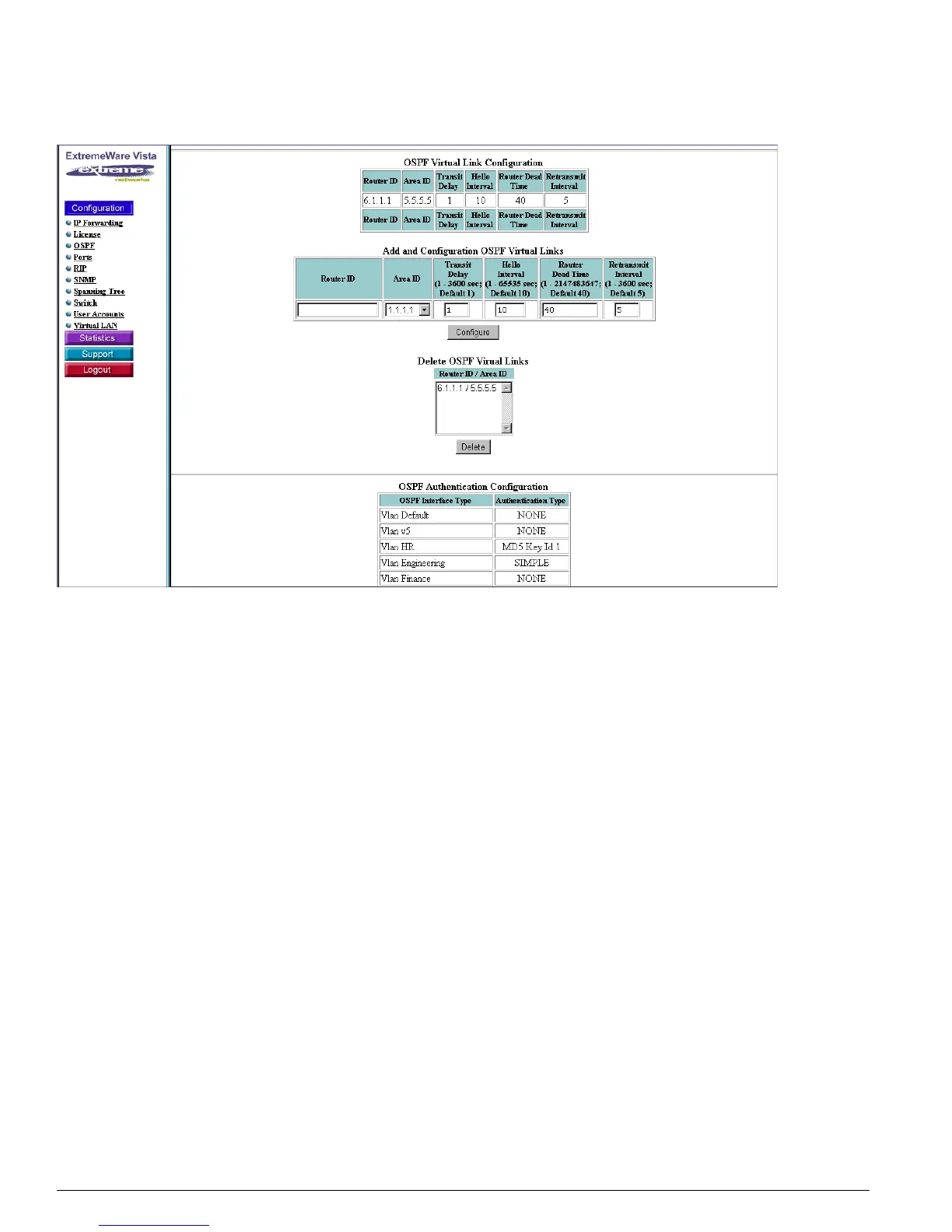

Figure 52: OSPF Virtual Links
Configure OSPF Authentication
The final section in the OSPF configuration window allows you to configure an interface. This section is
shown at the bottom of Figure 53. The table displays the interface and whether an interface type is
currently configured. The configuration box allows you to specify a simple authentication password of
up to eight characters, or a Message Digest 5 (MD5) key for the interface. If you choose MD5, select a
numerical ID between 0 and 255, then select a key value between the range of 0 to 65,535.
