WS-AP3825 Overview
The WS-AP3825 access point is available in two models:
• WS-AP3825i contains six internal single-band antennas
• WS-AP3825e contains six external RSMA connectors for optional external antennas, for
greater range and coverage versatility
Figure 1 shows the front view of the WS-AP3825i and Figure 2 shows the front view of the
WS-AP3825e. Both figures also show the location of the LAN ports, console port, external
power supply connector, and reset switch.
Figure 3 shows the back view of the WS-AP3825e. The back panel is the same for both
models, but there are no external antenna RSMA connectors on the WS-AP3825i.
Figure 4 illustrates the WS-AP3825 LEDs.

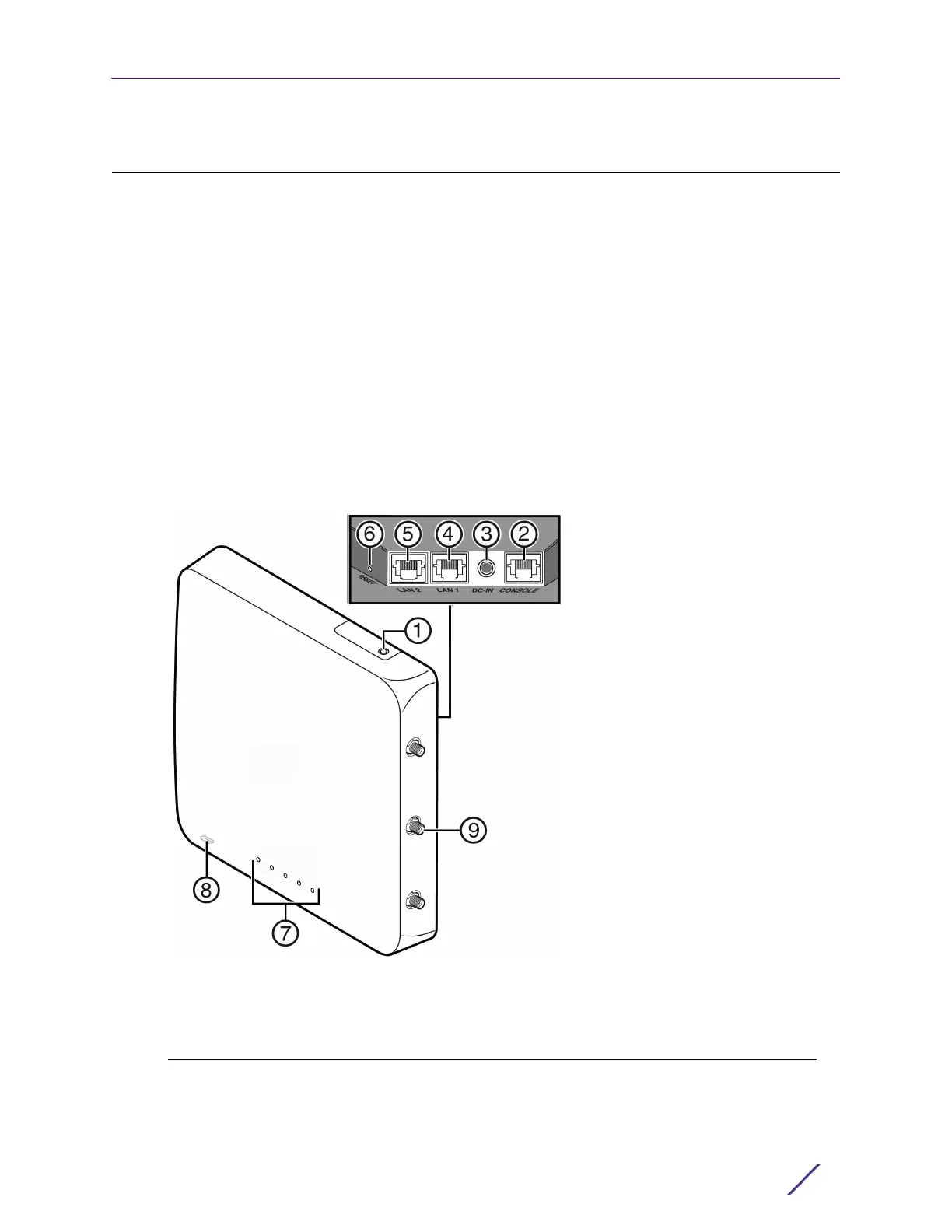

Figure 1 Extreme Networks Wireless AP3825i Front View
1 (not used) 6 Reset switch
2 Console port 7 LEDs (See
Figure 4 for details)
3 External power supply port 8 (bottom) Slot for Kensington lock
4 LAN port 1
5 LAN port 2
