Installing slides in a 300mm-600mm equipment rack
Use the following procedure to install your switch in an equipment rack with a depth between
300mm and 600mm.
Before you begin
Note:
The Slide Rack Mount Kit is fairly complex due to its versatile design. To make your installation
easier, read the Inventory of slide components on page 41 section to familiarize yourself with
the slide components and features.
Procedure
1. Disconnect the power cord from the switch.

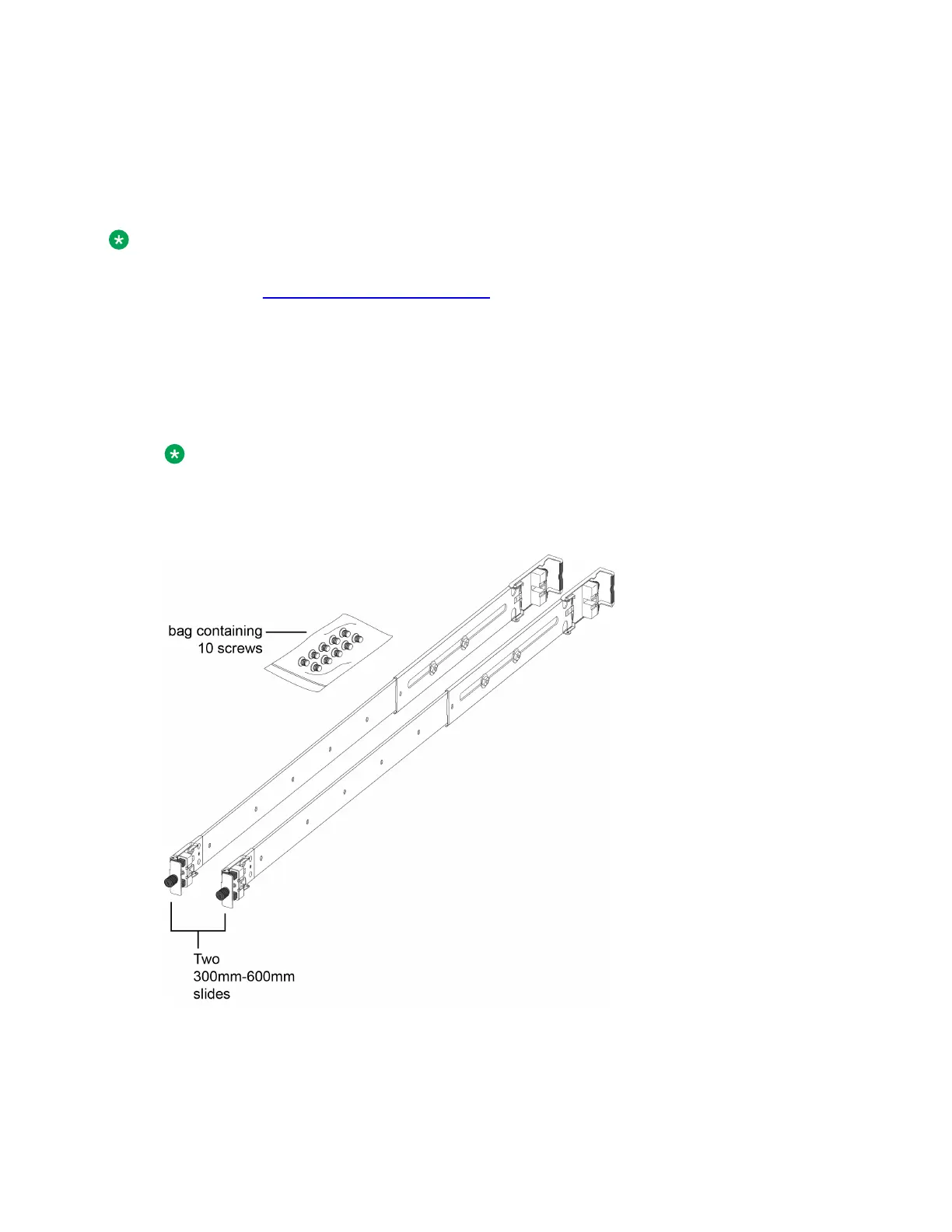

2. Open the shipping carton and remove the bag of screws and the two slides used in
300mm-600mm racks.
Note:
The 300mm-600mm slides are the default configuration. The remaining parts in the
carton (including the bag of screws) are for installing the chassis in a 600mm-900mm.
Save them for potential future use.
3. Use the following steps to detach the chassis rail from the slide’s rack rail:
a. Loosen the thumbscrew lock on the front of the rail.
Installing the switch in an equipment rack
March 2020 Installing the VSP 7200 Series 49
