Removing transceivers
Remove transceivers by performing this procedure.
1. Disconnect the network fiber cable from the transceiver.

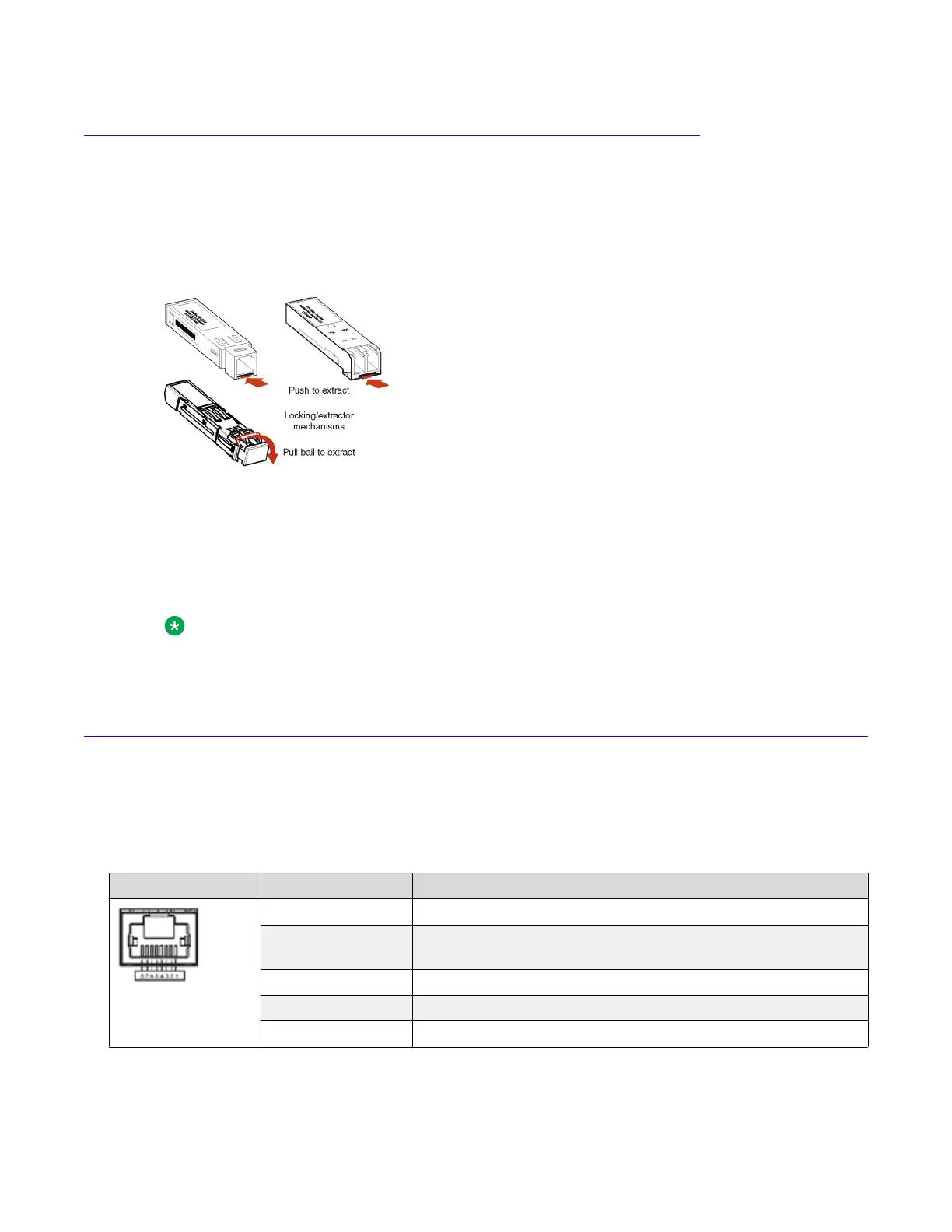

2. Use the locking mechanism on the transceiver to release it. The locking mechanism varies
from model to model as illustrated below.
3. Slide the transceiver from the port.
4. If the transceiver does not slide easily from the port, use a gentle side-to-side rocking motion
while firmly pulling the transceiver from the port.
5. Attach a dust cover over the fiber-optic bores and store the transceiver in a safe place until
you need it.
Note:
Discard transceivers in accordance with the proper laws and regulations.
Console port pin assignments
The following section describes the console pin assignments for the RJ-45 connectors in the VSP
7200 Series.
Table 21: Console port pin assignments
Connector
Pin Number Signal
1 Ready to send (RTS) — optional
2 Data terminal ready (DTR) — optional, can swap or link with pin
8
3 Transmit data (TXD) — mandatory
4 Carrier detect (DCD) — optional
5 Ground (GND) — mandatory
Table continues…
Installing the Virtual Services Platform 7200 Series
March 2020 Installing the VSP 7200 Series 74
