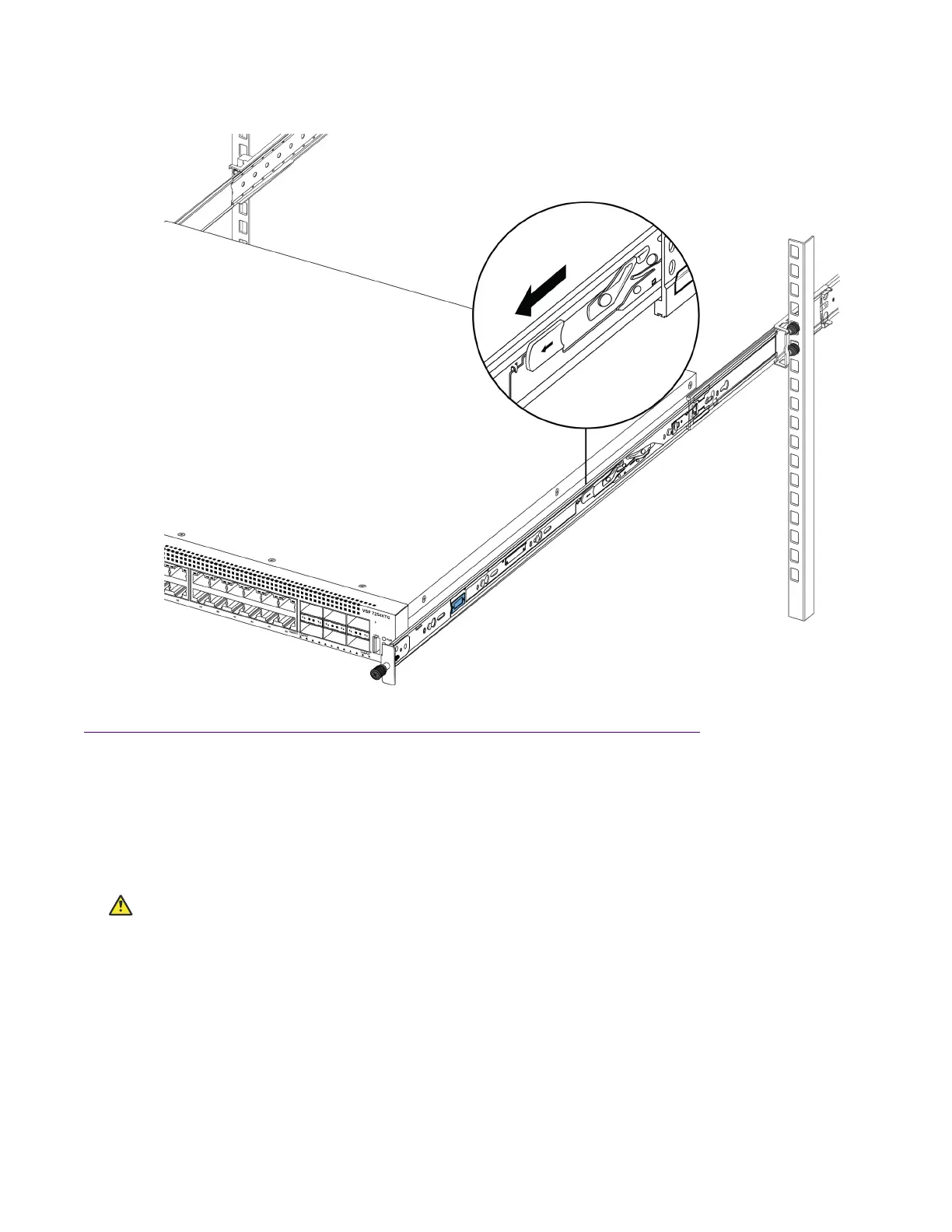

pulls the chassis out of the rack.
Using the supplied brackets
This procedure describes how to install the switch in an equipment rack using the supplied brackets.
The brackets that come with the chassis are for mounting the unit in a standard 19–inch rack. We
recommend that you mount a tray into the rack and set the chassis upon the tray. The brackets
secure the chassis and prevent it from sliding off the tray during vibration or when inserting or
extracting transceivers.
Caution:
Do not mount the chassis in a rack without using a customer-supplied tray under the chassis.
The chassis weight will cause damage to a rack, especially in an environment with vibration or
in an earthquake prone area.
Procedure
1. Disconnect the power cord from the switch.
Installing the switch in an equipment rack
March 2020 Installing the VSP 7200 Series 71
