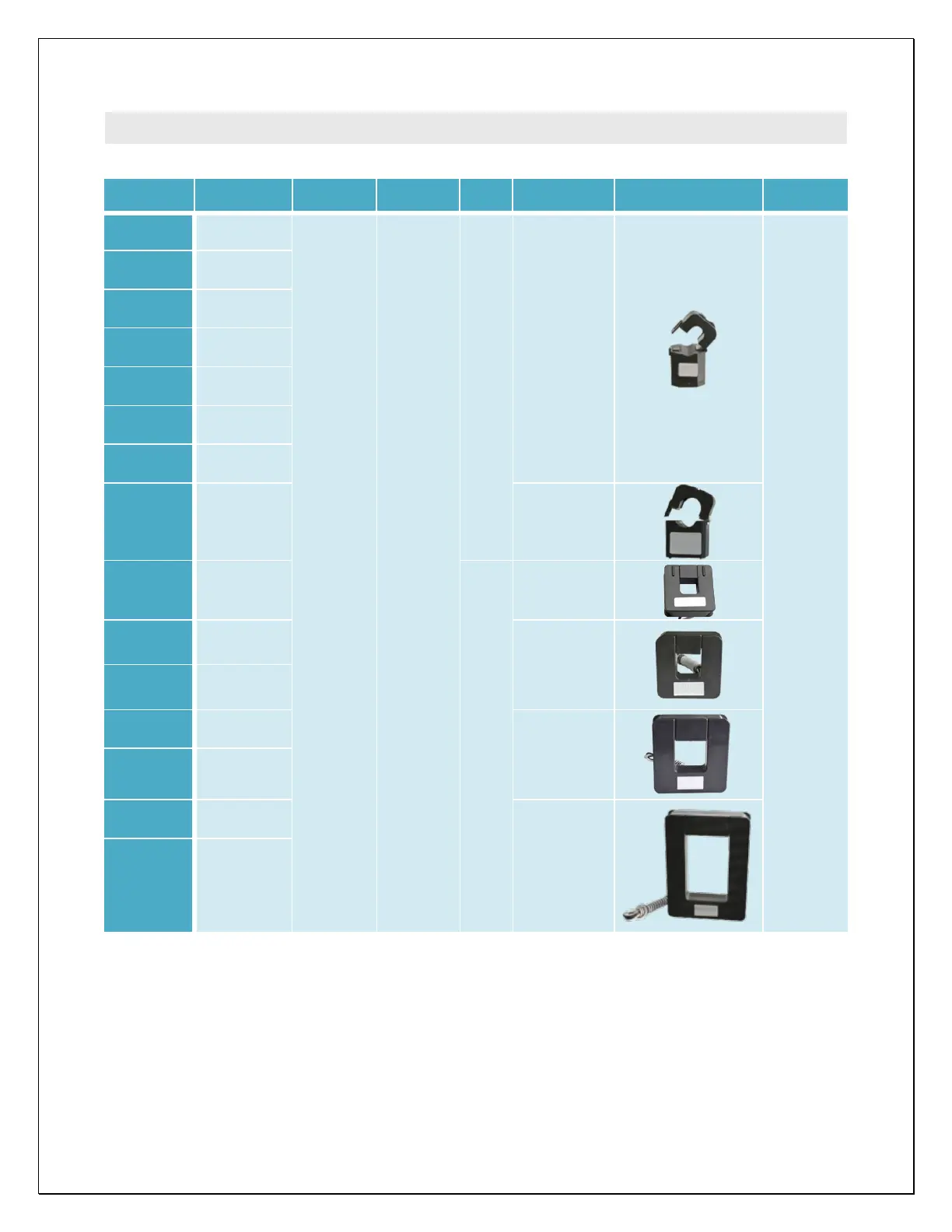

SENSOR SPECIFICATIONS (AVAILABLE SUBSTITUTES)
Sensor Input Output Accuracy Core Opening
Cable
Length
5A
(XH-SCT-T06-5)
0 to 5Aac
250V 50/60Hz
0 to
0.333Vac
±1%
Typical
1
Ferrite
6.0 mm
(0.24 in)
2500 mm
(98 in)
10A
(XH-SCT-T06-
10A)
0 to 10Aac
250V 50/60Hz
15A
(XH-SCT-T06-
15A)
0 to 15Aac
250V 50/60Hz
20A
(XH-SCT-T06-
20A)
0 to 20Aac
250V 50/60Hz
30A
(XH-SCT-T06-
30A)
0 to 30Aac
250V 50/60Hz
40A
(XH-SCT-T06-
40A)
0 to 40Aac
250V 50/60Hz
60A
(XH-SCT-T06-
60A)
0 to 60Aac
250V 50/60Hz
100A
(XH-SCT-T18-
100A)
0 to 100Aac
600V 50/60Hz
18.0 mm
(0.71 in)
200A
(XH-SCT-0750-
200)
0 to 200Aac
600V 50/60Hz
Steel
19 x 19 mm
(0.75 x 0.75 in)
400A
(XH-SCT-1250-
400A)
0 to 400Aac
600V 50/60Hz
31 x 31 mm
(1.25 x 1.25 in)
600A
(XH-SCT-1250-
600A)
0 to 600Aac
600V 50/60Hz
800A
(XH-SCT-2000-
800A)
0 to 800Aac
600V 50/60Hz
51 x 51 mm
(2.0 x 2.0 in)
1200A
(XH-SCT-2000-
1200A)
0 to 1200Aac
600V 50/60Hz
2000A
(XH-SCT-3000-
2000A)
0 to 2000Aac
600V 50/60Hz
76 x 127 mm
(3.0 x 5.0 in)
3000A
(XH-SCT-3000-
3000A)
0 to 3000Aac
600V 50/60Hz
1
Accuracy noted is for sensor readings at 10% to 90% of rated current. This product also requires a continuous internet connection.
