Owner’s Guide
76
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
MAINTENANCE

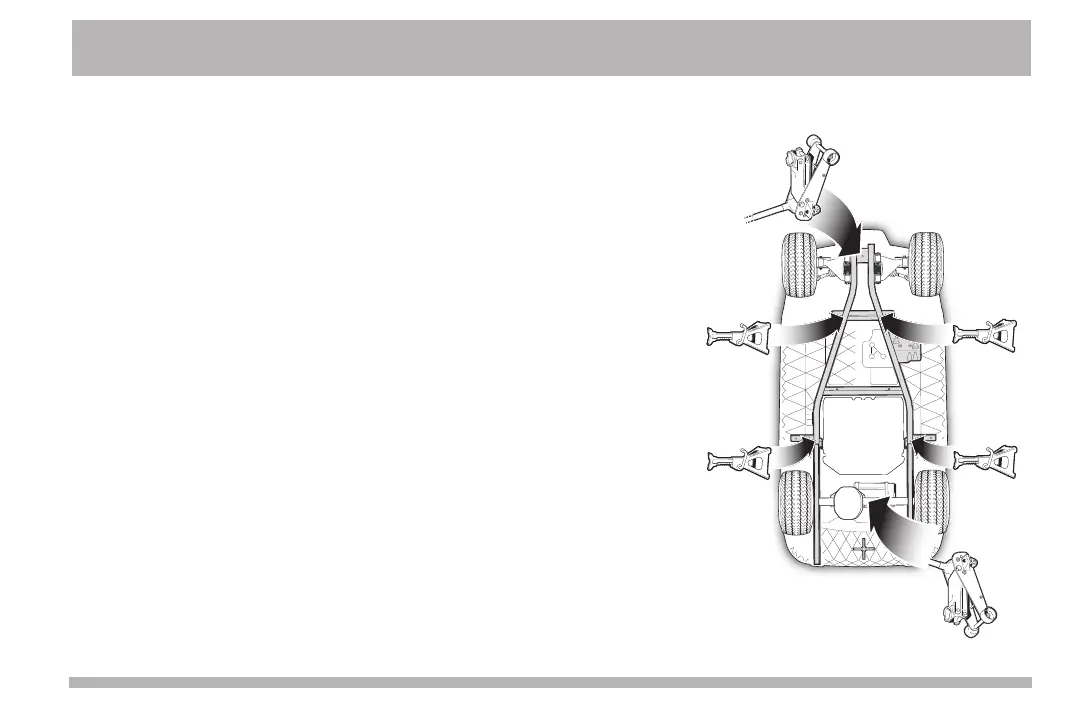

How to lift the rear of the vehicle only:
1. Install wheel chocks in front and behind each front wheel.
2. Center the jack under the rear axle tube next to the differential
housing.
3. Lift the vehicle enough to place two jack stands under the frame
where the leaf spring mounting brackets are welded to the frame.
4. Lower the jack and test the stability of the vehicle on the two
jack stands.
How to lift the front of the vehicle only:
1. Install the wheel chocks in front and behind each rear wheel.
2. Place the jack under the center front just behind the bumper.
3. Lift the vehicle enough to place two jack stands under the
frame where the instrument panel support is attached to the
frame.
4. Lower the jack and test the stability of the vehicle on the two
jack stands.
Lower the vehicle:
1. Lift the vehicle enough to remove the jack stands.
2. Carefully lower the vehicle to the ground with the jack.

Ezgo 2Five Specifications

General

Seating Capacity	4
Drive Train	Rear-wheel drive
Category	Golf Cars
Power Source	Electric
Lights	LED headlights, taillights, and brake lights
Motor	AC induction motor
Brakes	Hydraulic Disc
Suspension	Independent front suspension with leaf spring rear suspension
Batteries	Six 8V deep cycle
Frame	Welded Steel
Instrumentation	Digital display
Mirrors	Side Mirrors
Safety Features	Seat belts, horn, and reflectors
Charger	On-Board Charger
Ground Clearance	4.5 inches
Top Speed	25 mph
