Replacing DC Power Supplies
Platform Guide: 6900 and 8900 8 - 3
About the DC power supply and wiring block

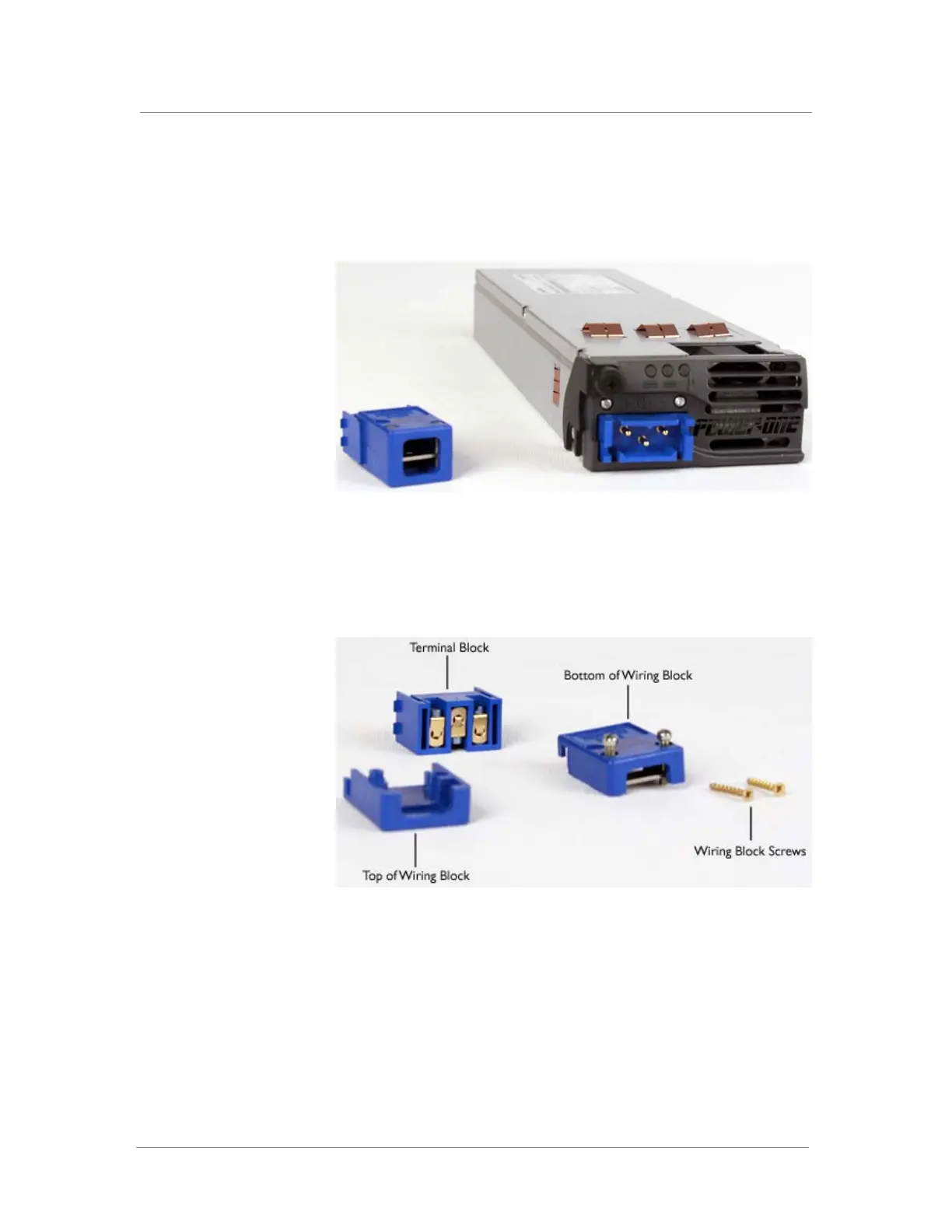

Figure 8.1 shows the DC power supply and the DC wiring block for the
6900/8900 platform.
Figure 8.1 The 6900/8900 Platform DC power supply and wiring block
Figure 8.2 shows the individual components of the DC wiring block for the
6900/8900 platform.
Figure 8.2 DC wiring block components
