11.2. 2 LEAVES
The “2 LEAVES” function makes it possible to manage two opposing
doors with a synchronised movement and preset delay angles
(these cannot be modified).

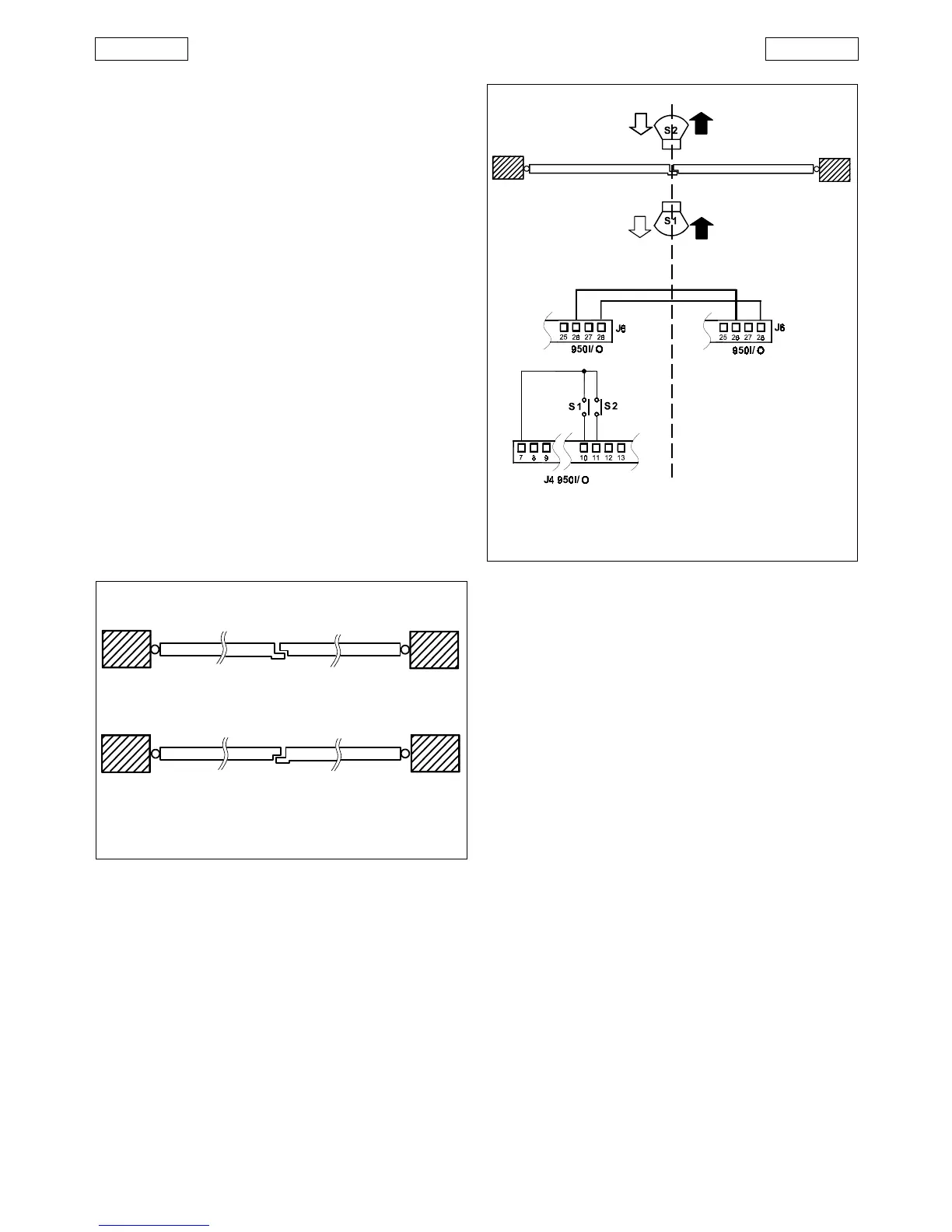

The leaf controlled by the master automated system (see fig. 30)
is the first to start the opening movement and, when it has reached
the opening angle preset for leaf delay, the slave leaf begins its
movement too.
Likewise, when closing, the master begins to move only when the
slave has reached the closing angle preset for leaf delay.
If one of the automated systems detects an obstacle, the
movement of both leaves is immediately reversed.
The partial opening function enables control of total opening of
the master only.
The operating functions must be set on the master automated
system only (or on the KP-Controller if connected).
•Make the connections between the 950I/O control unit of
the two automated systems as shown in fig. 31.
•Connect all sensors and pulse generators to the master
only.
•Program the following functions (see advanced
programming):
- “2 LEAVES” active on both doors;
- Select the “MASTER” option for the door due to begin the
opening movement first, and select “SLAVE” for the other
door.
- Set the same motion parameters on the two automated
systems;
- If you wish to disconnect the KP-Controller from the slave
door, you have to set function “KEEP SETTINGS” to ON;
Master Slave
Slave Master
Fig. 30
Fig. 31
