FAAC 950N - Application Limits; Leaf Weight, Length, and Doorpost Depth

950N 13 732708 - Rev. F
a
i
h
d
f
k
j
g
e
c
b
l
m
e
n
ENGLISH

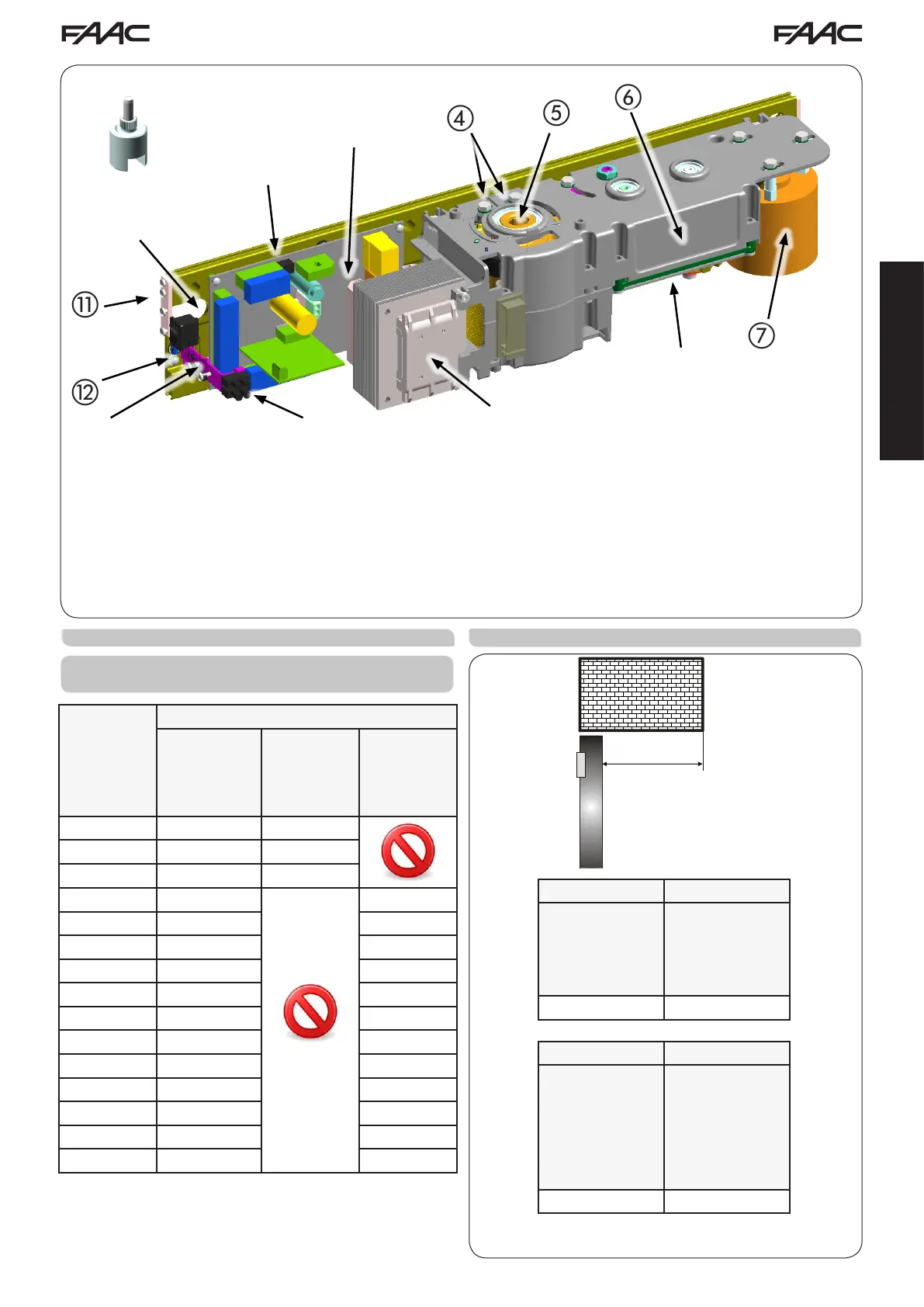

1. Cable routing holes
2. Support prole
3. 950 I/O unit
4. Mechanical stops adjustment
5. Motion transmission shaft coupling
6. Drive unit and return spring
7. Electric motor
8. 950 MPS programming unit
9. Transformer
10. Mains power supply terminal board
11. Housing securing bracket
12. Earthing terminal
13. Power supply cable securing terminal
14. Extension coupling (standard height 20 mm; 50 or
80 mm optional)
3 APPLICATION LIMITS
LEAF
LENGTH
(mm)
MAX LEAF WEIGHT (Kg)
ARTICULA-
TED PUSH
ARM
SLIDING
ARM
L=330 mm
SLIDING
ARM
L=430 mm
700 367 286
750 320 249
800 281 219
850 249 194
900 222 173
950 199 155
1000 180 140
1050 163 127
1100 149 116
1150 136 106
1200 125 97
1250 115 90
1300 107 83
1350 99 77
1400 92 71
MAXIMUM
DOORPOST
DEPTH
(mm)
3.1 APPLICATION LIMITS DEPENDING ON LEAF WEIGHT
AND LENGTH
3.2 MAXIMUM DOORPOST DEPTH
TABLE A TABLE B
ARTICULATED
ARM
Outward
opening
ARTICULATED
ARM
Inward
opening
0 - 250 mm 0 mm
Fig.1
Fig.2
TABLE C TABLE D
SLIDING
ARM
L=430 mm
Inward
opening
SLIDING
ARM
L=330 mm
Inward
opening
0 - 160 mm 0-160 mm
