FAAC E024S - CONTROL UNIT E024 S fitted on 391; WARNINGS E024 S FITTED ON 391; LAYOUT AND CONNECTIONS E024 S FITTED ON 391

E024S 6 732642 - Rev. F
~
=
=
=
=
1 WARNINGS E024S FITTED ON 391
Before attempting any work on the control unit (connections, maintenance), always turn off power.
- Install, upstream of the system, a differential thermal breaker with adequate tripping threshold,
- Always separate power cables from control and safety cables (push-button, receiver, photocells, etc.).
- To avoid any electrical disturbance, use separate sheaths or a shielded cable (with the shield earthed).
CONTROL UNIT E024S fitted on 391

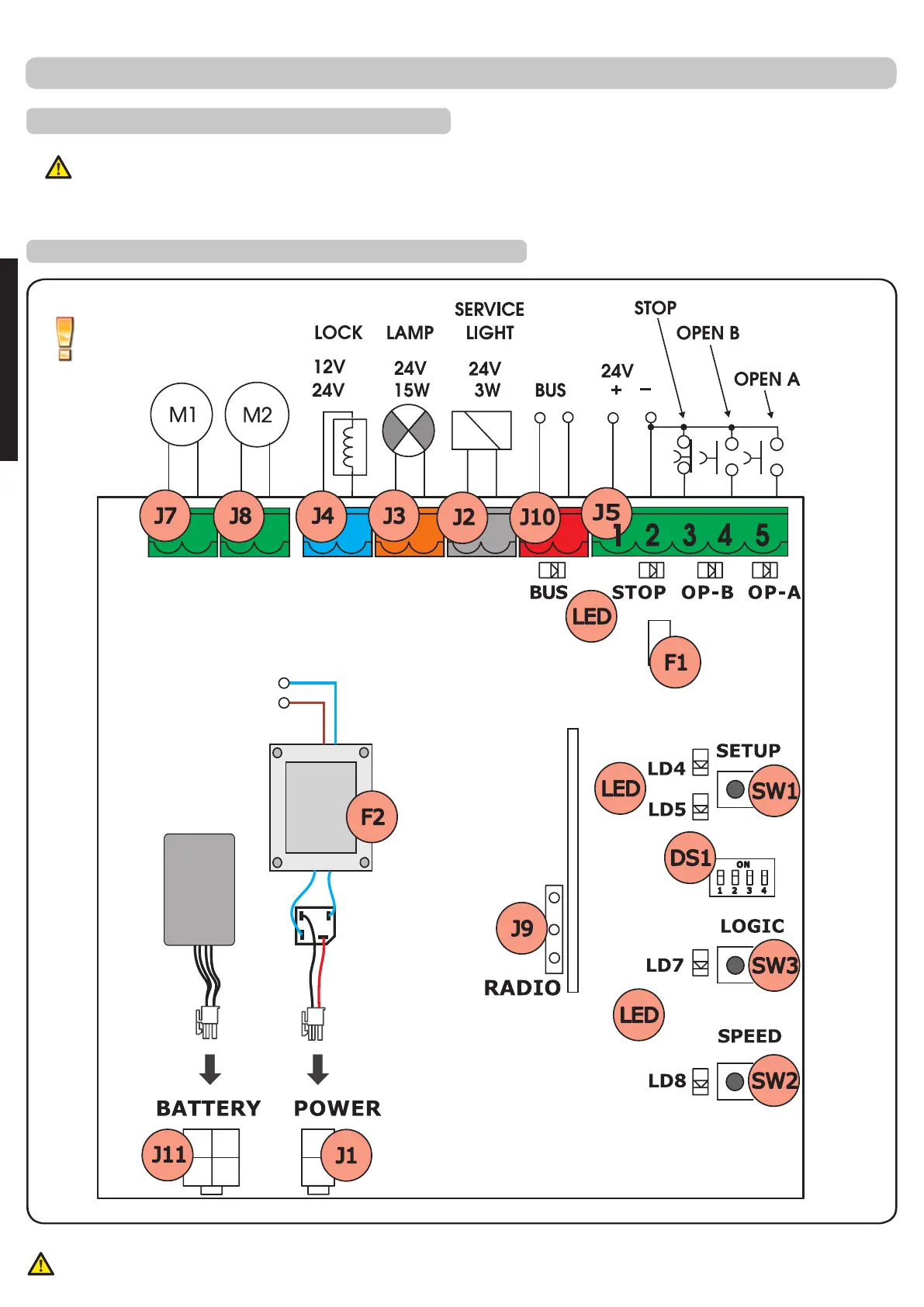

2 LAYOUT AND CONNECTIONS E024S FITTED ON 391
(PARTIALOPENING)
(TOTALOPENING)
230 V~ 50HZ
or
115 V~ 60Hz *
1
*
1
THE POWER SUPPLY IS RELATED TO THE E024S PURCHASED VERSION.
Fig.1B
Motorsconnection
2x2.5 mm ² / AVG 12
for motor (minimum)
(Max. length 20 m)
ENGLISH
