Factory Cat Pilot - Touch Screen Zone Operation (Optional)

- 12 - FC-RIDERS-V2-OP-EN v22.235
The touch screen is designed to be programmed to three specific
zones. Each zone can be named and custom programmed or even
disabled if not needed.

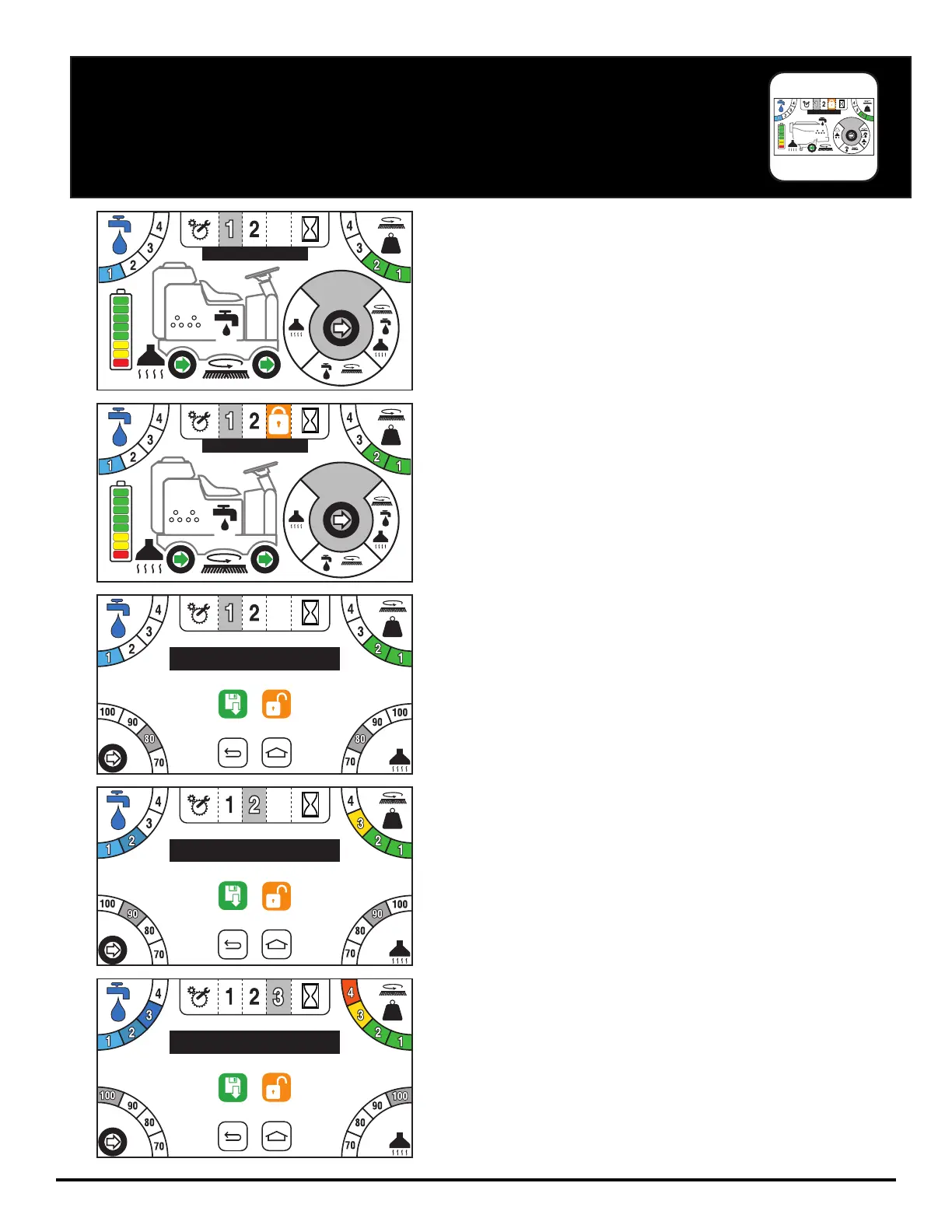

The zone you are working in is highlighted as indication. In Figure 1.
the zone selected is Light Duty.
Figure 2. shows Zone 3 “locked out” by the indicator lock icon.
Figure 3. shows Zone 1 “Light Duty” Factory Configuration.
Water = 1
Downpressure = 2
Drive Speed = 70%
Vac Motor = 80%
Figure 3. shows Zone 2 “Daily” Factory Configuration.
Water = 2
Downpressure = 3
Drive Speed = 90%
Vac Motor = 90%
Figure 3. shows Zone 3 “Heavy Duty” Factory Configuration.
Water = 3
Downpressure = 4
Drive Speed = 100%
Vac Motor = 100%
TOUCH SCREEN ZONE OPERATION (OPTIONAL)
3
#1 NAME
SUDSSUDS
3
LIGHT DUTY
SUDSSUDS
3
LIGHT DUTY
SUDSSUDS
% %
LIGHT DUTY
3
% %
DAILY
3
% %
HEAVY DUTY
