Factory Cat Pilot - Side Panel Controls

- 8 - FC-RIDERS-V2-OP-EN v22.235

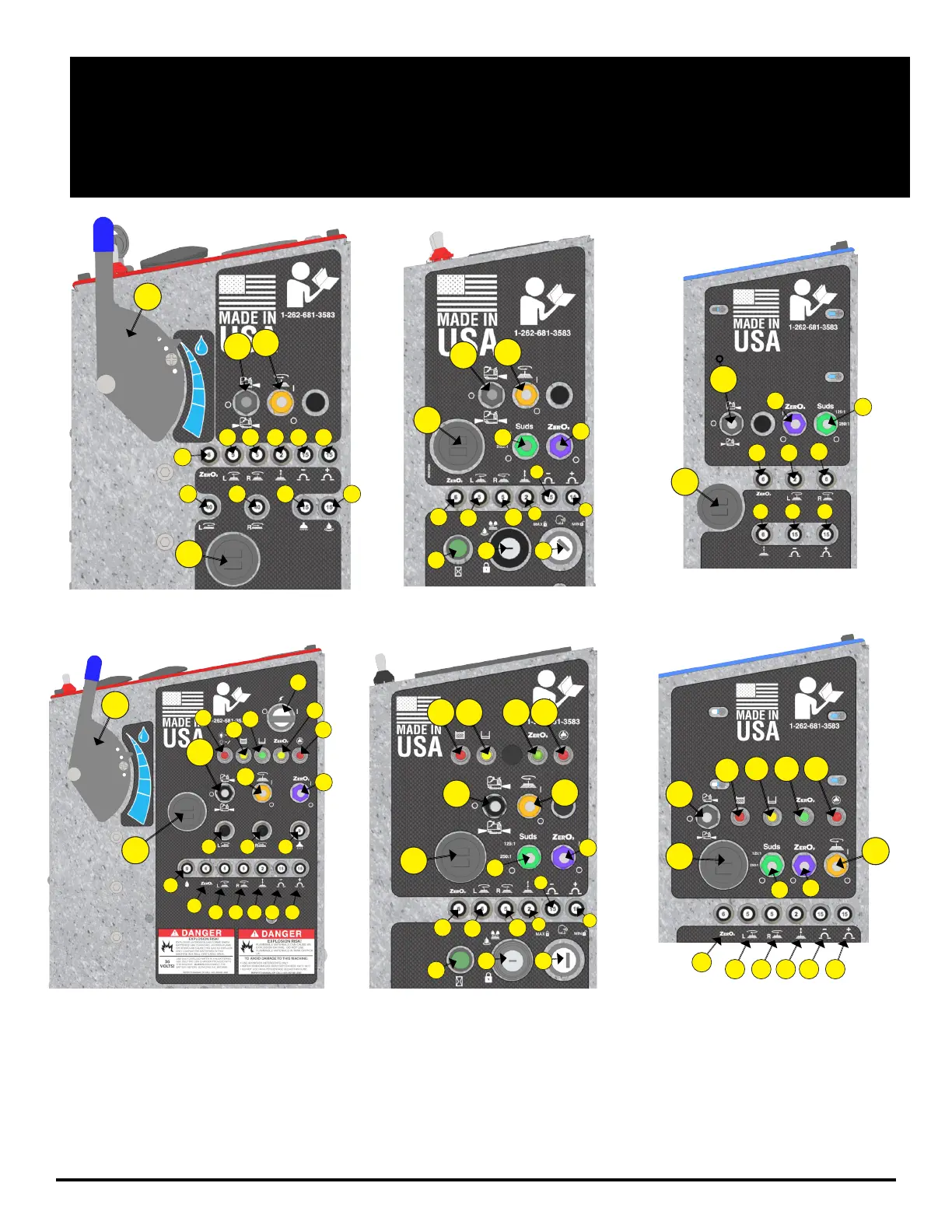

CENTRAL COMMAND SIDE PANEL CONTROLS
1. Head Lights/ Tail Lights
2. Side Brooms On (I) / Off (O)
3. Dual USB Voltmeter
4. Suds Switch 125:1/ 250:1/ Off (O)
5. ZerO3 On (I) / Off (O)
6. ZerO3 Circuit Breaker
7. Left Side Broom Circuit Breaker
8. Right Side Broom Circuit Breaker
9. Side Broom Lift Circuit Breaker
10. Negative BUSS Circuit Breaker
11. Positive BUSS Circuit Breaker
12. Left Brush Circuit Breaker
13. Right Brush Circuit Breaker
14. Vac Circuit Breaker
15. Solution Valve Circuit Breaker
16. Full Recovery Tank Indicator Light
17. Empty Solution Tank Indicator Light
18. ZerO3 Indicator Light
19. Vac Indicator Light
20. Solution Control Lever
21. Hour Meter Button
22. Dual Manager Lockout Solution/Downpressure
23. ECON switch Max (locked) Min (unlocked)
24. Status Indicator Light
25. Keyswitch
Military Grade (EX)
Military Grade (Pro/CRZ)
Touch Screen (EX)
Touch Screen (Pro/CRZ)
Legacy (EX)
Legacy (Pro/CRZ)
1
1
1
1
1
16
16
16
18
18
25
24
18
17
17
17
19
19
19
2
2
3
4
3
3
3
20
20
3
3
2
2
2
1
4
4
4
5
6
6
21
21
22
22
23
23
6
6
6
7
7
7
7 8 9 10 11
12 13 14 15
7
8
8
8
8
9
9
9 10 11
10
10
11
11
9 10 11
5
5
5
5
6
7 8 9 10 11
12 13 14
15
