SERVICE MANUAL
ADVANCE OVENS
04/02/2020 104

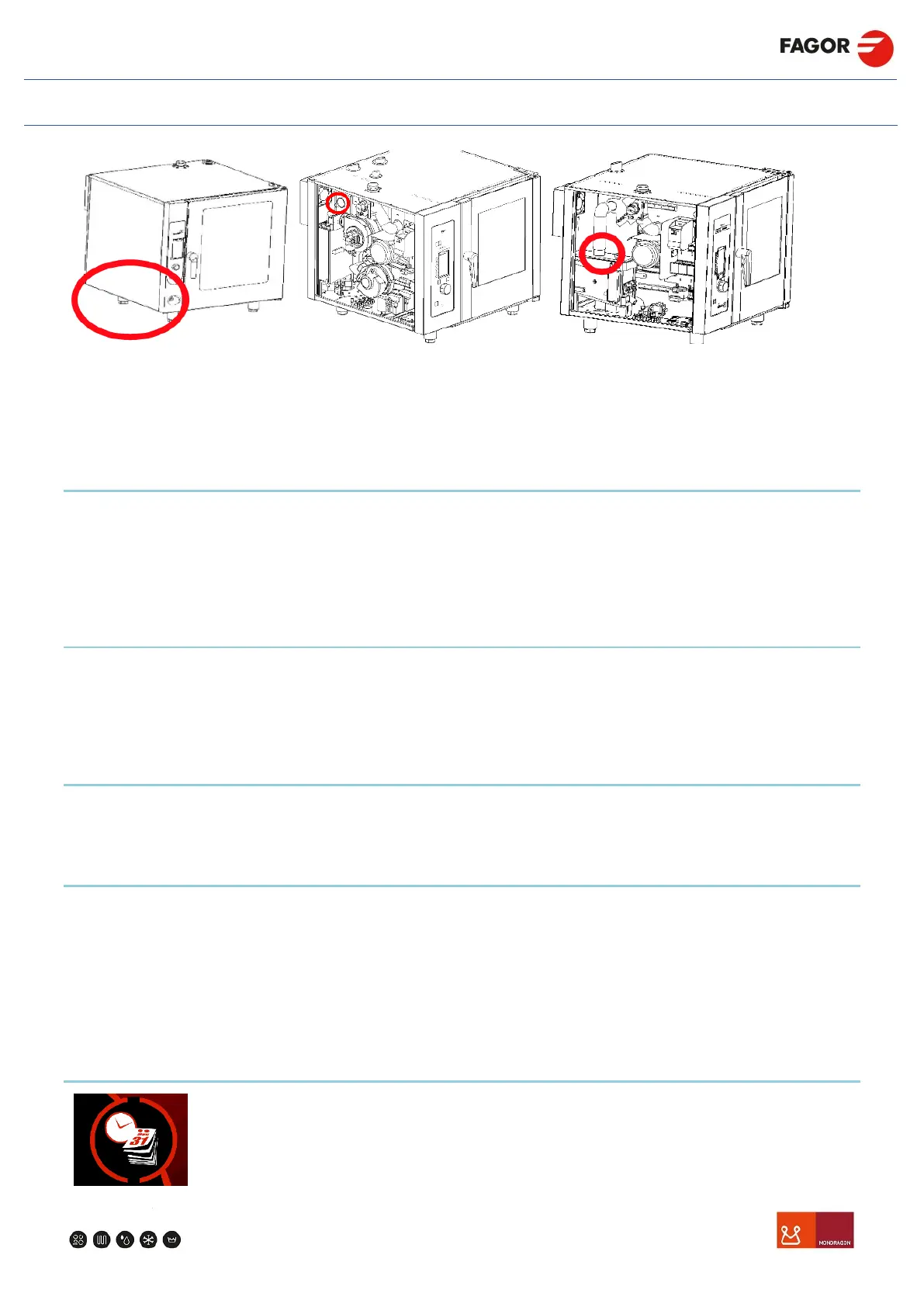

To descale, apply the chemical product in the quantities indicated by the manufacturer.
For the descaling process, we recommend using a phosphoric acid based product with a concentration of 30 -
40%.
In this concentration, we recommend using 25% of the generator volume. In all cases, please observe chemical
manufacturer
’s recommendations.
16.17. RESET GAS (until 01/01/2016)
Gas burners may be blocked for a variety of reasons. If this is the case, the Burner Blocked display lights up and
advises of the need to unblock the burner. This occurs after 4 failed ignition attempts.
The general information text advises that the burner is blocked. (Convection burner or Steam burner).
To unblock, enter the Burner Blocked display by pressing the General Options Knob. Now all the icons light up.
Select the burner blocked window, by turning the general options knob (18). Confirm the option by pressing the
special options button or the general options knob.
16.18. RESET GAS (after 01/01/2016)
Gas burners may be blocked for a variety of reasons. If this is the case, the Burner Blocked display lights up and
advises of the need to unblock the burner. This occurs after 3 failed ignition attempts.
When the ignition control has tried unsuccessfully to complete the ignition operation 3 times, the appliance is
blocked and the burner blocked signal is emitted. The appliance will display E-14 LOCK Q1 until the user switches
the appliance off and on by pressing ON/OFF, and a new sequence of three ignition attempts will be run.
16.19. TEMPERATURE PROBE DISPLAY
When the Configure system button is pressed for 5 seconds, the value of all the thermocouples is displayed
(Chamber Probe, Steam Probe, Core Probe and Steam Generator Probe).
The oven exits this function when the user releases the button, returning to the values with which it was operating.
16.20. AUTOMATIC DRAINAGE
In any operating mode, VAC will operate for 3 minutes every X hours of oven adjustment (all operating modes
except convection, where TG > 60ºC), and only when the oven is switched on, if TC <= 60ºC and TG <= 60ºC. If the
oven is switched off before the 3
’, when the power is reconnected the drainage cycle starts again for a further 3
minutes. The accumulated operating time is reset in the event of a wash.
Drainage takes place at pulses of 10 seconds ON, 10 seconds OFF for the 3 minutes of the drainage cycle.
During the process, the message DRAINING BOILER is displayed in the upper text, with the time remaining until the
drainage is completed.
There is a secret option to abort the process by pressing START/STOP for 5 seconds.
16.21. DELAYED PROGRAMMING
Use this function to access the delayed programming option which allows the oven to be switched
on at a set time with the established parameters.
First the oven should be programmed with the required parameters, then press the Delayed
Programming button and select the start time and date. After confirmation, the upper text
displays that the oven has been programmed, showing the start time and date.
To abort the programming, press the same button again. If the oven is on, any programming
