Power supplies
POWER SUPPLIES
Non-regenerative power supplies
2.
35
DDS
HARDWARE
Ref.1310

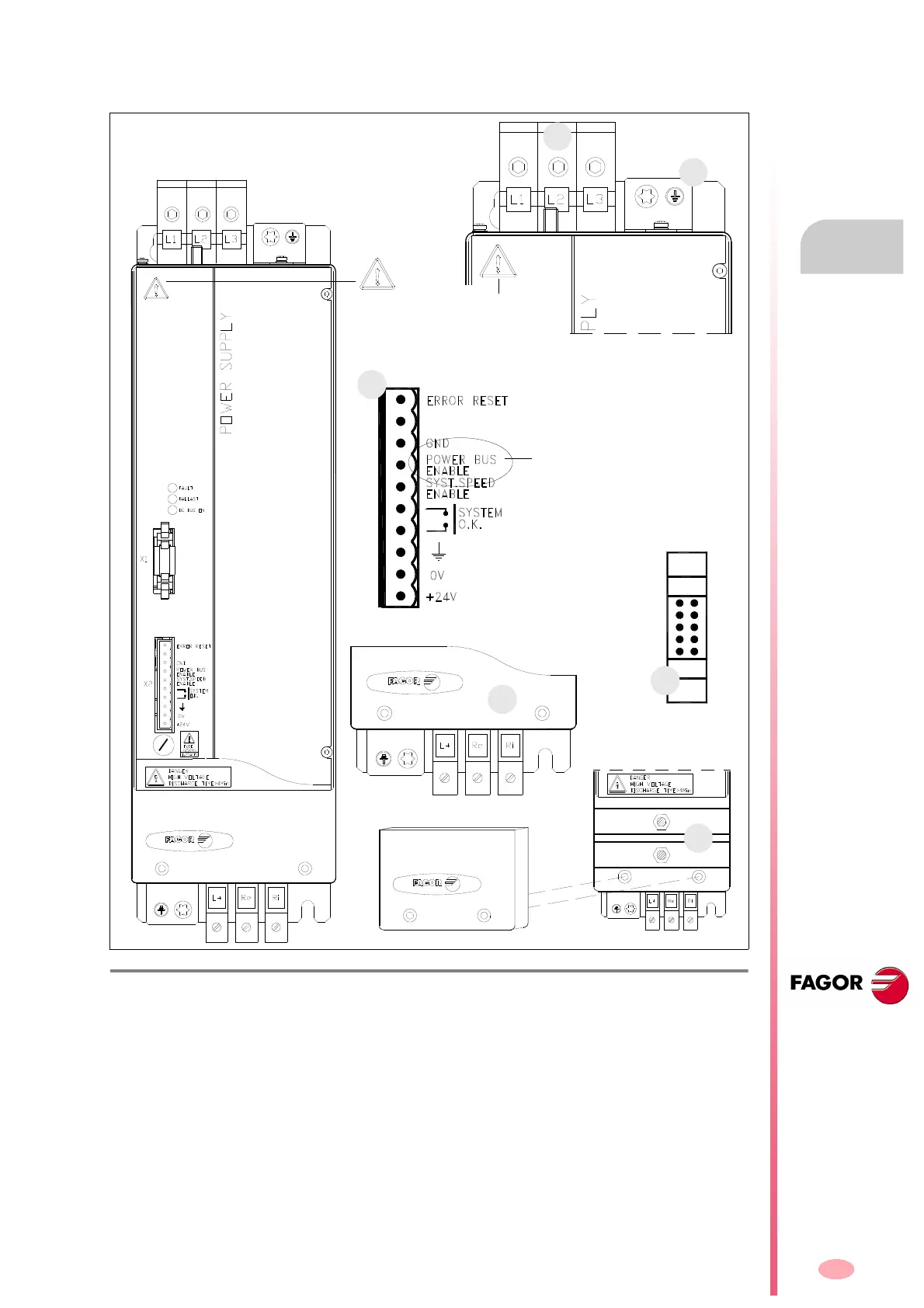

PS-65A. Connector description
The non-regenerative power supply PS-65A has the following connectors:
F. H2 /4
Connectors of the PS-65A power supply.
1. Power connector for the three-phase mains.
2. Power connector for the external Ballast resistor connection.
3. Ground connection for the mains cable.
4. Power Bus supplying power to the drive modules through metal bars.
X1. Connector for inter-module communication.
X2. Connector for the basic control signals.
1.
3.
4.
2.
X1.
X2.
NOTE. Currently pin 4
<POWER BUS ENABLE> of
connector X2 is not used at this
time.
CAUTION. AC touch current
greater than 3.5 mA. Install ground
wire of at least 10 mm² Cu or 16
mm² Al.
