Description
DESCRIPTION
General diagram
1.
27
DDS
HARDWARE
Ref.1310

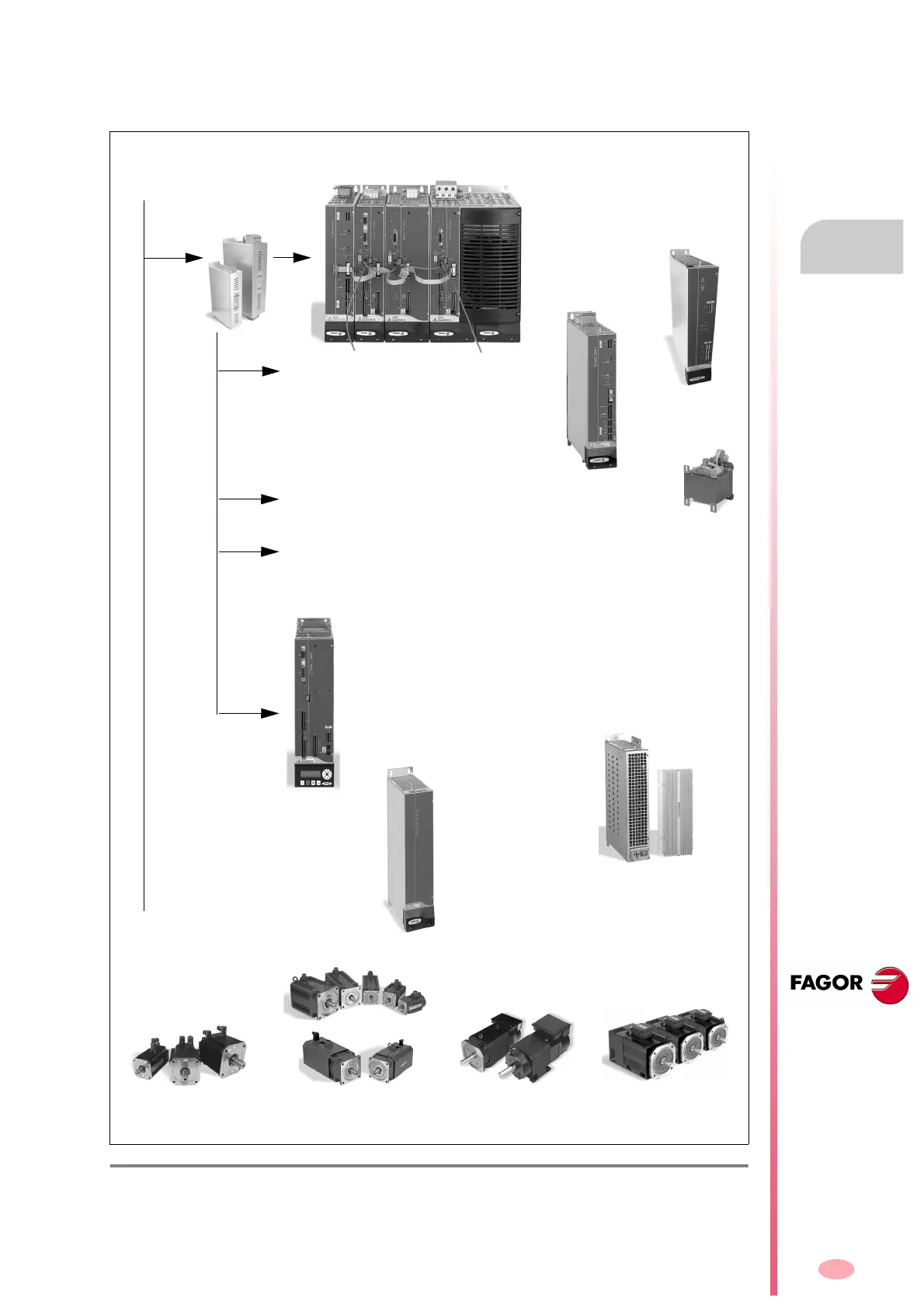

1.2 General diagram
See the schematic description of all the elements that make up the DDS servo drive system:
F. H1 /2
DDS servo drive system configurations.
for axes: AXD, MMC
for spindle: SPD
Mains connection.
Three phase 50/60Hz.TN mains
400-10% to 460+10% V AC
Mains filters:
MAINS FILTER A
Non-Regenerative
Power Supplies
Compact Drives
(they integrate the Power Supply)
+ Choke XPS-XX
+ Modular Drives:
for axes: ACD, CMC
for spindle: SCD
FKM
FXM
FM7/FM9
SPM
Synchronous motors
Asynchronous motors
Capacitor module CM 1.60.
It is connected in parallel to
the power bus (600 V DC).
Resistor modules ER+TH-x/x or ER+TH-
18/x+FAN. They are connected to the
power supplies or to the compact drives.
PS-65A
+ auxiliary power supply:
APS-24
Regenerative Power Supplies
(they integrate the Auxiliary Power Supply):
XPS-XX
Non-Regenerative Power Supplies
(they integrate the auxiliary power supply
PS-25B4
for axes: AXD, MMC
for spindle: SPD
+ modular drives:
for axes: AXD, MMC
for spindle: SPD
+ modular drives:
+ Choke RPS-XX
+ Modular Drives:
RPS-XX
Regenerative Regulated
Power Supplies
(they integrate the
Auxiliary Power Supply):
(discontinued)
for axes: AXD, MMC
for spindle: SPD
