Cables
CABLES
Signal cables for control and communications
7.
255
DDS
HARDWARE
Ref.1310
7.5 Signal cables for control and communications
Encoder simulator from the drive to the CNC
Depending on motor feedback, the drive can generate a set of signals
that simulate those of a differential TTL encoder attached to the rotor of
the motor. The attached tables show this cable supplied by FAGOR to
connect the drive (X3) and the CNC 8055 (X1, X2, X3 or X4) / 8055i (X10,
X11, X12 or X13) / 8065/8070 (LOCAL COUNTER 1/2). The attached ta-
bles show this cable supplied by FAGOR to connect the drive and the
CNC
. They are supplied with connectors at both ends and their sales ref-
erence is:
SEC-HD- cable
T. H7/15 Range of SEC-HD- cables. The number indicates their length
in meters including the connectors.
SEC-HD-1 SEC-HD-10 SEC-HD-25
SEC-HD-3 SEC-HD-15 SEC-HD-30
SEC-HD-5 SEC-HD-20 SEC-HD-35

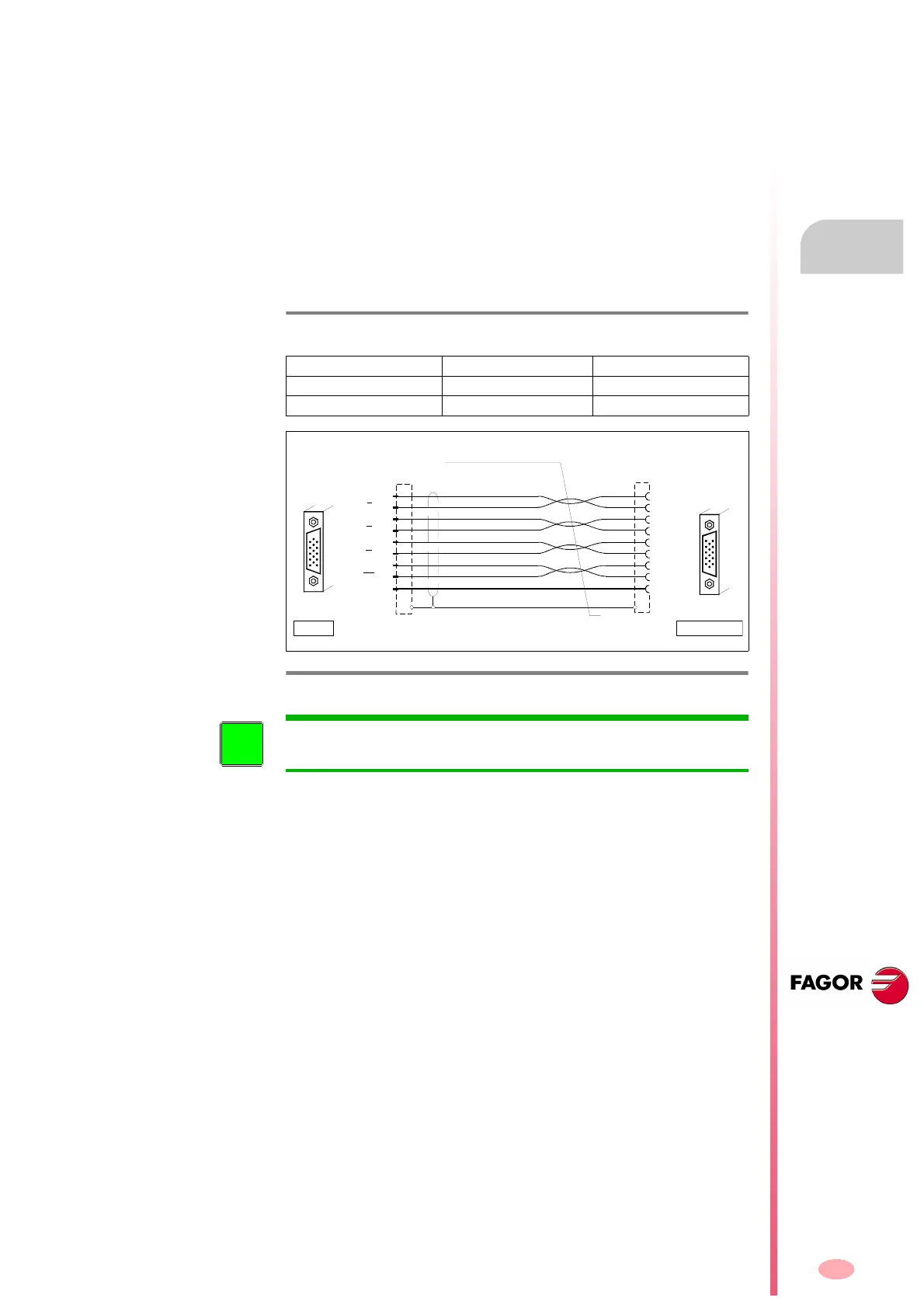

F. H7/5
Connection of the cable for the encoder simulation and the CNC.
Yellow
Purple
Blue
Grey
Green
Brown
Pink
Black
White
Ready Made Cable
SEC-HD-1/3/5/10/15/20/25/30/35
Length in meters; including connectors
6
5
4
3
2
1
7
8
Cable 2x4x0.14+1x2x0.5
11
Pin
Twisted pair. Overall shield. Metallic shield connected to CHASSIS pin
(at the CNC end and at the Drive end)
6
5
4
3
2
1
7
8
11
Pin
Io
B
A
GND
Signal
CHASSIS
1
5
(HD,
Sub-D,
F15)
Front View
11
15
to DRIVE -X3-
1
5
(HD,
Sub-D,
M15)
Front View
15
11
A
B
Io
AL
AL
to CNC
INFORMATION. The max. length for SEC-HD- cables for best perfor-
mance is 50 meters.
