32|52 - BCS3D EtherCAT Beta EtherCAT S ervo 3 Drive series | Ref.2403
Installation Manual

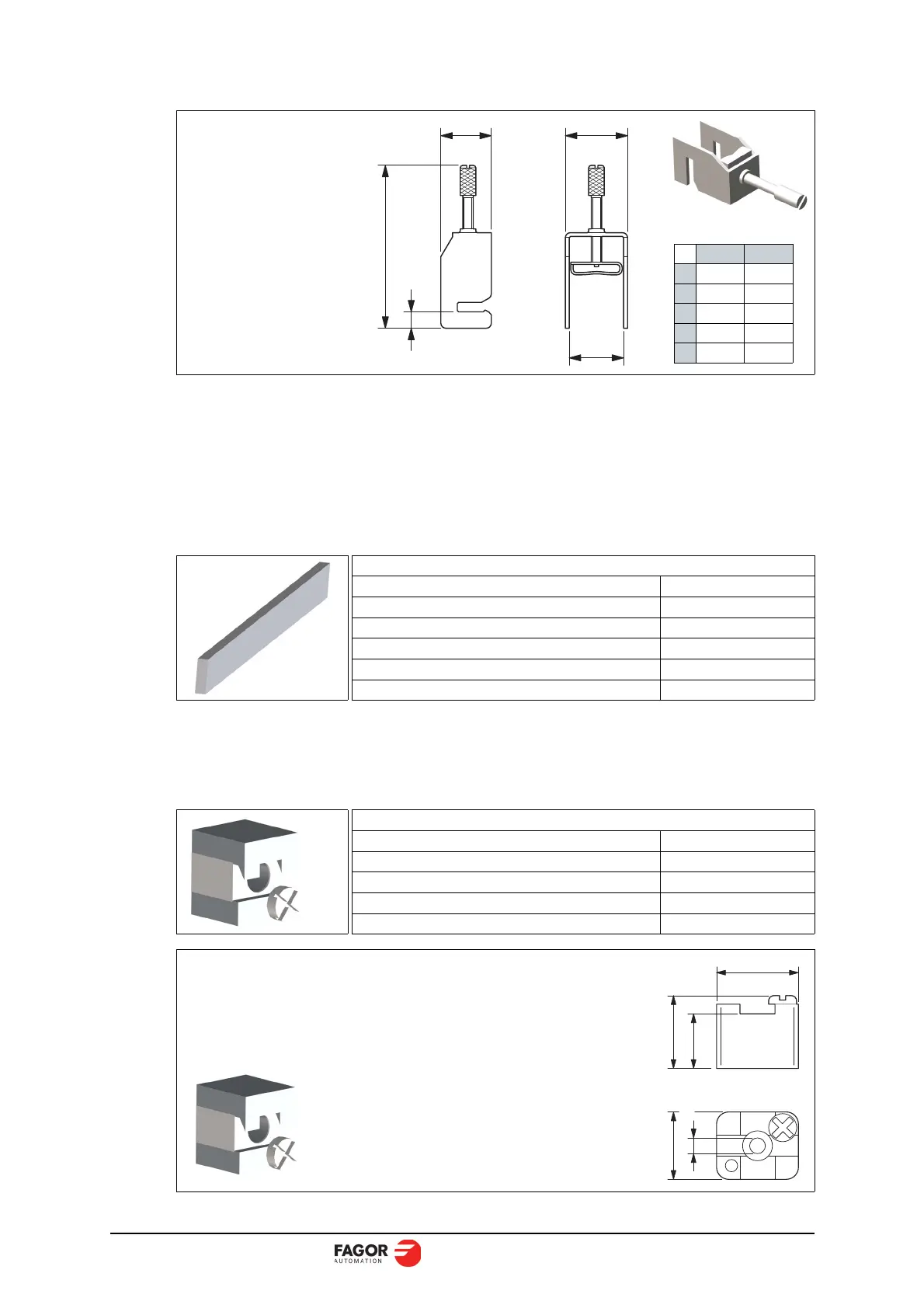

Grounding plates
GP-1 grounding plate (for ’motor - compact single-drive’ power cable shields) and GP-2
grounding plate (for motor and direct feedback cable shields) 3 mm x 10 mm, length: 120
mm. They will be used as shield connection bars and shall always be connected to the
Protective Earth inside the cabinet and the contacts with the cable shields shall be made on
them and connected to the grounding plates with metal clamps. See the positions of the
GP-1 and GP-2 grounding plates inside the electrical cabinet shown in figure
SCHEMATIC
CONNECTION DIAGRAM
.
Support bracket
Insulating material trestle with fastening screw usable for 3 mm x 10 mm grounding plate. Install
two brackets per plate, one at each end to secure them inside the electrical cabinet. Bore
diameter: Ø 4.5 mm
.
Technical data
Height (mm)
3
Length (mm)
120
Width (mm)
10
Material
Copper
Coating
Tinning
Color Silver
Technical data
Height (mm) 21.7
Length (mm) 23.4
Width (mm) 19.4
Material Polyamide
Color Grey
e
d
b
max. c
a
SK 14 SK 20
a
6.5 6.5
b
19.5 19.5
c
59.3 75.0
d
17.0 24.0
e
14.0 21.0
Dimensions in mm. 1 in = 25.4 mm
x2
x4
23,4
12,85
21,7
19,4
Ø4,5
Dimensions in mm. 1 in = 25.4 mm
