EXAMPLE MANUAL 39

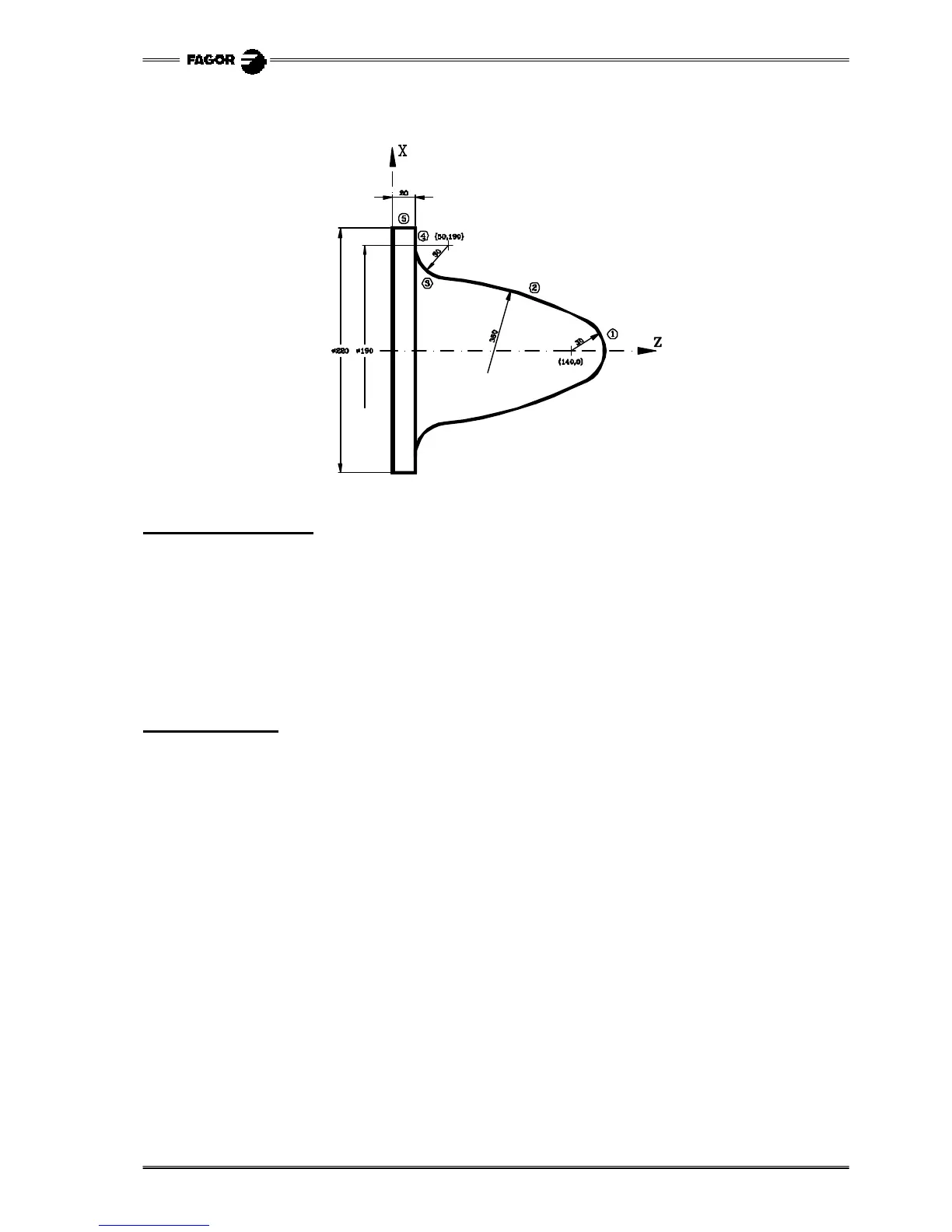

Profile editor. Example 2.
PROFILE DEFINITION
• STARTING POINT : Z= 170 X= 0
• CCW ARC (1) : Zcenter= 140 Xcenter= 0 Radius= 30 Tangent= Yes
• CCW ARC (2) : Radius= 350 Tangent= Yes
• CW ARC (3) : Zcenter= 50 Xcenter= 190 Radius= 30 Tangent= Yes
The CNC shows all the possible options for section 2. Select the right one
• STRAIGHT LINE (4) : Z = 20 X = 220 Tangent= Yes
The CNC shows all the possible options for sections 3-4. Select the right one
• STRAIGHT LINE (5) : Z = 0 X= 220
END OF EDITING
Select the softkeys: END + SAVE PROFILE. The CNC quits the profile editing mode and shows, in ISO code,
the program that has been generated.
