40 EXAMPLE MANUAL

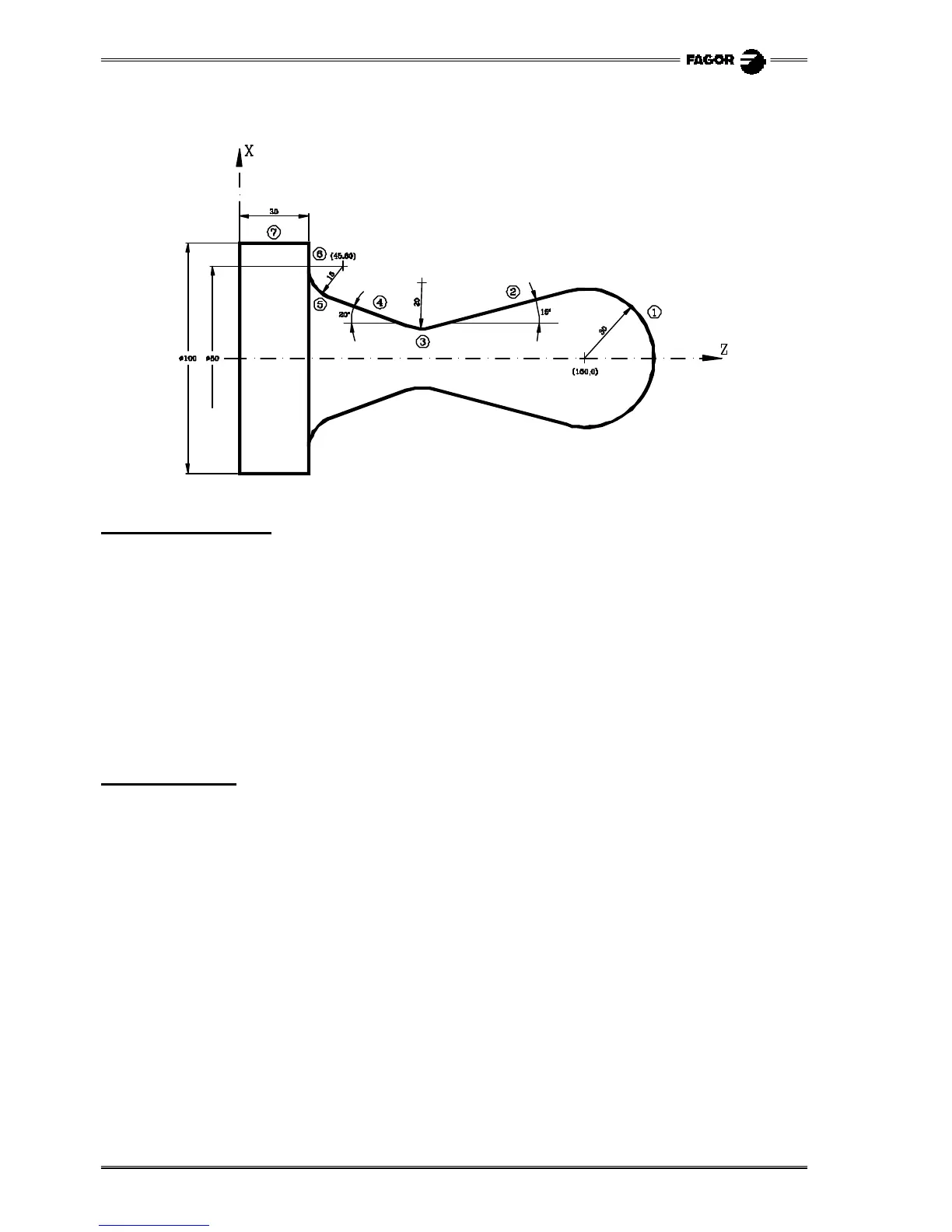

Profile editor. Example 3.
PROFILE DEFINITION
• STARTING POINT : Z = 180 X = 0
• CCW ARC (1) : Zcenter= 150 Xcenter=0 Radius = 30
STRAIGHT LINE (2) : Angle= 195 Tangent = Yes
The CNC shows all the possible options between sections 1-2. Select the right one
• CW ARC (3) : Radius = 20 Tangent = Yes
• STRAIGHT LINE (4) : Angle= 160 Tangent = Yes
CW ARC (5) : Z = 30 X = 80 Zcenter= 45 Xcenter= 80 Tangent= Yes
The CNC shows all the possible options between sections 4-5. Select the right one
The CNC shows all the possible options for section 3. Select the right one
• STRAIGHT LINE (6) : Z = 30 X = 100
• STRAIGHT LINE (7) : Z = 0 X = 100
END OF EDITING
Select the softkeys END + SAVE PROFILE. The CNC quits the profile editing mode and shows, in ISO code,
the program that has been generated.
