DIMENSIONS
External Ballast resistors with external thermostat
384
Ref.1912
DDS
HARDWARE
· 382 ·
11.9 External Ballast resistors with external thermostat
F. H11/24

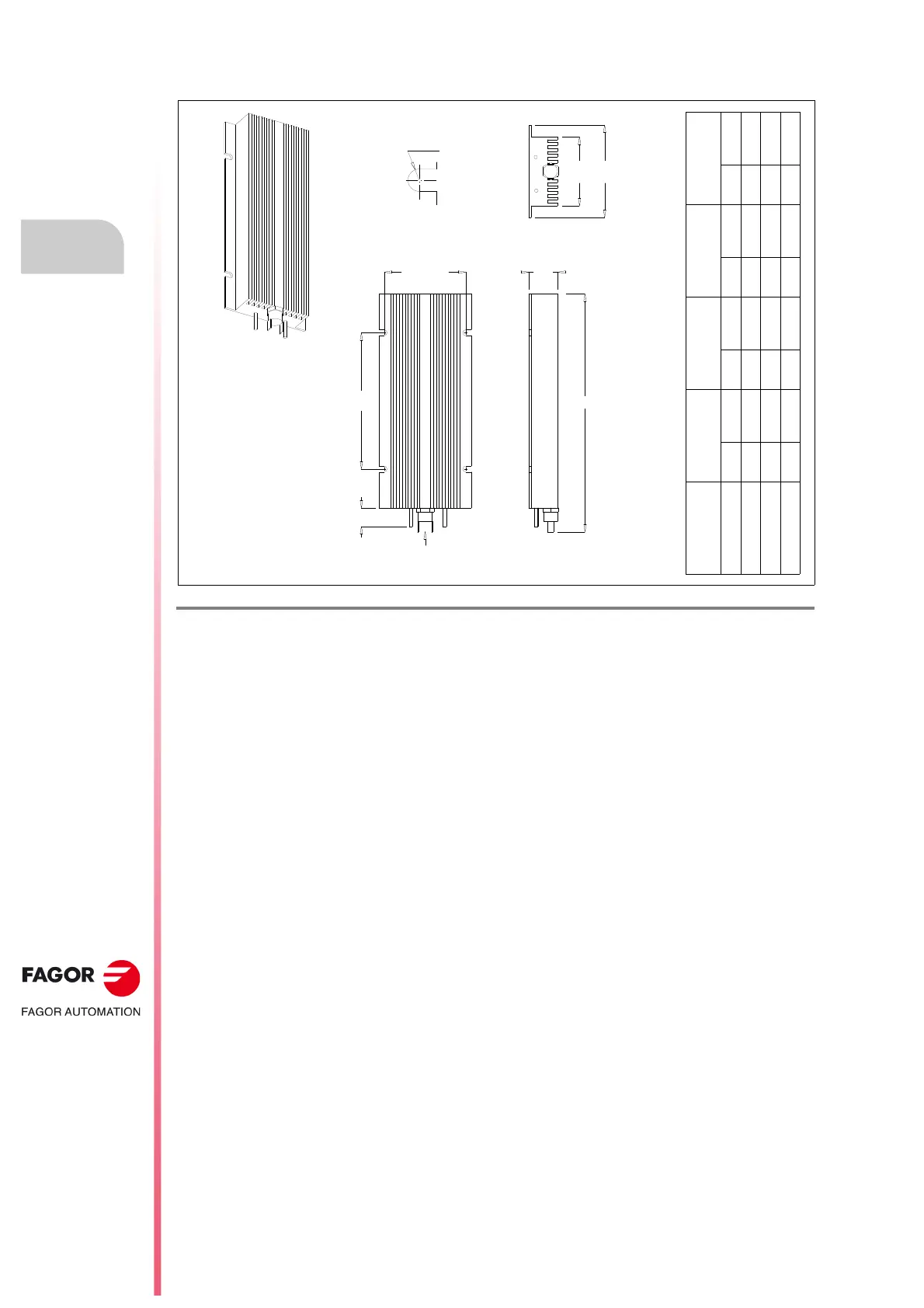

External Ballast resistors with external thermostat. Dimensions.
ER+TH-
18/1100
in
12.59
9.44
11.81
mm 320 240 300
ER+TH-
24/1100
in
12.59
9.44
11.81
mm
320 240 300
ER+TH-
24/750
in
8.66 5.51
11.81
mm 220 140 300
ER+TH-
43/350
in
4.33 2.36
11.81
mm
110
60
300
With external thermostat Units L In lf
Ø
6,2
30
95
71
L
80 y84
In
lf
THERMO-SWITCH 160 °C
FAST ON 6.3 mm
