Dimensions
DIMENSIONS
External Ballast resistors with internal thermostat
11.
Ref.1912
· 383 ·
DDS
HARDWARE
11.10 External Ballast resistors with internal thermostat
F. H11/25

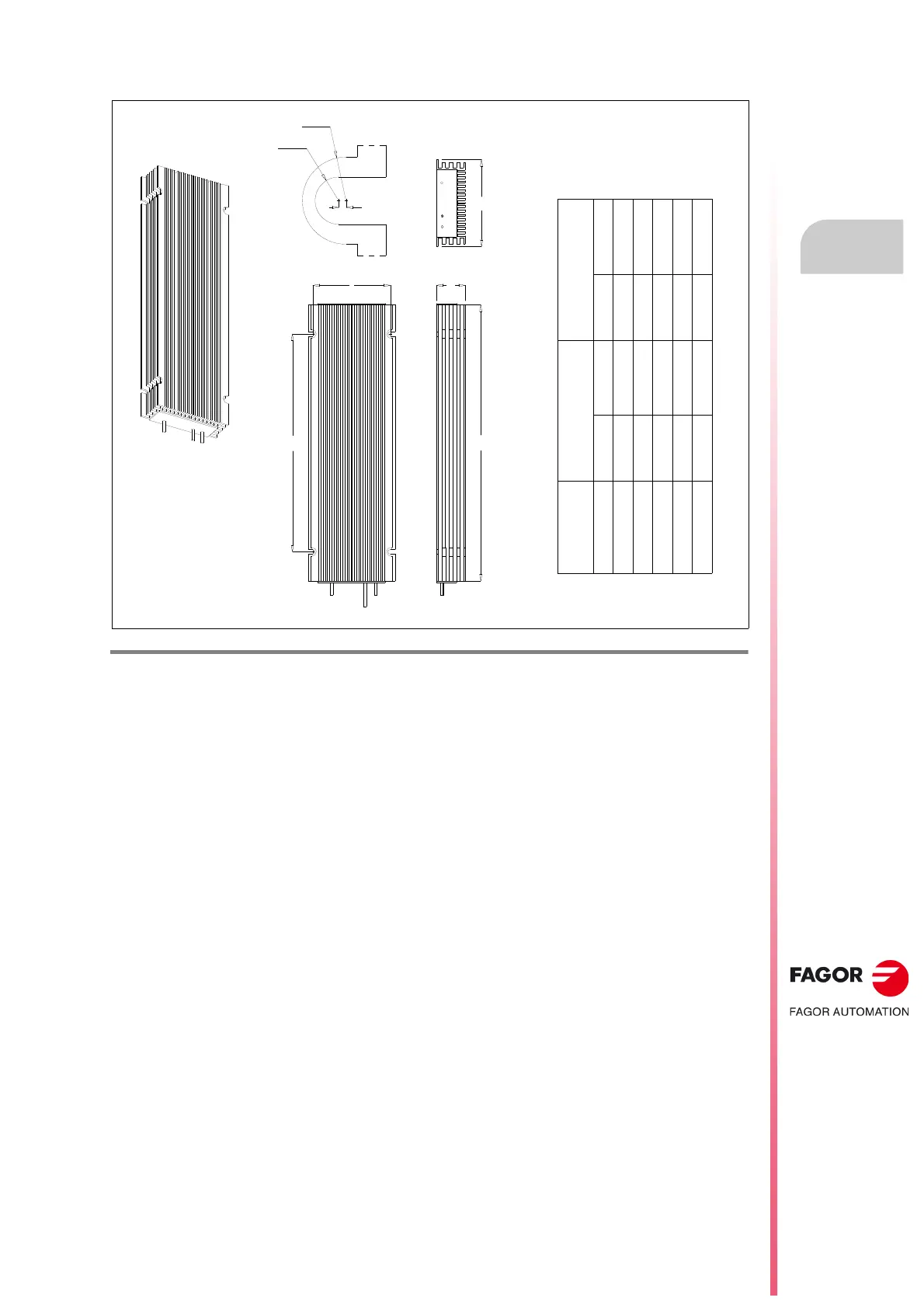

External Ballast resistor with internal thermostat. Dimensions.
ER+TH-18/2200
in
7.48
2.63
14.96
4.21
4.40
11.81
mm
190
67
380
177182
300
ER+TH-18/1800
in
4.72
1.57
14.96
4.214.40
11.81
mm
120
40
380
107112
300
With internal
thermostat
Units
A
B
L
I
P
I
A
B
P
L
Ø
6.5
Ø
12
1
2.5 mm²
THERMOSTAT OUT CABLES
2.5 mm²
