CQR-36/56 Fagor Compact Drives and Motors Quick Reference. Ref.1910
ELECTRONIC MODULES
COMPACT AXIS DRIVE MODULE, ACD
Digital module that can govern a synchronous motor in speed and
position.
COMPACT SPINDLE DRIVE MODULE, SCD
Digital module that can govern a asynchronous motor in speed and
position.
COMPACT MOTION CONTROL, CMC
Digital module that can govern a synchronous motor in speed and
position and also generate a tool path.
RESISTOR MODULES ER+TH-X/X & ER+TH-18/X+FAN
The resistor modules are designed for dissipating the energy excess
at power bus when requiring a Ballast resistor with greater power than
can be dissipated inside the power supply module.
The independent resistors ER+TH-/ are electrical resistors that
can also be used with power supplies and compact drives that have a
thermostat (some internal and others external).
The independent resistors ER+TH-18/+FAN are electrical resistors
that can also be used with power supplies and compact drives that may
be connected to an internal thermostat or carry a single-phase 220 V
AC cooling fan.
ACD/SCD/CMC compact units without NR reference have a particular
resistor associated with them; FAGOR supplies it in an accessory bag
inside the unit package and the user must install it.
This is not the case for units with NR reference for which the user
must select the appropriate resistor model depending on the energy
to be dissipated in the application. Therefore, the latter do not come
with the resistor in the accessory bag of the unit and it must be
requested separately.
MAINS FILTER
Absolutely necessary for complying with the European Directive on
Electromagnetic Compatibility 2014/30/EU or the International
Standard IEC 61800-3. The filter ·
MAIN FILTER 42A-A· is designed for
ACD/SCD/CMC ..
AXIS DRIVE MODULES. ACD

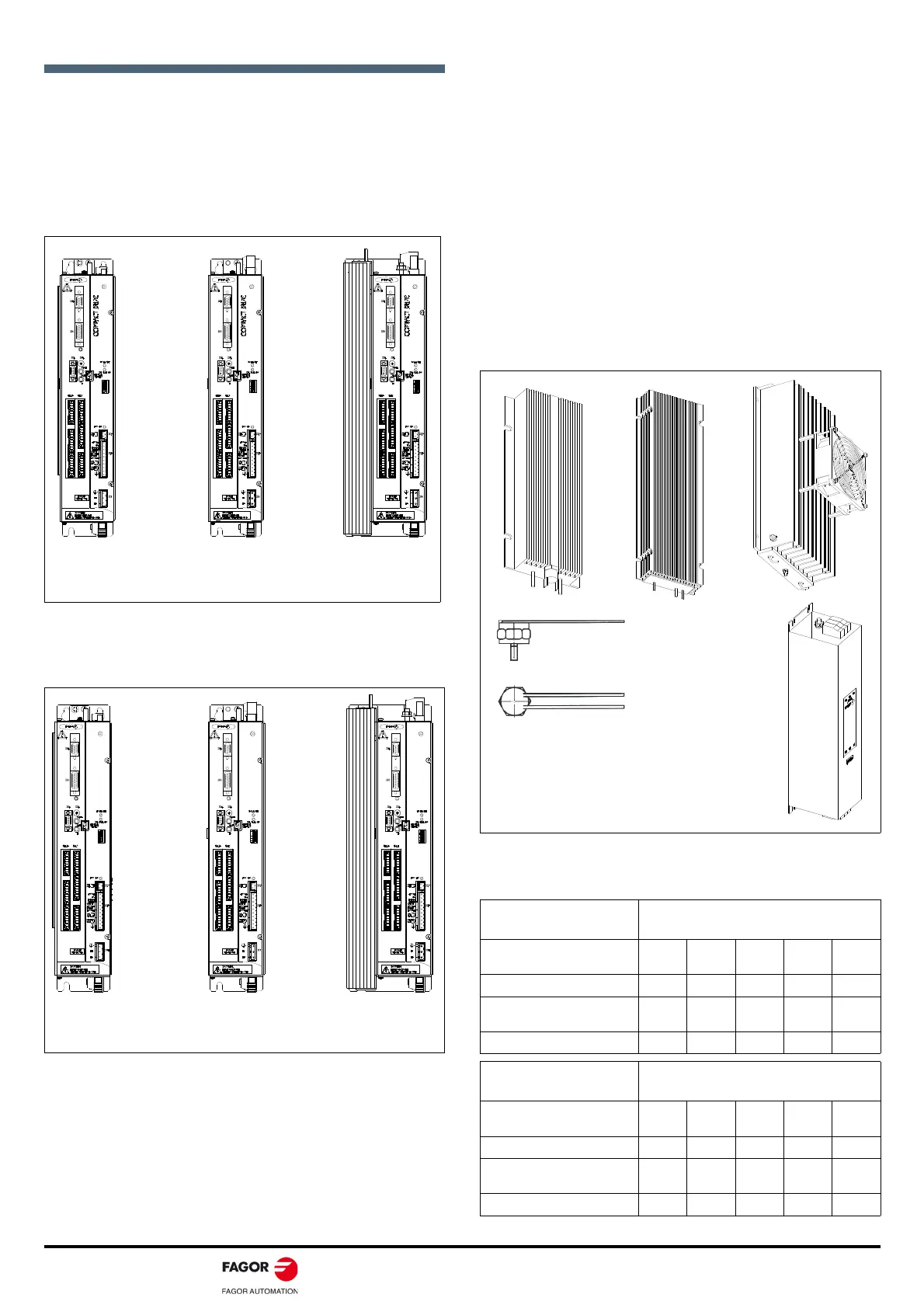

A. ACD/SCD 1.08/1.15, B. ACD/SCD 1.25, C. ACD/SCD 2.35/2.50, SCD 2.75
·A·
·B· ·C·
positioning drive positioning drive positioning drive
A. CMC 1.08/1.15, B. CMC 1.25, C. CMC 2.35/2.50
·A· ·B· ·C·
With internal fan
AXIS DRIVE
· for synchronous motor ·
Currents (A)
at fc = 4 kHz
ACD
1.08
ACD
1.15
ACD
1.25
ACD
2.35
ACD
2.50
Rated current (A) 4.0 7.5 12.5 17.5 25.0
Max. peak current for 500
ms in 10 s cycle (A)
815253550
Dissipat. power (W) 40 87 110 160 222
With internal fan
AXIS DRIVE
· for synchronous motor ·
Currents (A)
at fc = 8 kHz
ACD
1.08
ACD
1.15
ACD
1.25
ACD
2.35
ACD
2.50
Rated current (A) 4.0 7.5 9.5 17.5 20.0
Max. peak current for 500
ms in 10 s cycle (A)
815193540
Dissipat. power (W) 50 118 139 206 226
A. BRAKING RESISTORS WITH EXTERNAL THERMOSTAT
B. BRAKING RESISTORS WITH INTERNAL THERMOSTAT
C. EXTERNAL THERMOSTAT
D. BRAKING RESISTORS THAT MAY BE CONNECTED AN
EXTERNAL THERMOSTAT AND WITH INTEGRATED FAN
E. MAIN FILTER 42A-A
·C·
·D·
·A· ·B·
·E·
