Fairlight Merlin - QDC Configuration

34
QDC CONFIGURATION
Each QDC card comes with three connectors, each housing 50 pins. The following
tables show the Audio I/O Configurations - the connectors and Pinouts for Merlin. In
some configurations more than one QDC card is required to enable all analog and digital
I/O.

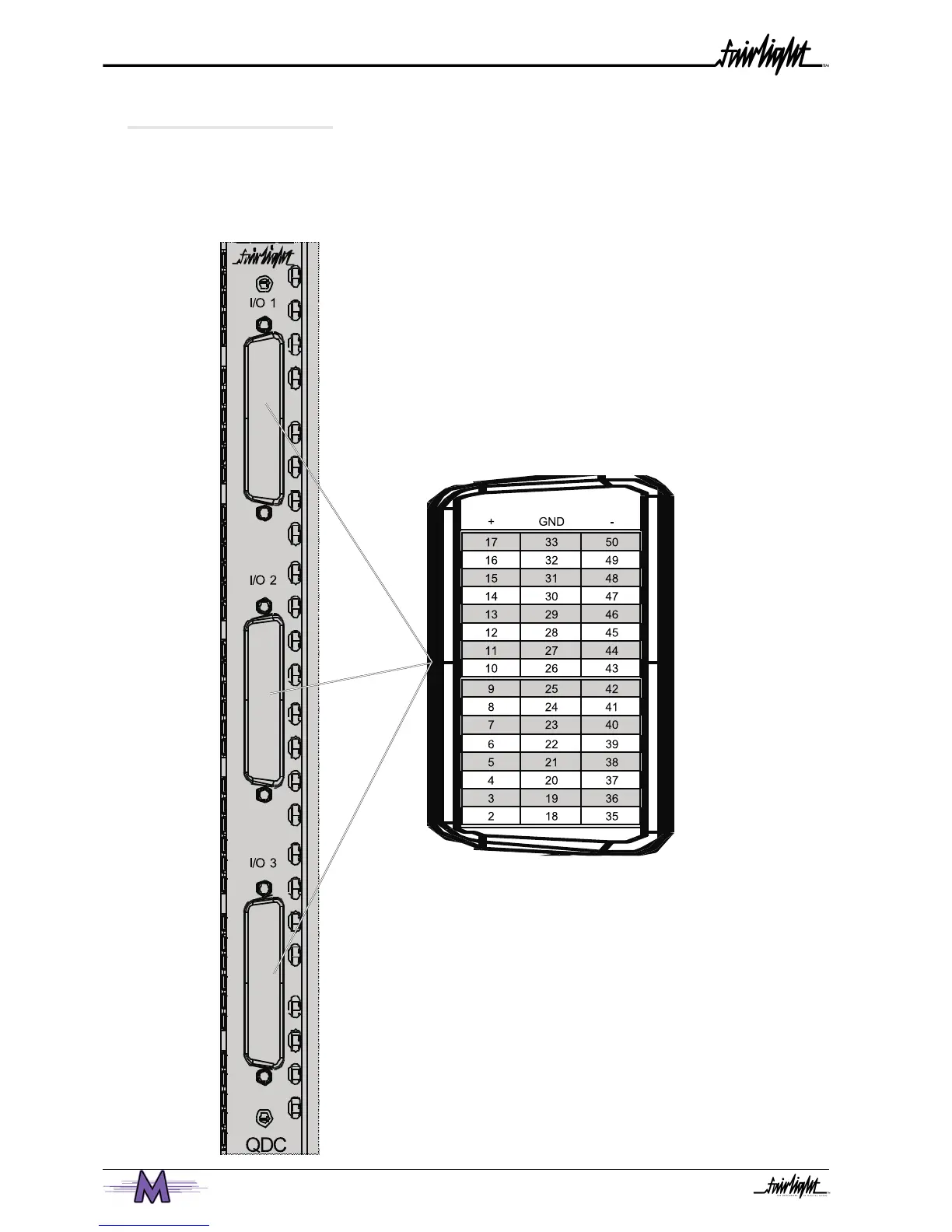

QDC Connector Pin Outs
