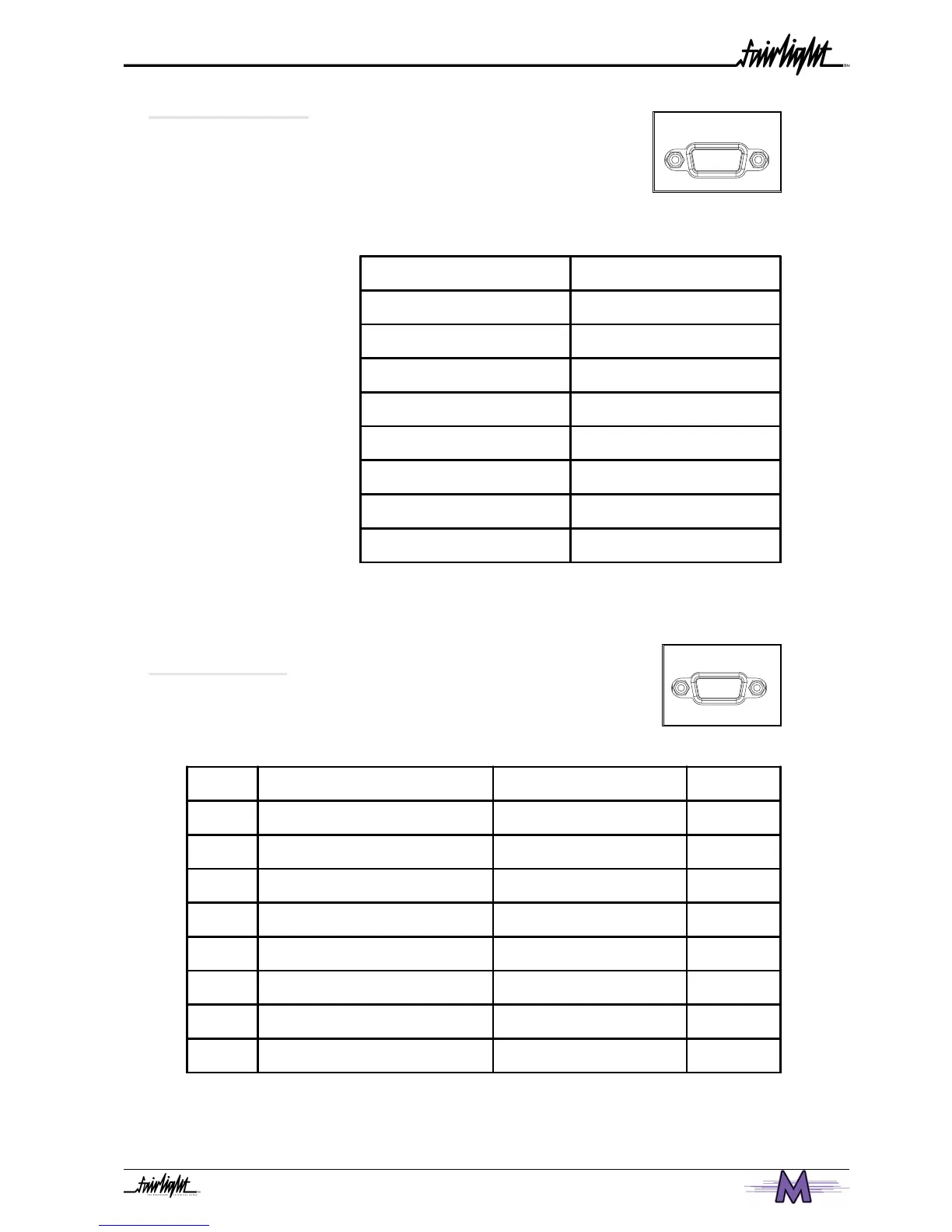

A12 SERIAL PORT
Connector Standard 9 pin D male
PIN 1 SER_DCD
PIN 2 SER_Rx
PIN 3 SER_Tx
PIN 4 SER_DTR
PIN 5 GND
PIN 6 SER_DSR
PIN 7 SER_RTS
PIN 8 SER_CTS
PIN 9 NC
A13 MIDI I/O
Connector 9 pin D female
PIN 1 NOT CONNECTED
PIN 2 MIDI IN NEGATIVE MIDI IN DIN PIN 5
PIN 3 MIDI OUT NEGATIVE MIDI OUT DIN PIN 5
PIN 4 GND MIDI THROUGH DIN PIN 2
PIN 5 MIDI THROUGH POSITIVE MIDI THROUGH DIN PIN 4
PIN 6 MIDI POSITIVE MIDI IN DIN PIN 4
PIN 7 GND MIDI OUT DIN PIN 2
PIN 8 MIDI OUT POSITIVE MIDI OUT DIN PIN 4
PIN 9 MIDI THROUGH NEGATIVE MIDI THROUGH DIN PIN 5
