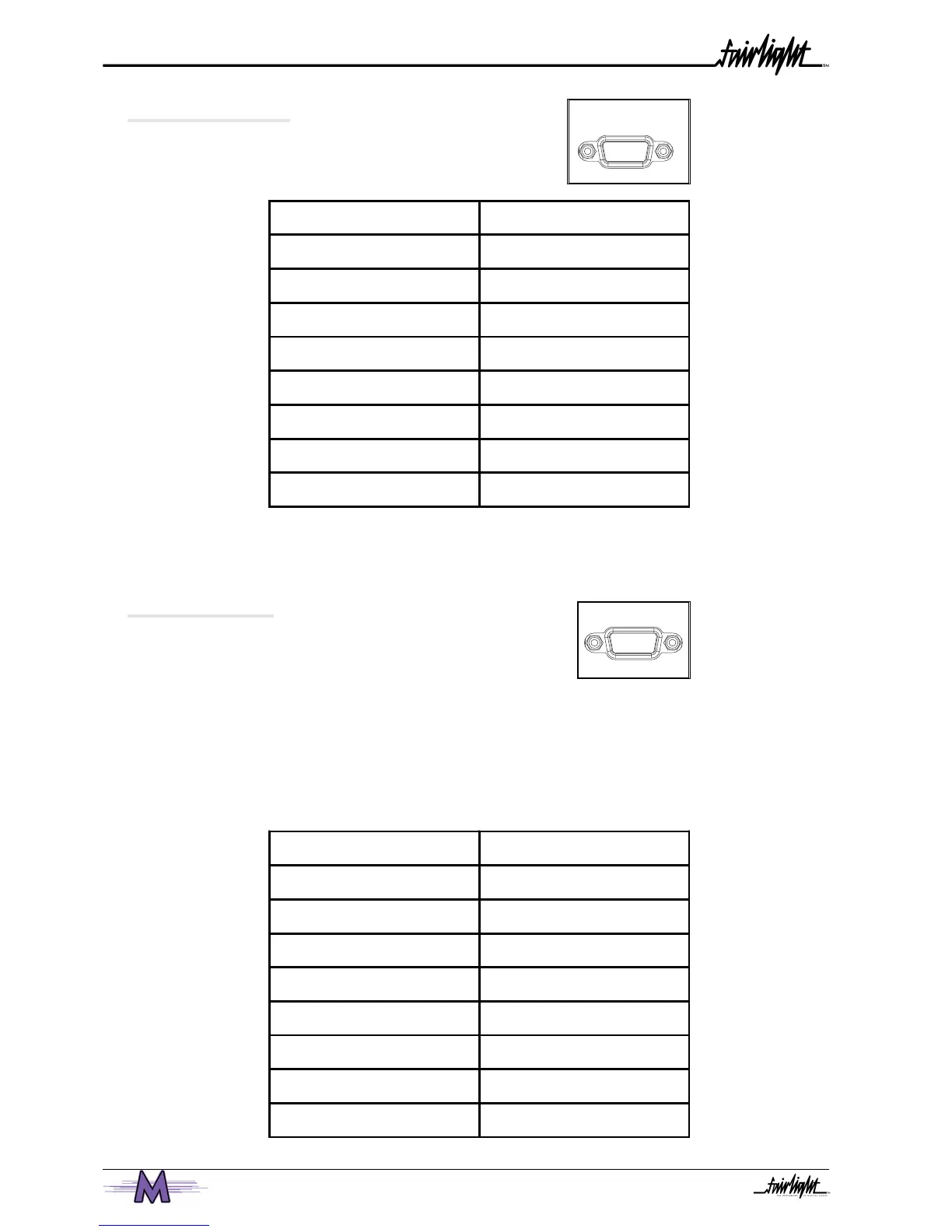

A10 9-PIN SLAVE
Connector 9 pin D Female
PIN 1 GND
PIN 2 9BTxA
PIN 3 9RRxB
PIN 4 GND
PIN 5 NC
PIN 6 GND
PIN 7 9BTxB
PIN 8 9BRxA
PIN 9 GND
A11 LTC - I/O
Connector 9 pin D Male
Input Level -20dbm to +10dbm
Output Level 0dbm
Important note: Unbalanced loads connected to LTC OUT should NOT ground the
LTC OUT NEGATIVE signal.
PIN 1 GND
PIN 2 LTC A NEGATIVE
PIN 3 LTC OUT NEGATIVE
PIN 4 GND
PIN 5 LTC B POSITIVE
PIN 6 LTC A POSITIVE
PIN 7 GND
PIN 8 LTC OUT POSITIVE
PIN 9 LTC B NEGATIVE
LTC I/O
9-Pin Slave
