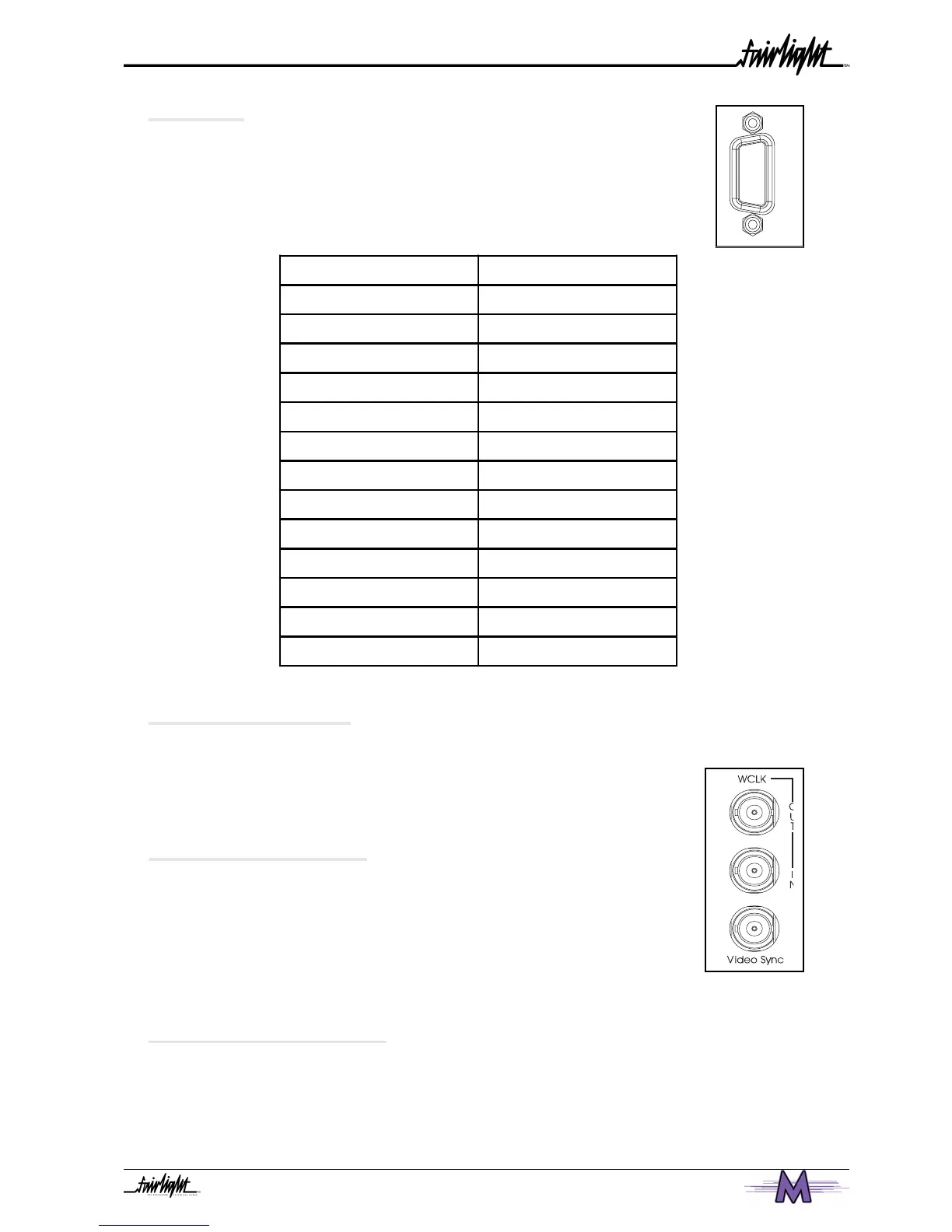

Fairlight Merlin - A16 Vga; A17 Video Sync - in; A18 Word Clock - in; A19 Word Clock - out

59
PIN 1 RED
PIN 2 GREEN
PIN 3 BLUE
PIN 4 GND
PIN 5 GND
PIN 6 GND
PIN 7 GND
PIN 8 GND
PIN 10 GND
PIN 11 GND
PIN 12 NC
PIN 13 HSYNC
PIN 14 VSYNC
PIN 15 NC
A16 VGA
Connector 15 pin High Density D Female
Resolution 1024(H) x 768(V)
Frequency HSYNC: 60khz VSYNC: 75hz SVGA STANDARD
A18 WORD CLOCK - IN
Connector BNC
Input Optically Isolated
Output Impedence 75 Ohms
A17 VIDEO SYNC - IN
Connector BNC
Input Level 1V p-p 75 Ohms Terminated Internally
A19 WORD CLOCK - OUT
Connector BNC
Output Level > 4.3V TTL
Output Impendence 75 Ohms
