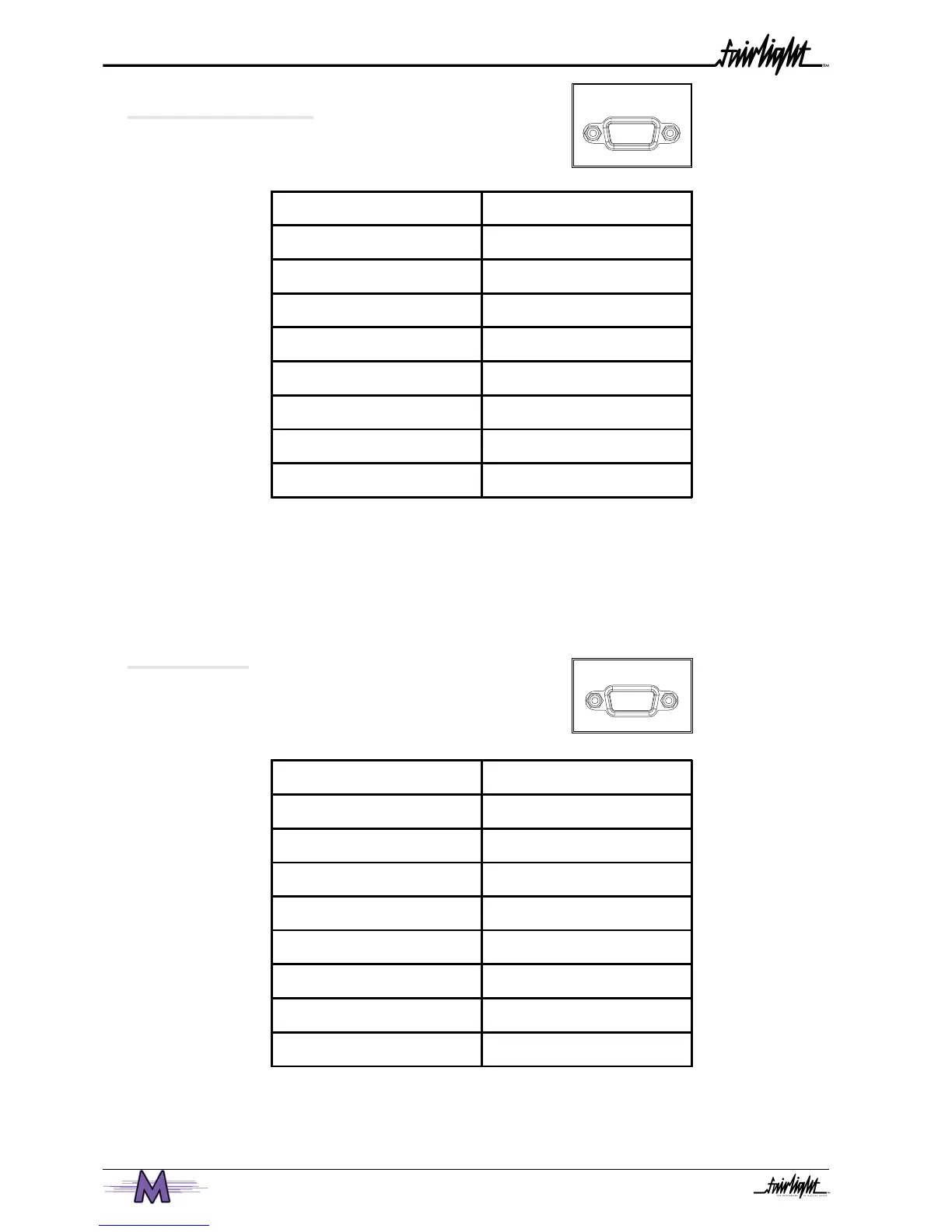

A14 AES SYNC I/O
Connector 9 pin D Male
PIN 1 GND
PIN 2 AES IN NEGATIVE
PIN 3 AES OUT POSITIVE
PIN 4 BIPHASE TACH
PIN 5 BIP DIRECTION
PIN 6 AES IN POSITIVE
PIN 7 GND
PIN 8 AES OUT NEGATIVE
PIN 9 NOT CONNECTED
A15 MODEM
Connector 9 pin D Male
PIN 1 MOD_DCD
PIN 2 MOD_RX
PIN 3 MOD_TX
PIN 4 MOD_DTR
PIN 5 GND
PIN 6 MOD_DSR
PIN 7 MOD_RTS
PIN 8 MOS_CTS
PIN 9 NC
AES Sync
I/O
Modem
