Service Manual CHAPTER 6 - THE SX-48 CONFIGURATOR July 24, 2008
SX-48 Page 27
All information concerning the flash, including a progress bar, can be observed in the application’s info
window. At any time this information can be highlighted and copied using <Ctrl-C>.
Connecting to SX-48 at 192.168.3.223
Got PING response from SX-48 at: 192.168.3.223
Preparing to upload flash
Reading Xilinx files:
File: C:\Program Files\Fairlight\FMC\Utils\Firmware\IOcntrl.hex
File: C:\Program Files\Fairlight\FMC\Utils\Firmware\MADI_CTRL.hex
File: C:\Program Files\Fairlight\FMC\Utils\Firmware\AOUT_CTRL.hex
File: C:\Program Files\Fairlight\FMC\Utils\Firmware\AES_CTRL.hex
File: C:\Program Files\Fairlight\FMC\Utils\Firmware\AES2_CTRL.hex
File: C:\Program Files\Fairlight\FMC\Utils\Firmware\AO_AES_Test.hex
File: C:\Program Files\Fairlight\FMC\Utils\Firmware\syncboard.hex
Sending Erase
Erase Completed
Sending Erase
Erase Completed
Sending Erase
Erase Completed
Programming Xilinx firmware:
File: C:\Program Files\Fairlight\FMC\Utils\Firmware\syncboard.hex
Flash Update Completed

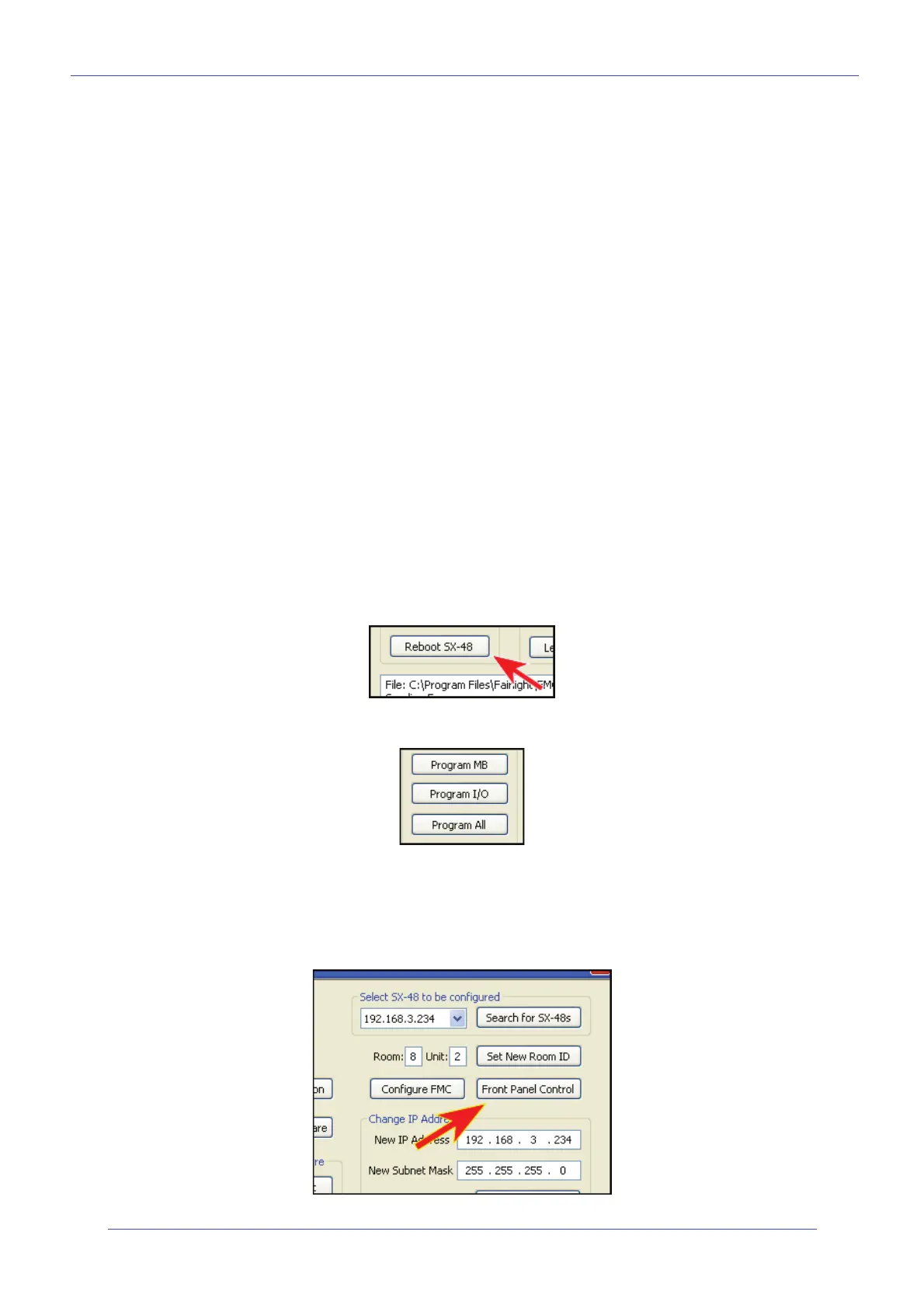

Please note that a Reboot is required in order for the upgrade to take effect. This can be
accomplished at any time by simply clicking on the <Reboot SX-48> button.
The Buttons Program MB, Program I/O, and Program All
SHOULD NOT BE USED, as these are reserved for Factory Testing here in Sydney
Front Panel Control
By Clicking on the <Front Panel Control> button,
