Service Manual CHAPTER 1 - INTRODUCTION July 24, 2008
SX-48 Page 8
Analog → MADI
Analog ← MADI
AES/EBU → MADI
AES/EBU ← MADI
Adding a Board

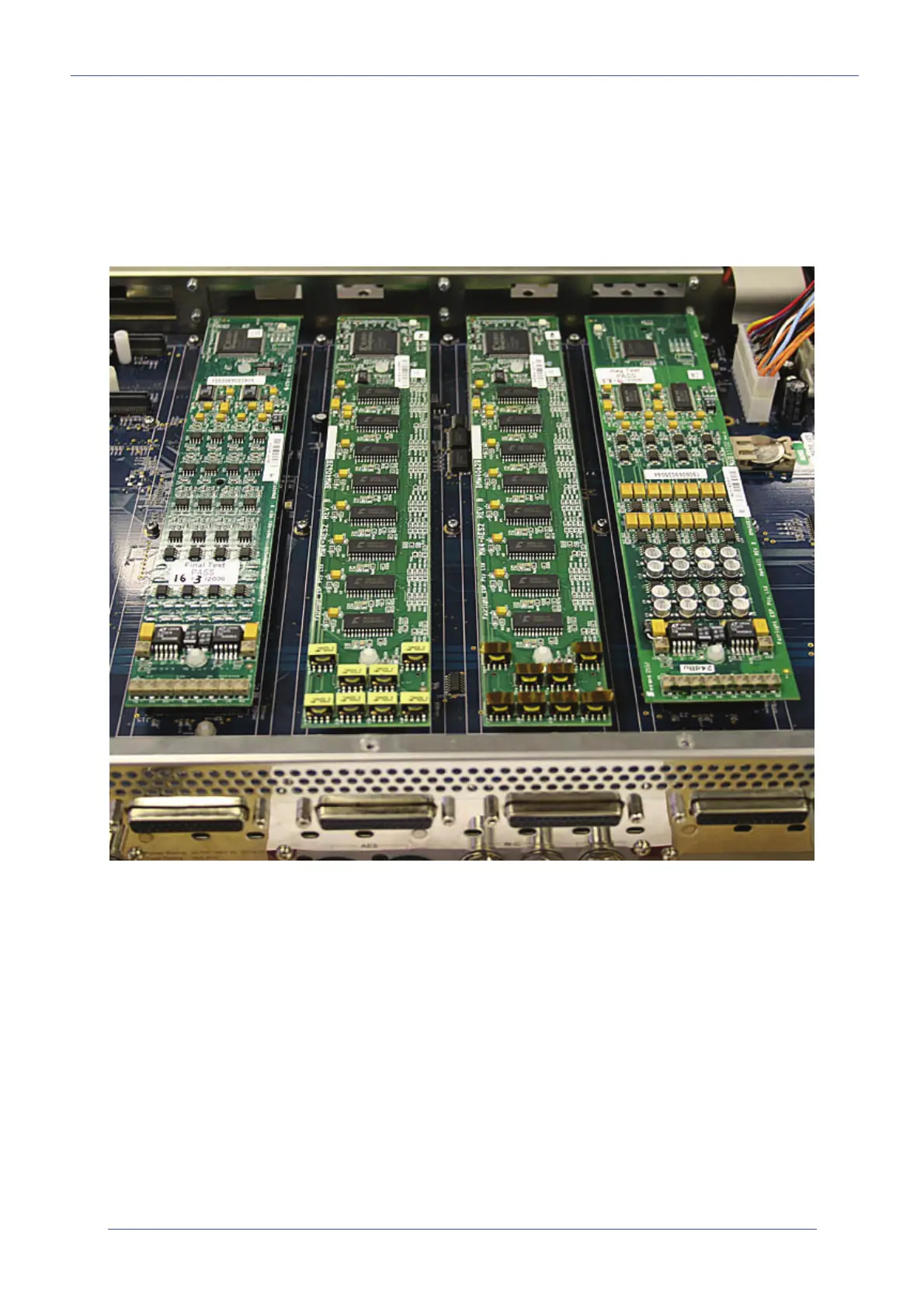

All boards are fitted using connectors that press together. Excessive force is not required. I/O boards
use white Teflon guides to locate easily.
Ensure that the Teflon posts are correctly lined up to the holes in the board, and that the connectors
are correctly lined up. Check orientation against the illustration above.
