15
On Model E161i there is a requirement for two separate power supplies.
The standard terminal arrangement is Single phase (2x 230V~).
On this model there are two independent terminal blocks for each separate supply this must
be wired as per the circuit diagram.

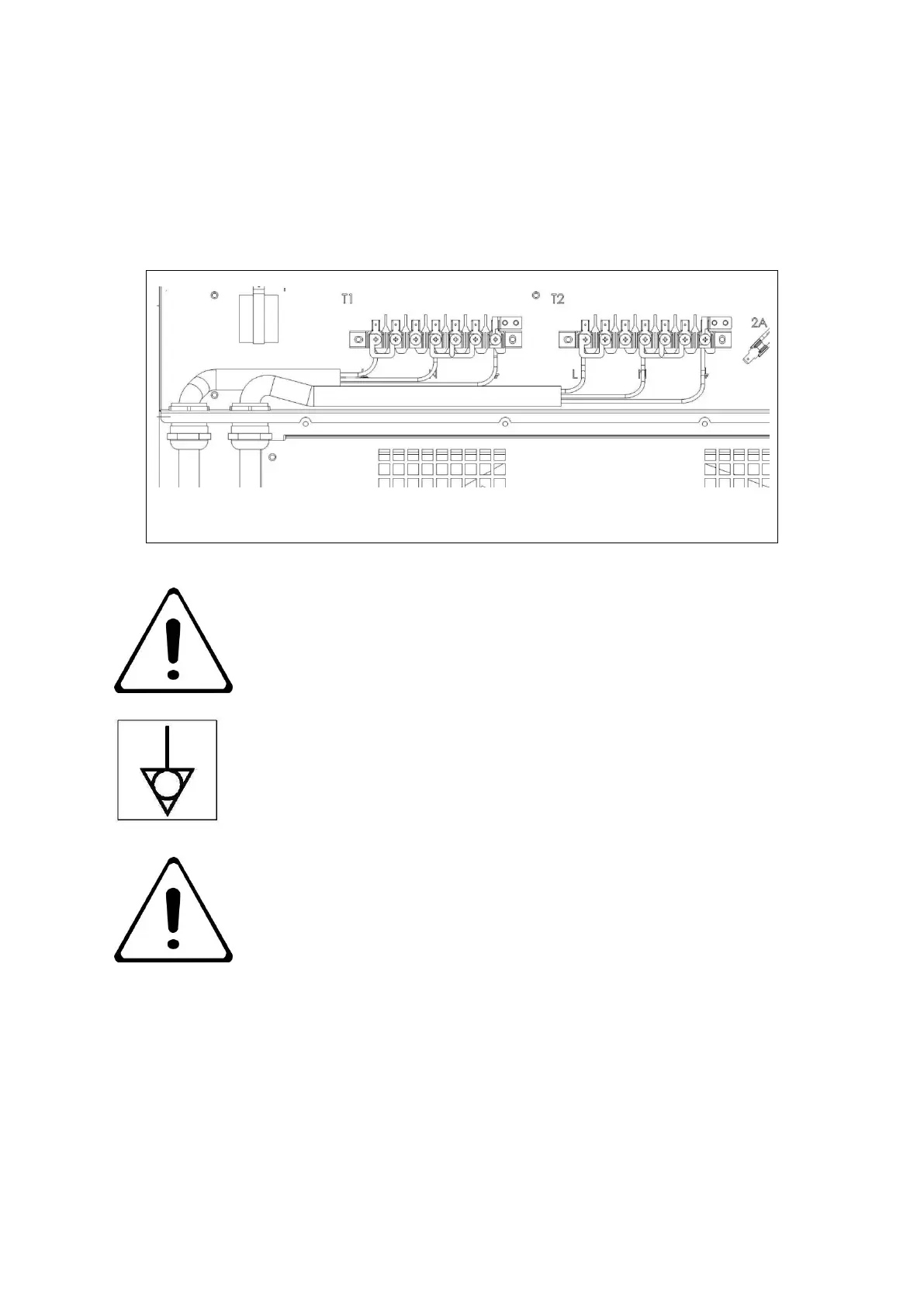

Guide / example of E161I single phase dual power supply layout.
THIS APPLIANCE MUST BE EARTHED
This appliance is also provided with a terminal for connection of an
external equipotential conductor. This terminal is an effective electrical
contact with all fixed exposed metal parts of the appliance, and shall
allow the connection of conductor having a nominal cross-section area
of up to 10mm². It is located at the rear of the unit and identified by the
following label and must only be used for bonding purposes.
MAINS INPUT CONNECTION CABLE IS NOT SUPPLIED;
SUITABLE CABLE WILL CONFORM TO CODE DESIGNATION IEC
60245-57.
