INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
28
Moving the Cooker
On no account try and move the cooker while it is
plugged into the electricity supply.
The cooker is very heavy, so take great care.
We recommend two people manoeuvre the cooker. Make
sure that the oor covering is rmly xed, or removed to
prevent it being disturbed when moving the cooker around.
To help you, there are two levelling rollers at the back and
two screw-down levelling feet at the front.
From the back tilt the cooker forward and remove the rear
half of the polystyrene base pack (Fig. 7.3). Repeat from the
front and remove the front half of the polystyrene base.
Lowering the Two Rear Rollers
To lower the rear rollers, rst t a 13 mm spanner or socket
wrench onto the hexagonal adjusting nut at the front of
the cooker (Fig. 7.4). Rotate the nut – clockwise to raise –
counter-clockwise to lower.
Make 10 complete (360°) turns clockwise. Make sure you
lower BOTH REAR ROLLERS.
Completing the Move
Unfold the rear edge of the cardboard base tray. Open the
grill door and right-hand oven door so that you can get a
good grip on the bottom of the fascia panel as you move the
oven (Fig. 7.5).
Carefully push the cooker backwards o the cardboard base.
Remove the base tray.
Position the cooker close to its nal position, leaving just
enough space to get behind it (Fig. 7.6).
DO NOT use the door handles or control knobs to
manoeuvre the cooker.
Levelling the Cooker
It is recommended that you use a spirit level on a shelf in one
of the ovens to check for level.
Place the cooker in its intended position. Take care not to
twist it within the gap between the kitchen units as damage
may occur to the cooker or units.
The front feet and rear rollers can be adjusted to level the
cooker. To adjust the height of the rear of the cooker use
a 13 mm spanner or socket wrench to turn the hexagonal
adjusting nuts at the front bottom corners of the cooker.
To set the front turn the feet bases to raise or lower.
Fitting the Stability Bracket and Chain
A stability bracket and chain MUST be tted when
the cooker is connected to a exible gas supply.
Unless properly installed, the cooker could be tipped by
leaning on the door. Injury might result from spilled hot
liquids or from the cooker itself.
IMPORTANT: The cooker must be set to the correct height
and levelled before the stability bracket is installed.
ArtNo.010-0004 Moving the cooker
ArtNo.070-0014 - Stability bracket - Wall fitting
Cooker
Stability bracket
Floor
3 mm min
Typical oor mounting
Cooker
Outer stability
bracket
Floor
Wall
3 mm min
Typical wall mounting

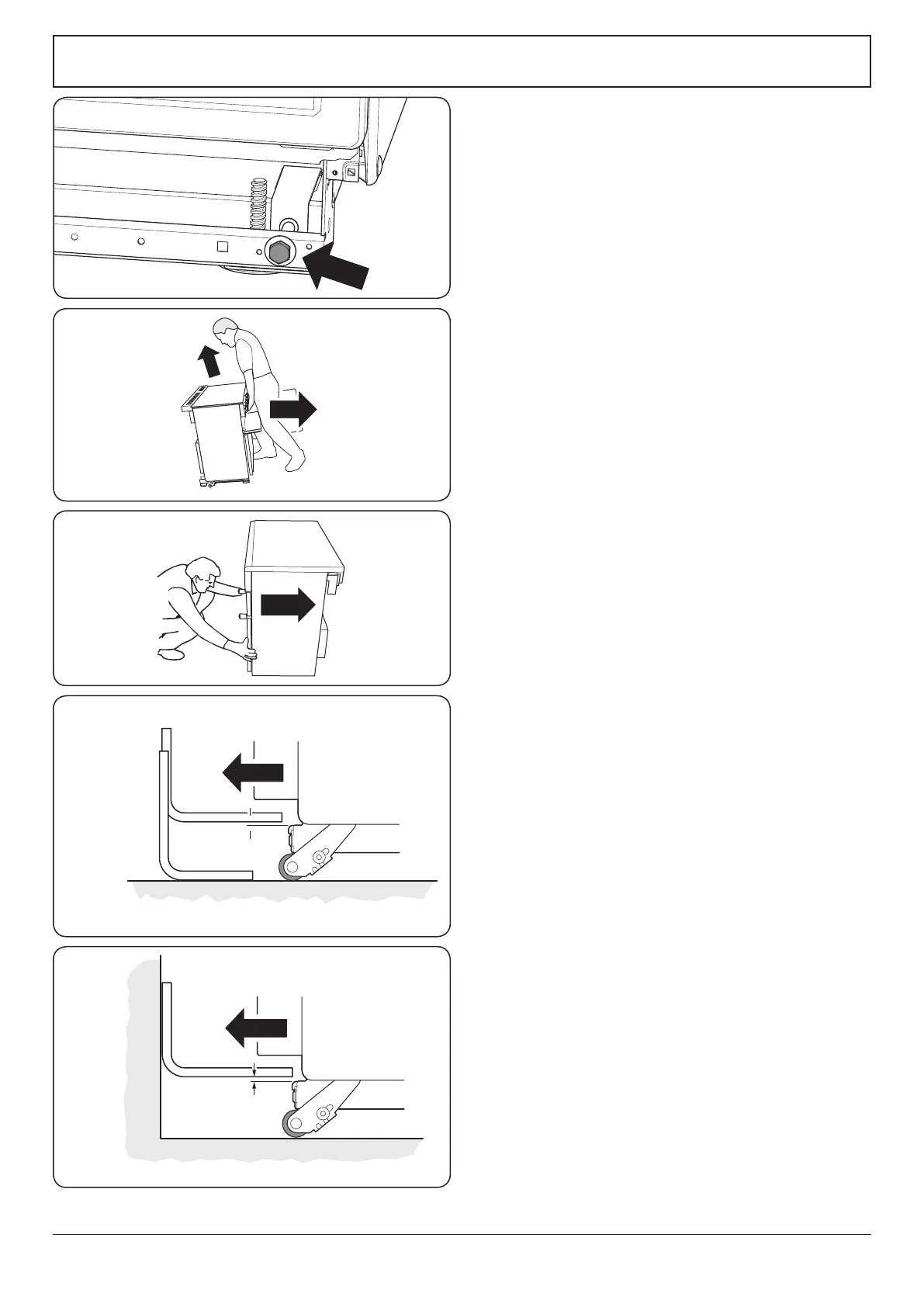

Fig. 7.4
Fig. 7.5
Fig. 7.6
Fig. 7.7
Fig. 7.8
To Next Page
