LCD Display Repositioning
WARNING: Refer the repositioning of the LCD display to a qualified electronic technician or
the Falcon Service Department. LIVE COMPONENTS ARE INSIDE THIS UPS AND
RISK OF ELECTRICAL SHOCK.
Prior to anyone starting to attempt the repositioning of the LCD display, SERVICE
PERSONNEL MUST FIRST disconnect the UPS line cord and power plug, remove
the battery fuse located on the UPS rear panel, disconnect any external battery
banks and let the UPS discharge for one hour.
The default LCD display mounting is for horizontal (Rackmount) viewing. To reorient the LCD display
for vertical (Free Standing) viewing, remove the left half of the front plastic bezel by unscrewing the
screws to the far left of the chassis. Next, remove the four screws securing the right plastic panel

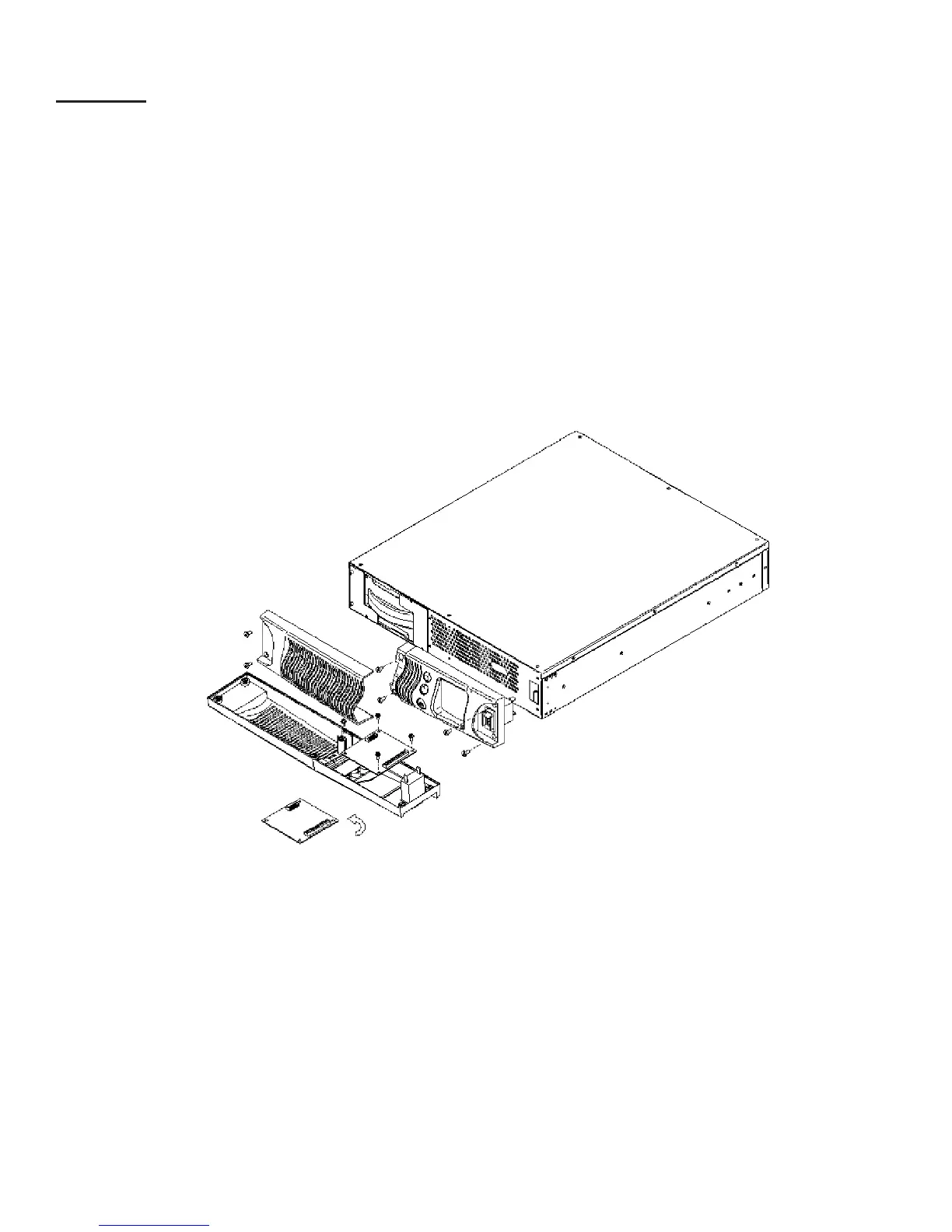

and pull the right panel forward evenly. Refer to the following figure, unscrew the LCD board and
rotate it 90 degrees, to the correct position for viewing. Use care when handling the LCD display and
associated cabling. Mount the front covers back and reinstall the screws.
SSG & HW Battery Bank Installation
(SSG1.5KRM-X internal battery, SSG2.2KRM-X & SSG3KRM-X standard battery bank and all SSG
extended battery banks)
Note:
Additional battery banks can be connected to the UPS to provide additional battery run time.
There are two models of extended battery banks available for the SSG Series. Falcon model number
SSGR is a universal battery bank without an internal charger. It may be added to any SSG 1.5-3kVA
models. For 2.2-3kVA models, the addition of this type of extended battery bank will cause the stat-
ed recharge time to multiply by the number of battery banks added. The addition of more than three
SSGR battery banks is not recommended. Use the SSGR-1 model universal extended battery mod-
els instead, as it incorporates internal battery chargers to assure proper battery recharging and
greatly reduces the amount of battery recharge time.
13
