Traffic-Control
EN
Program 9

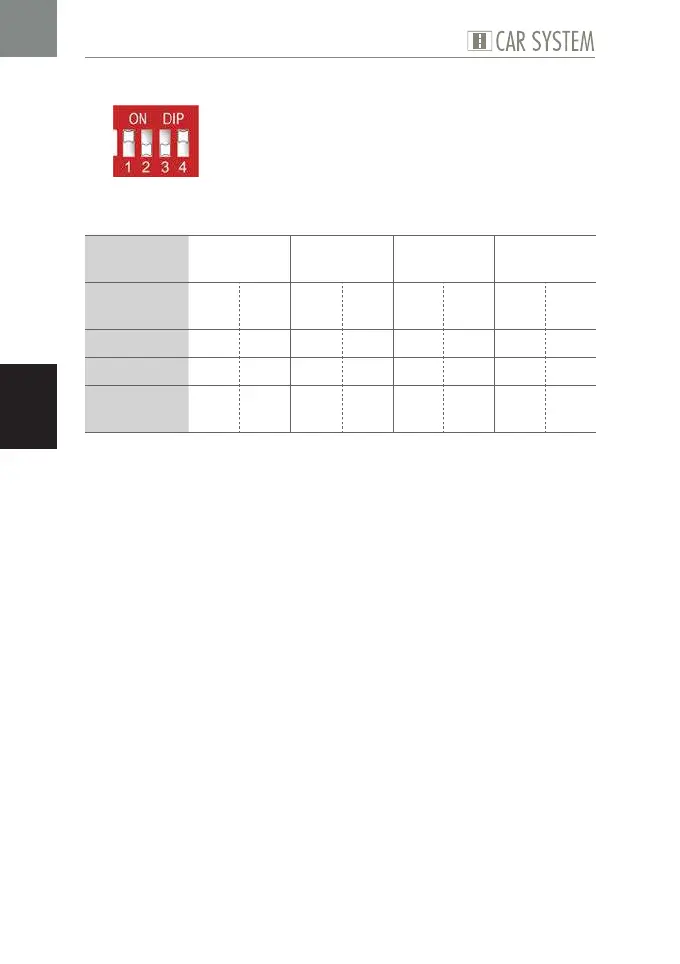

Fig. 14: DIP configuration Program 9
This program allows to control up to four diagonal parking bays.
Possible use Parking
bay 1
Parking
bay 2
Parking
bay 3
Parking
bay 4
Sensor/But-
ton at input
E1 E2 E3 E4 E5 E6 E7 E8
activates AB P/FR AB P/FR AB P/FR AB P/FR
at output A1 A2 A3 A4 A5 A6 A7 A8
for the
period of
1 s 2 s 1 s 2 s 1 s 2 s 1 s 2 s
Table 14: Program 9
X
Set the DIP as required, see Fig. 14.
X
Connect the components, see Table 14.
