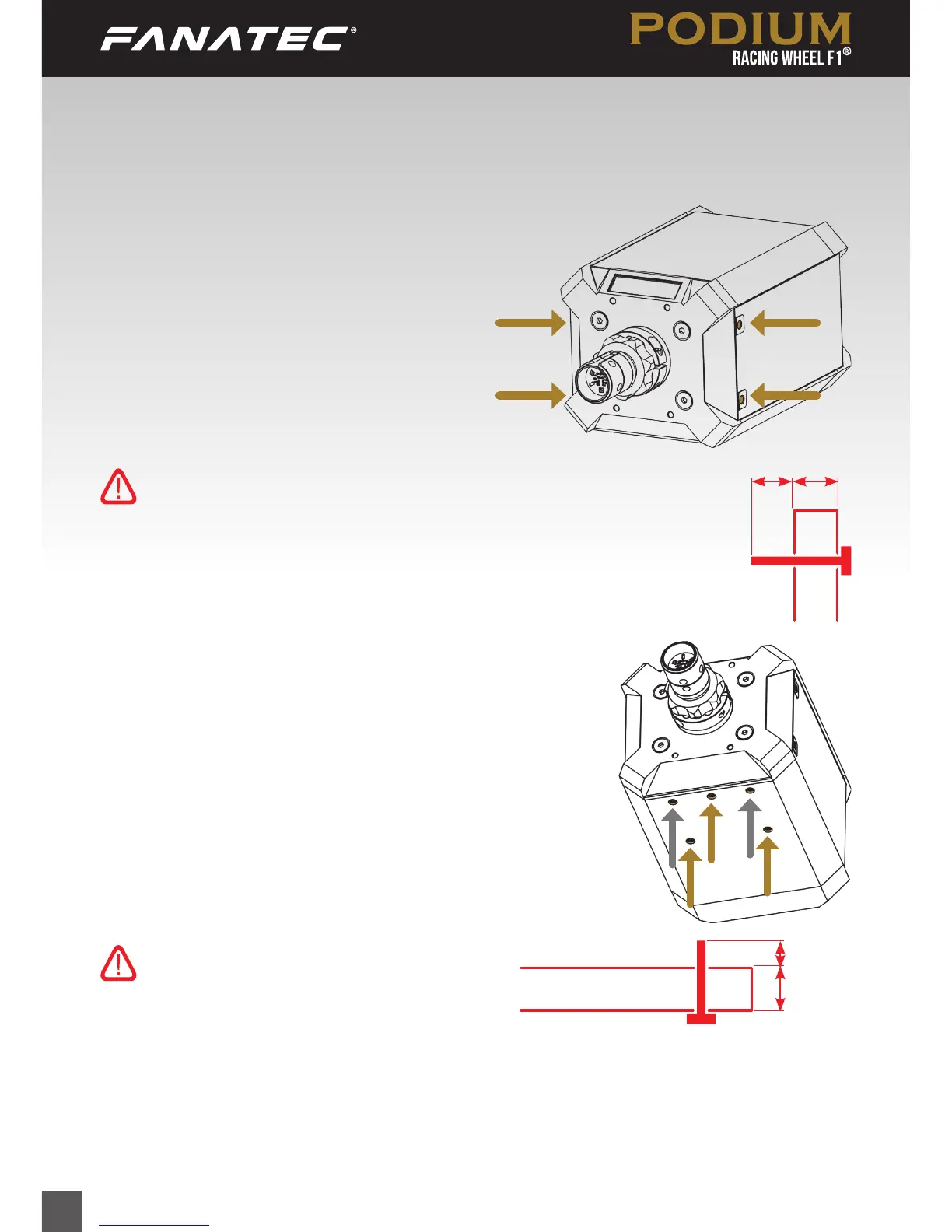

6.3 Hard-mounting the Podium Wheel Base DD1 PS4
TM
The Podium Wheel Base DD1 PS4
TM
offers several mounting options (shown
below).
IMPORTANT: Use only good quality
M6 bolts. Choose the bolt length so that
the thread does not reach more than 12
mm into the wheel base. Always use all three hard-mount points, this al-
lows a proper and stable installation and avoids damage!
IMPORTANT: Use only good quality M8 bolts. Choose
the bolt length so that the thread does not reach more than
20 mm into the wheel base. Always use all four hard-mount
points, this allows a proper and stable installation and
avoids damage!
To hard-mount the Podium Wheel Base DD1 PS4
TM
to a table or rig by bolts
please nd the printable drilling template in the download area of our website
www.fanatec.com.
Table
max 12mm
X
max 20mm
X
Side mounting:
On both sides of the wheel base are two
M8-threaded holes which are 20mm
deep. There you can mount the Podium
Mounting Brackets (not included):
Bottom mounting:
On the underside of the wheel base are ve
M6-threaded hole patterns which are 12mm deep for
Fanatec triangular mounting and square mounting
(78,4mm x 66mm):
Using the front centre hole with the two rear holes
(Fanatec Triangular mounting - marked with gold ar-
rows) is sufcient for use.
