Appendix 3 Interpretation of Wiring Connection between F2000 Series and Common THC
130
F2100T, F2200T, F2300 T (A/B), F2500 T (A/B), F2600T:
F5 (Diagnose), F8 (System Def), F3 (define), input password: 1396.

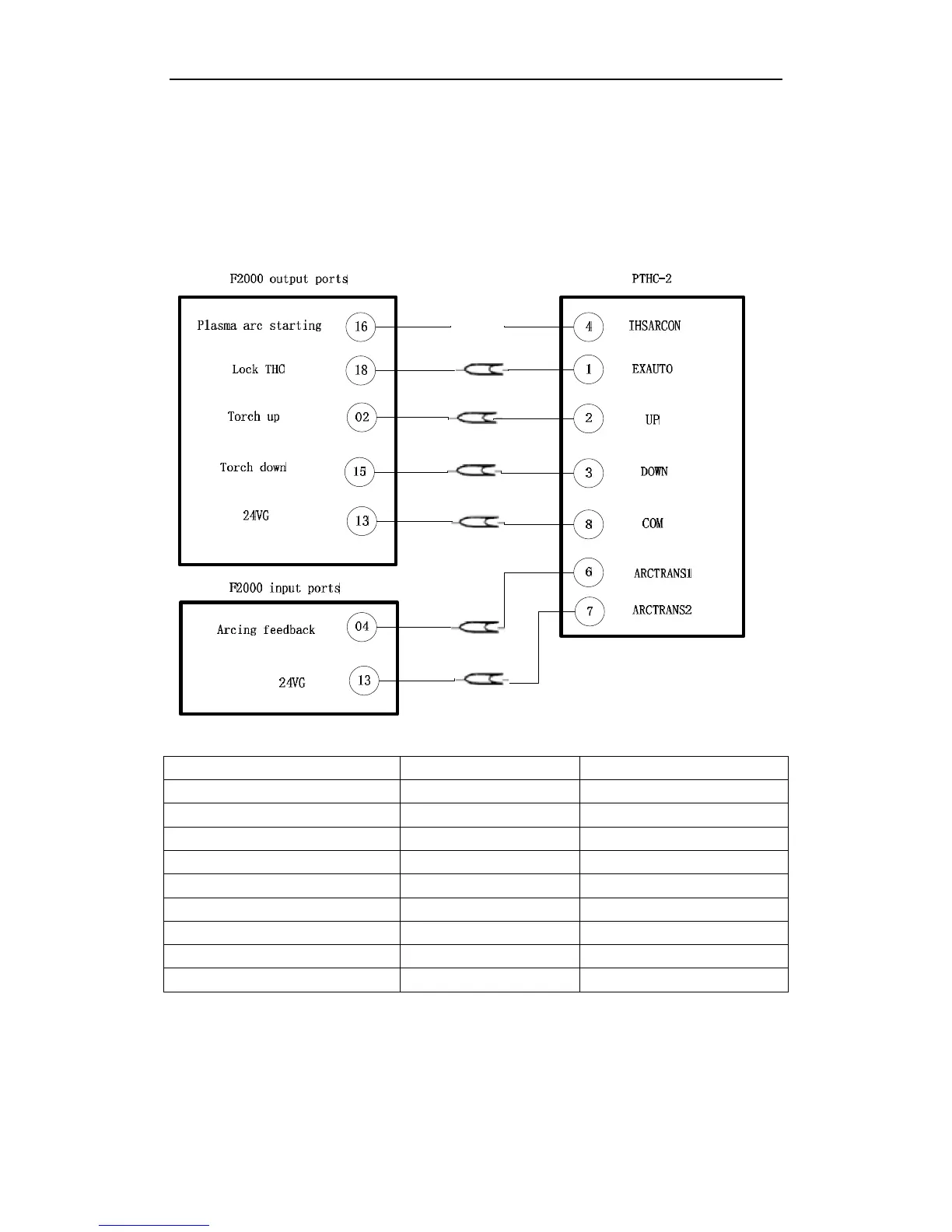

A3.5 Connection with PTHC-2
Plasma parameter Range of value Recommended value
Delay Before Arc 0 0
Pierce time 0 0
Torch up time 0-3 3
Arcing Check Time: 5-30 30
Position check Time: 0 0
Speed to lock THC 90-100 95
Distance to lock THC 0-15 10
Lose arc delay 0-1 0.5
Watch arc enable Yes Yes
The method of setting parameter:
F2100B, F2200B, F2300 A/B, F2500 A/B, F2600:
F4 (Setups), F3 (Plasma).
