How to Assemble Your Ceiling Fan (continued)
NOTE:
All set screws must be checked, and retightened
where necessary, before installation.

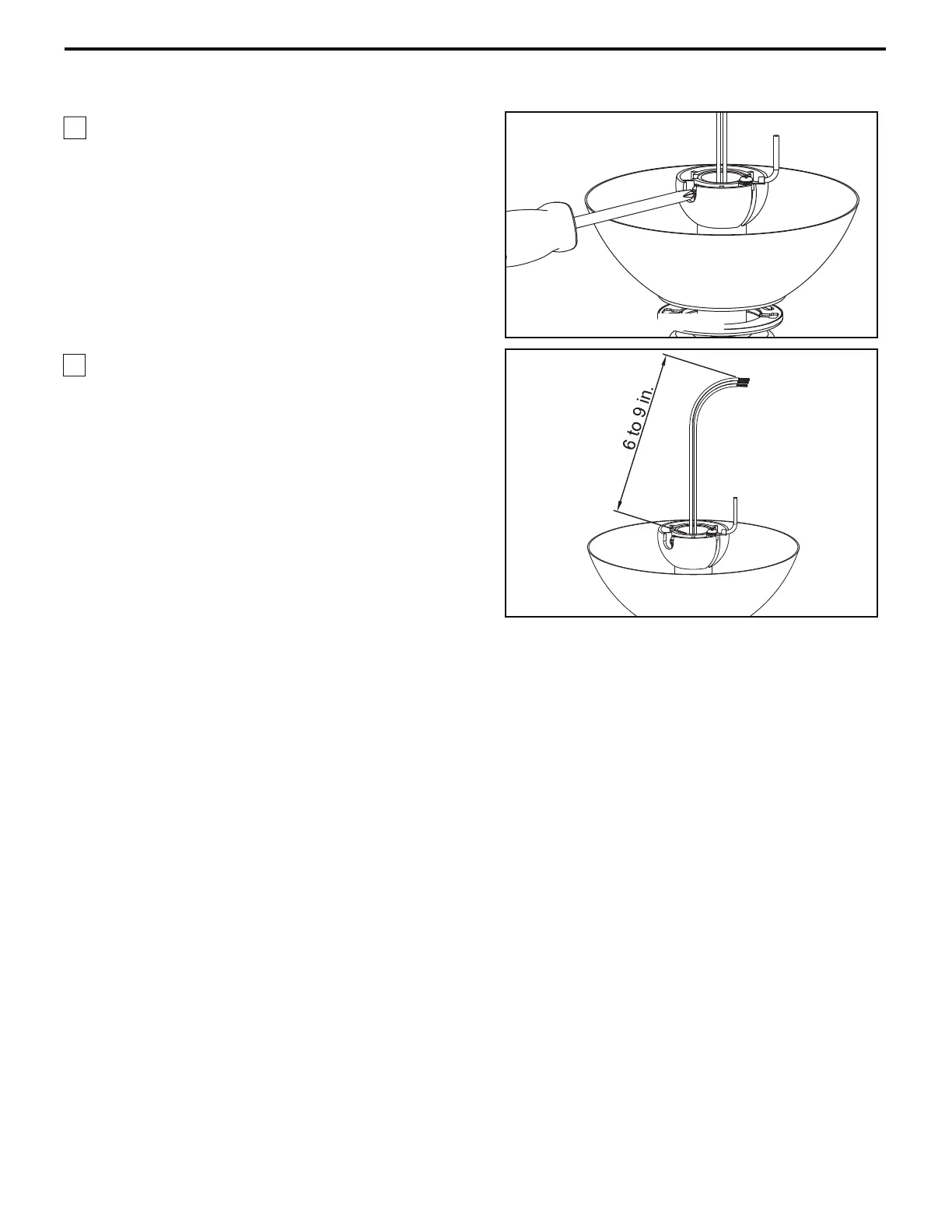

Figure 6
Figure 7
7. Cut off excess lead wire approximately 6 to 9 inches
above the top of the downrod. Strip insulation off
1/2 inch from the end of each lead wire. (Figure 7)
6. Reinstall the hanger ball on the downrod as follows.
Route the black, white and blue wires through the
hanger ball. Position the pin through the two holes in
the downrod and align the hanger ball so the pin is
captured in the groove in the top of the hanger ball.
Pull the hanger ball up tight against the pin. Securely
tighten the set screw in the hanger ball. A loose set
screw could create fan wobble. (Figure 6)
