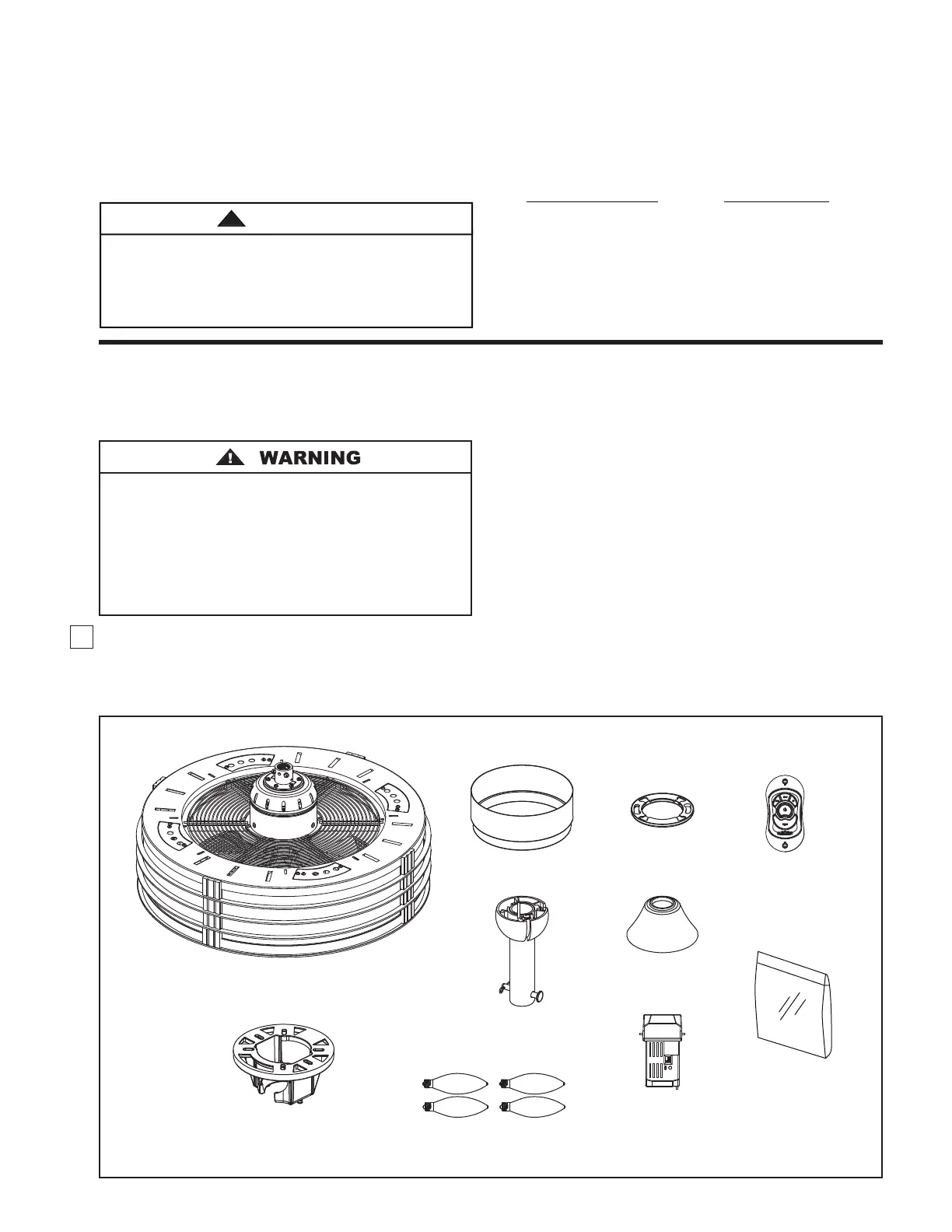

1. Check to see that you have received the following parts:
NOTE:
If you are uncertain of part description, refer to
exploded view illustration.
4
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each step is completed, place a check
mark in the box. This will insure that all steps have been completed and will be helpful in finding your place should
you be interrupted.
Do not install or use fan if any part is damaged or
missing. This product is designed to use only those
parts supplied with this product and/or any
accessories designated specifically for use with this
product by Fanimation. Substitution of parts or
accessories not designated for use with this product
by Fanimation could result in personal injury or
property damage.
• Fan Motor Assembly
• Hanger Bracket Assembly
• Downrod/Hanger Ball Assembly
• Ceiling Canopy
• Canopy Screw Cover Assembly
• Motor Coupling Cover Assembly
• Hand Held Remote
• Receiver Unit
• Bulbs
• Hardware bags:
– Phillips Screwdriver, 4˝
– Four Wire Connectors
Hanger Bracket
Assembly
Motor Coupling
Cover Assembly
Receiver
Unit
Fan Motor
Assembly
Hardware Bag
Hand Held
Remote
Bulbs
Canopy Screw
Cover Assembly
This manual is designed to make it as easy as possible for you to assemble,
install, operate and maintain your ceiling fan
Tools Needed for Assembly
• One Phillips head screwdriver
• One stepladder
• Three wire connectors (supplied)
Installed Wire Length
Wire Size A.W.G.
Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 10). If you
feel you do not have enough wiring knowledge or
experience, have your fan installed by a licensed
electrician.
WARNING
!
• One wire stripper
Up to 50 ft. 14
50-100 ft.
12
• One 1/4” blade
screwdriver
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be a
3-conductor (2-wire with ground) of the following size:
NOTE:
Place the parts from the loose parts bags in a small
container to keep them from being lost. If any parts are
missing contact your local retailer.
Ceiling Canopy
Downrod/
Hanger Ball Assembly
To Next Page
