How to Operate Your Ceiling Fan

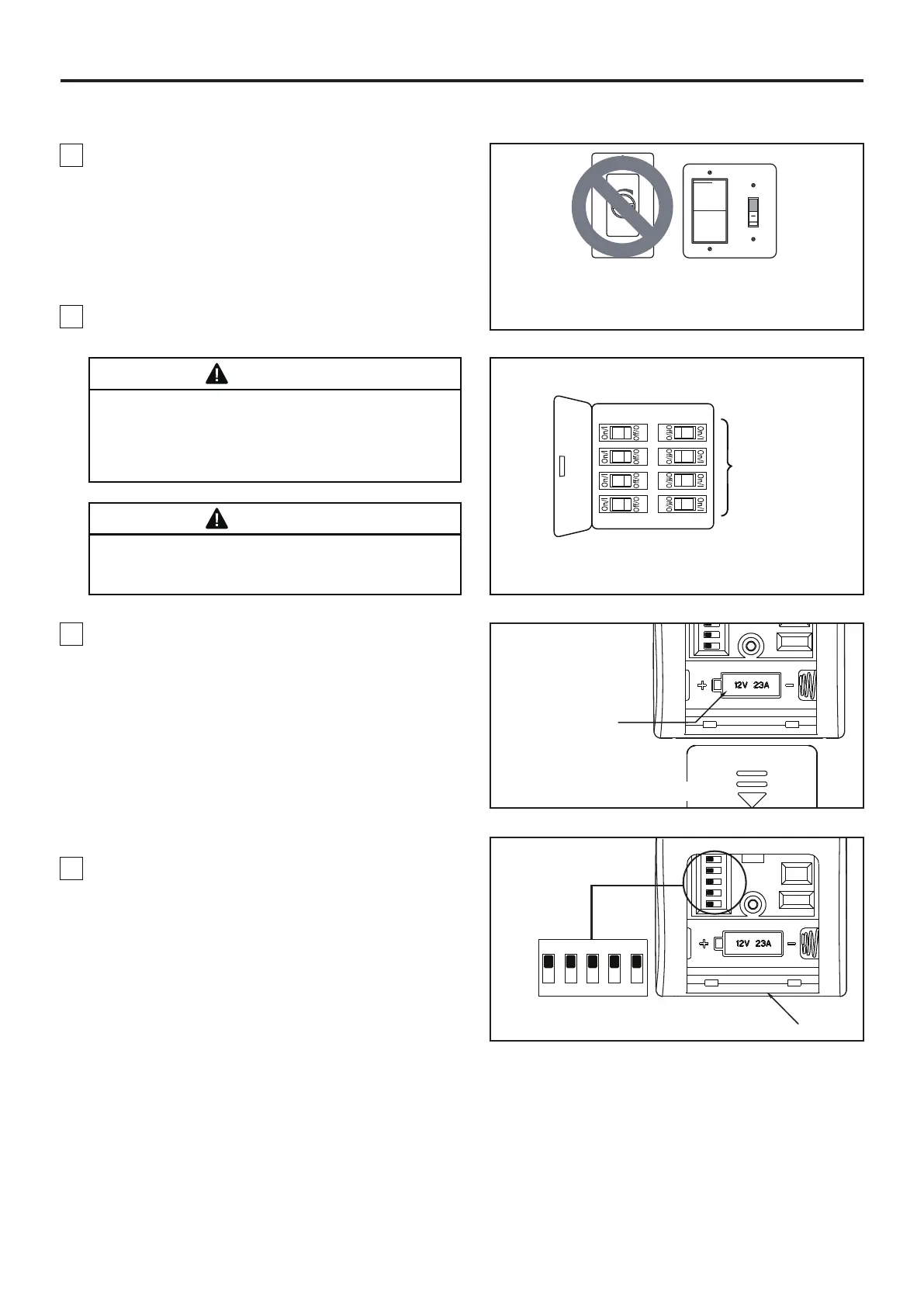

Figure 1
For illustrative purposes only-not
intended to cover all types of controls
1. IMPORTANT: Using a full range dimmer switch (not
included) to control fan speed will damage the fan. To
reduce the risk of fire or electrical shock, do not use a
full range dimmer switch to control the fan speed.
(Figure 1)
Figure 2
Main Fuse Box
2. Restore electrical power to the outlet box by turning
the electricity on at the main fuse box. (Figure 2)
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until the blades are in place. Noise and fan damage
could result.
WARNING
Do not operate this fan with a variable (Rheostat) wall
controller or dimmer switch. Doing so could result in
damage to the ceiling fan's remote control unit.
3. To make fan operational, install 23A/12V battery
(included) in hand-held remote transmitter, with fan
power off. Then follow the remote code setting process.
(If not used for long periods of time, remove battery to
prevent damage to transmitter). Store the remote away
from excessive heat or humidly. (Figure 3)
NOTE: The remote unit has 32 different code
combinations. To prevent possible interference from
or to other remote units, simply change the
combination code in the remote and receiver.
12V 23A
Battery (1 pcs)
Figure 3
4. To set the remote code in the same positions as
the receiver, use a small screwdriver or ball point pen
(neither included) to slide dip switches firmly up or
down. (Figure 4)
NOTE: Factory setting is all up. Do not use this
position.
Figure 4
Remote
Dip Switch
ON DIP
1 2 3 4 5
