Upper Housing
Cover
Motor Coupler
Washer
Motor Coupler
Washer
7

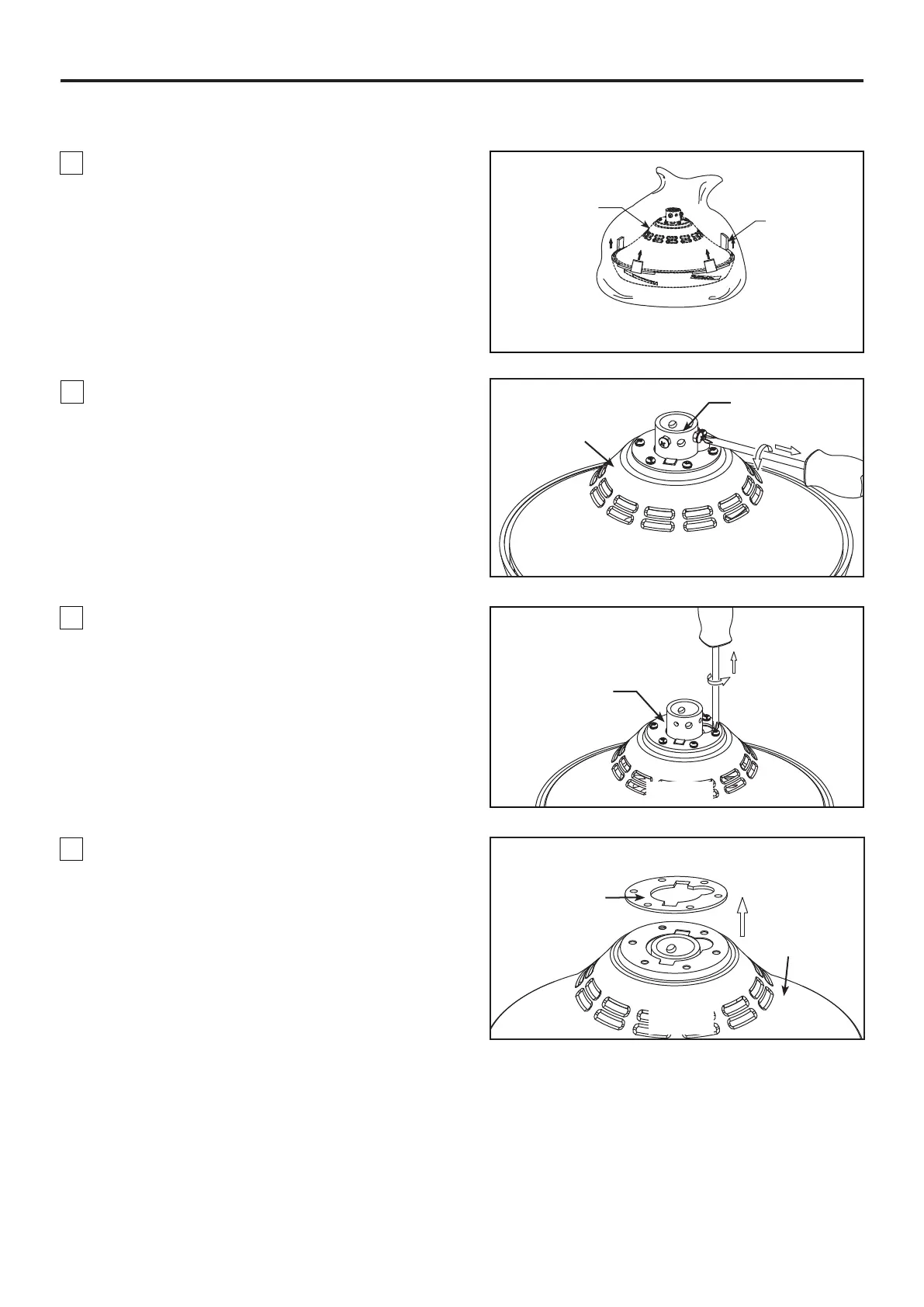

How to Assemble Your Ceiling Fan Blades
1. Remove the four stabilizer tabs and plastic bag
from the motor. Discard the stabilizer tabs. (Figure 1)
Figure 1
Motor
Assembly
Stabilizer
Tabs
2. Remove the two preassembled screws of the
downrod support from the motor assembly then retain
the screws for How to Assemble Your Ceiling Fan,
Step 4. (Figure 2)
Figure 2
3. Remove the six preassembled screws of the motor
coupler washer from the motor assembly, then retain
the screws for Step 7. (Figure 3)
4. Remove the motor coupler washer and upper
housing cover from the motor assembly. (Figure 4)
Figure 3
Figure 4
Motor Assembly
Downrod Support
To Next Page
