3/16˝-24 Screw with
Fiber Washer
(3 per blade)
Blade
Motor Assembly
8
5. Slide the blade through the slot in the motor
assembly and position blade over the motor assembly
with threaded posts showing. Make sure the bottom
edge of the blade is fully seated against the flywheel
of motor assembly. Tighten washer-head screws with
fiber washers to secure the blade to the flywheel of
motor assembly. (Figure 5)
HARDWARE USED:
x 15
x 15
3/16”-24
Washer Head Screws
Fiber Washers
WARNING
To reduce the risk of personal injury, do not bend the
blades when installing, balancing or cleaning the fan.
Do not insert foreign objects in between the rotating
blades.
6. Re-assemble the upper housing cover and motor
coupler washer as shown. (Figure 6)
7. Securely tighten the six screws that were previously
removed in Step 3 on the motor assembly.
(Figure 7)
Motor
Assembly

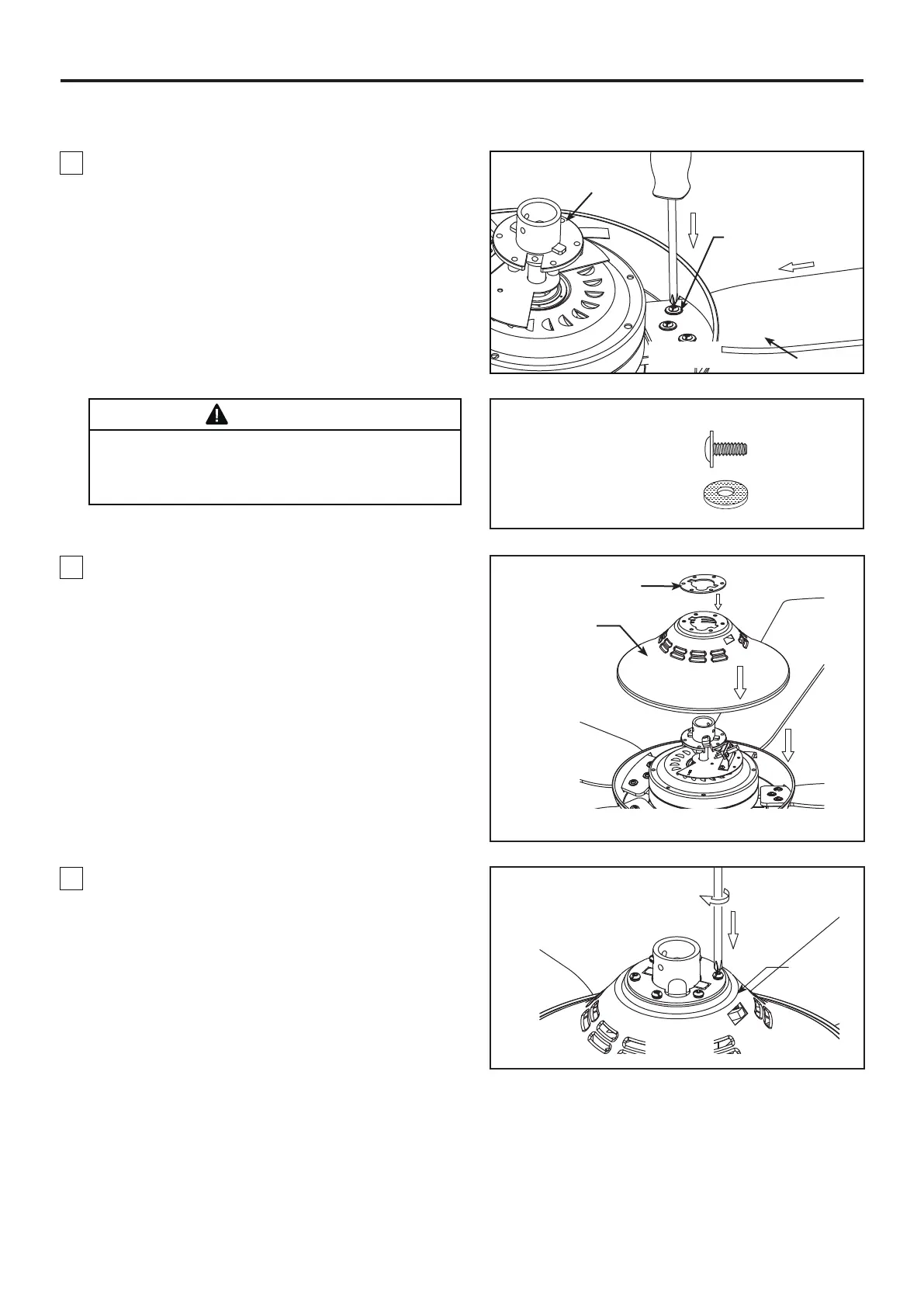

How to Assemble Your Ceiling Fan Blades (Continued)
Figure 6
Figure 5
Motor Coupler
Washer
Upper Housing
Cover
Figure 7
To Next Page
