How to Assemble Your Light Kit (continued)
Plastic Cap
Assembly
6. Remove the three screws in the upper LED plate
assembly and retain the screws for later. (Figure 6)
8B .
(Option B--for use with plastic cap)
If you want to install the plastic cap and not the light kit.
Assemble the plastic cap to the light kit assembly by
twisting in a clockwise direction. (Figure 8B)
NOTE:
If you have installed your fan with the plastic cap,
skip steps 9 and 10.
10. Secure the glass to light kit assembly by twisting
in a clockwise direction. Do not over-tighten. (Figure 10)
8A. (Option A--for use with light kit)
Connect the 2 single-pin connectors from the upper LED
plate assembly to the 2 single-pin connectors from lower
LED plate
assembly. (Figure 8A)
To reduce the risk of electric shock, disconnect the
electrical supply circult to the fan before installing
light kit.
CAUTION
9. Assemble the lower LED plate assembly to the upper
LED plate assembly using the preousily removed screws
and securely tighten all three screws. (Figure 9)
The light source is designed for this specific
application and can overheat if serviced by untrained
personnel. If any servicing is required, the product
should be returned to an authorized service facility
for examination or repair.
CAUTION
Light Kit
Assembly
Glass
Upper LED
Plate Assembly
Lower LED Plate
Assembly
Figure 9
Figure 10
Upper LED Plate
Assembly
Upper LED
Plate Assembly
Lower LED Plate
Assembly
7. If you want to install the light kit, skip the step
Assemble the light kit wire cover to the
upper LED
plate
assembly using the preousily removed screws and
securely tighten all three screws. (Figure 7)
Upper LED Plate
Assembly

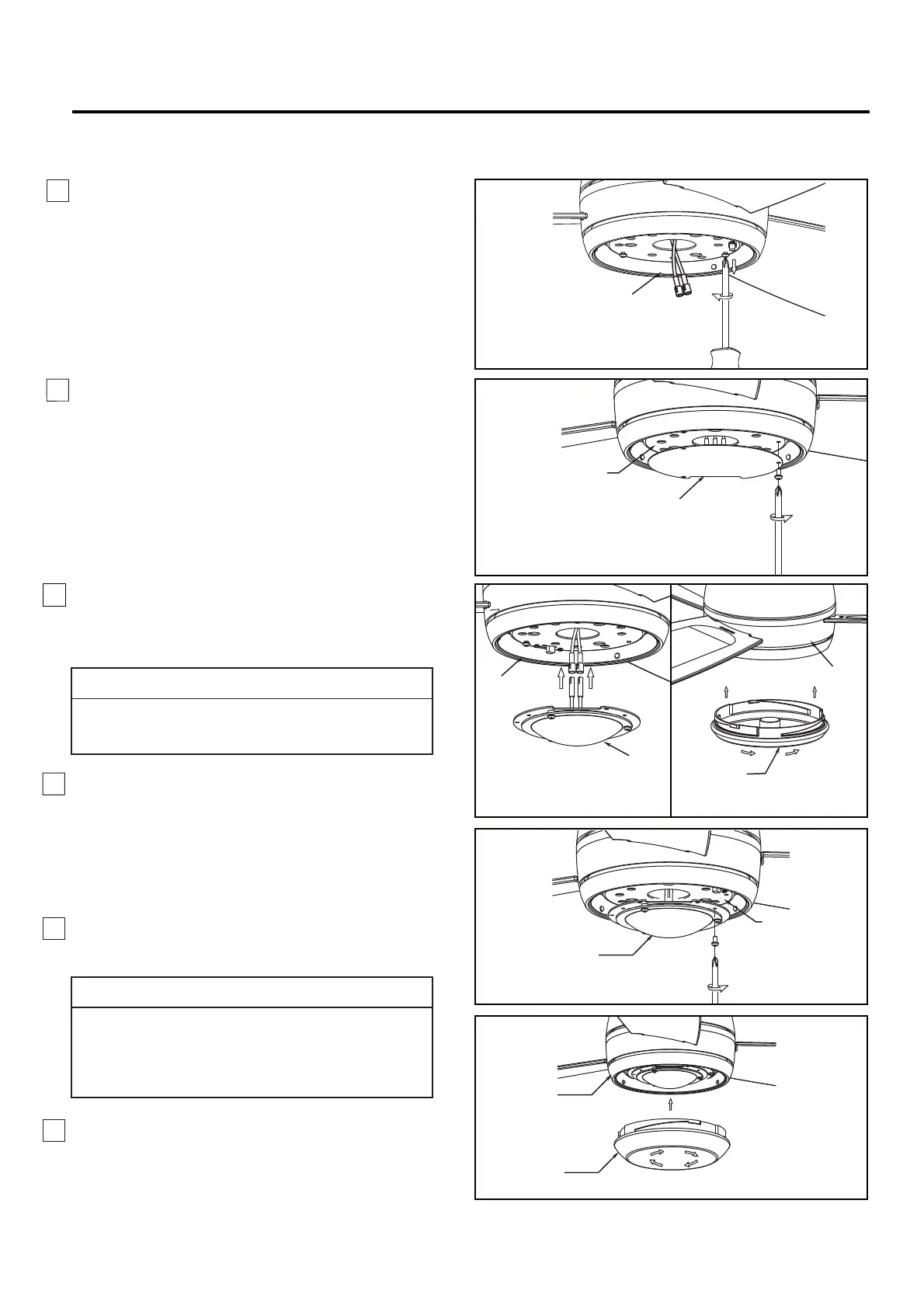

Figure 6
Figure 7
Figure 8A Figure 8B
Light Kit Wire Cover
Light Kit Assembly
To Next Page
